Softmax Function and Probability Simplex¶

Definition¶

The softmax function maps a vector of \(C\) real-valued logits \(\mathbf{z}=(z_1,\ldots,z_C)\) to a probability distribution:

\[ \operatorname{softmax}(\mathbf{z})_c = \frac{e^{z_c}}{\sum_{c'=1}^{C}e^{z_{c'}}}, \qquad c=1,\ldots,C \]

Properties¶

Non-negative: Every output is strictly positive.
Sums to one: \(\sum_c\operatorname{softmax}(\mathbf{z})_c = 1\).
Monotone: A larger logit \(z_c\) produces a larger probability.
Shift invariance: \(\operatorname{softmax}(\mathbf{z}+\alpha\mathbf{1}) = \operatorname{softmax}(\mathbf{z})\) for any scalar \(\alpha\).

Property 4 is exploited for numerical stability: before exponentiation we subtract \(\max_c z_c\).

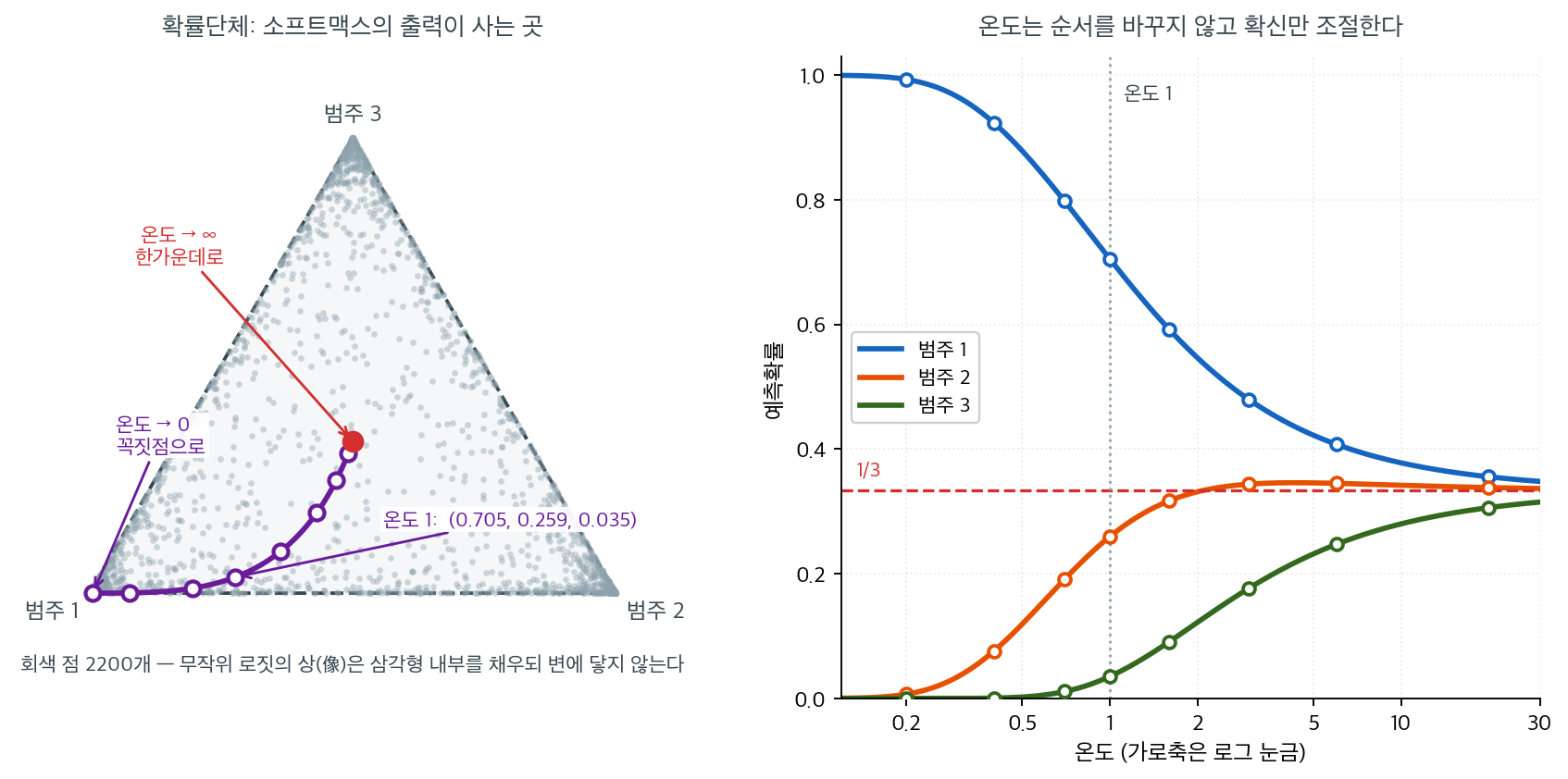

The Probability Simplex¶

The output of softmax lies on the probability simplex

\[ \Delta^{C-1} = \Bigl\{\mathbf{p}\in\mathbb{R}^C : p_c\ge 0,\; \sum_c p_c = 1\Bigr\} \]

For \(C=3\) this is a triangle in 3D space; for \(C=10\) (MNIST) it is a 9-dimensional simplex.

Softmax as a Generalization of the Sigmoid¶

When \(C=2\) with logits \((z_1,z_2)\):

\[ \operatorname{softmax}(\mathbf{z})_1 = \frac{e^{z_1}}{e^{z_1}+e^{z_2}} = \frac{1}{1+e^{-(z_1-z_2)}} = \sigma(z_1-z_2) \]

Thus the binary softmax is exactly the sigmoid applied to the difference of the two logits.

Temperature Scaling¶

A common variant introduces a temperature parameter \(\tau>0\):

\[ \operatorname{softmax}(\mathbf{z}/\tau)_c = \frac{e^{z_c/\tau}}{\sum_{c'}e^{z_{c'}/\tau}} \]

As \(\tau\to 0\) the distribution collapses to a point mass on \(\arg\max_c z_c\) (hard decision); as \(\tau\to\infty\) it approaches the uniform distribution. Temperature scaling is used in model calibration and in generative models (e.g. controlling the "creativity" of language models).

NumPy Implementation¶

import numpy as np

def softmax(z):
    """Numerically stable softmax."""
    z_shifted = z - np.max(z, axis=1, keepdims=True)
    exp_z = np.exp(z_shifted)
    return exp_z / np.sum(exp_z, axis=1, keepdims=True)

The np.max subtraction prevents overflow in np.exp without changing the result (shift invariance).
