Multinomial Logistic Regression

From Binary to Multiclass

Logistic regression models a binary response. When the response has \(C>2\) categories, we generalize to multinomial logistic regression (also called softmax regression). Instead of a single weight vector \(\boldsymbol{\theta}\), we learn a weight matrix \(\mathbf{W}\) and a bias vector \(\mathbf{b}\) that map each input to a vector of \(C\) real-valued scores (logits), one per class.

Model Architecture (Single Layer)

For a dataset with \(n\) observations and \(p\) features, the single-layer softmax model computes:

\[ \underset{n \times C}{\mathbf{Z}} = \underset{n \times p}{\mathbf{X}}\; \underset{p \times C}{\mathbf{W}} + \underset{1 \times C}{\mathbf{b}} \]

\[ \underset{n \times C}{\hat{\mathbf{Y}}} = \operatorname{softmax}(\mathbf{Z}) \]

where each row of \(\hat{\mathbf{Y}}\) is a probability distribution over the \(C\) classes.

Two-Layer Model (Hidden Layer + Softmax)

Adding a hidden layer with the logistic activation gives a shallow neural network — the architecture used in the MNIST examples below.

\[ \begin{aligned} \underset{n \times 100}{\mathbf{Z}^h} &= \underset{n \times 784}{\mathbf{X}}\; \underset{784 \times 100}{\mathbf{W}^h} + \underset{1 \times 100}{\mathbf{b}^h} \\[4pt] \underset{n \times 100}{\mathbf{H}} &= \operatorname{logistic}\!\bigl(\mathbf{Z}^h\bigr) \\[4pt] \underset{n \times 10}{\mathbf{Z}^o} &= \underset{n \times 100}{\mathbf{H}}\; \underset{100 \times 10}{\mathbf{W}^o} + \underset{1 \times 10}{\mathbf{b}^o} \\[4pt] \underset{n \times 10}{\hat{\mathbf{Y}}} &= \operatorname{softmax}\!\bigl(\mathbf{Z}^o\bigr) \end{aligned} \]

The logistic (sigmoid) activation is

\[ \operatorname{logistic}(x) = \frac{1}{1+e^{-x}}, \qquad \operatorname{logistic}'(x) = \operatorname{logistic}(x)\bigl(1-\operatorname{logistic}(x)\bigr) \]

MNIST Data

The MNIST dataset is the canonical benchmark for this model family:

\[ \mathbf{X} \in \mathbb{R}^{n\times 784},\quad \mathbf{Y} \in \{0,1\}^{n\times 10}\;\text{(one-hot)},\quad \mathbf{y}_{\text{cls}} \in \{0,\ldots,9\}^n \]

Each image is \(28\times 28\) pixels, flattened to a 784-dimensional vector. Pixel values are scaled to \([0,1]\).

Relationship to Binary Logistic Regression

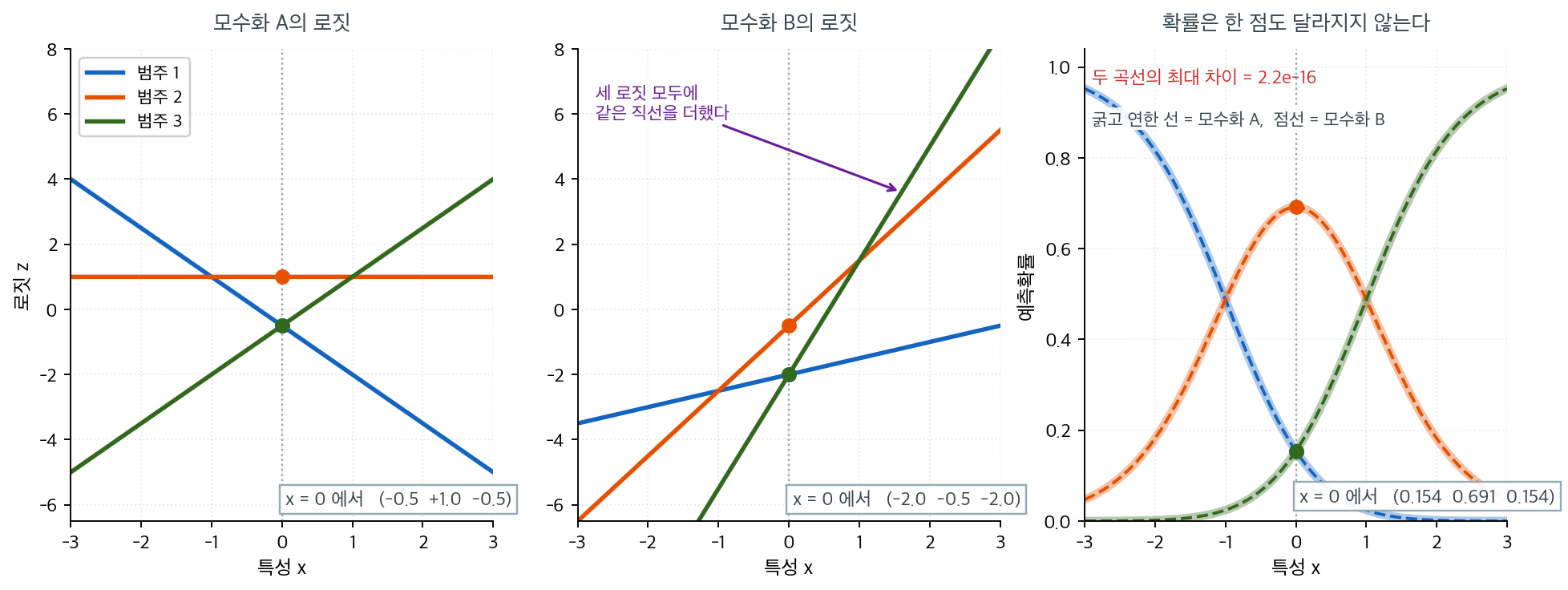

When \(C=2\), multinomial logistic regression reduces to ordinary logistic regression. The two-class softmax produces the same decision boundary as the sigmoid model because the log-ratio of class probabilities is linear in the features:

\[ \log\frac{P(Y=1\mid\mathbf{x})}{P(Y=0\mid\mathbf{x})} = (\mathbf{w}_1-\mathbf{w}_0)^T\mathbf{x} + (b_1-b_0) \]
