MNIST Case Study

Overview

This section applies the theory from Chapters 13–14 to the MNIST handwritten digit dataset (60 000 training images, 10 000 test images, \(28\times 28\) pixels, 10 classes). We compare three model architectures of increasing complexity: a single linear layer, a two-layer network, and a simple CNN — all implemented in PyTorch.

---

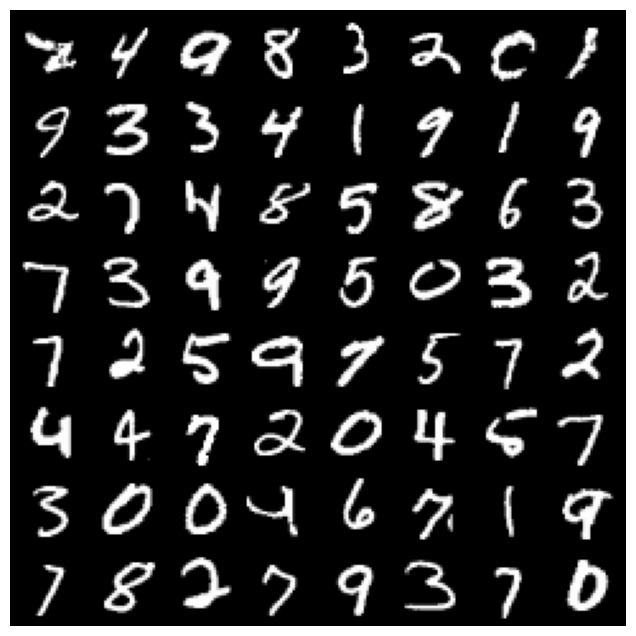

1 Visualizing the Data

import torch
import torchvision
from torchvision import transforms
import matplotlib.pyplot as plt

transform = transforms.ToTensor()
test_dataset = torchvision.datasets.MNIST(
    root='./data', train=False, download=True, transform=transform)
test_loader = torch.utils.data.DataLoader(
    test_dataset, batch_size=64, shuffle=True)

images, labels = next(iter(test_loader))
img_grid = torchvision.utils.make_grid(images, nrow=8, padding=2)

plt.figure(figsize=(8, 8))
plt.imshow(img_grid.permute(1, 2, 0), cmap='gray')
plt.axis('off')
plt.show()

---

2 Single Linear Layer (Softmax Regression)

The simplest model: flatten the image and apply one linear transformation followed by softmax (via CrossEntropyLoss).

import torch.nn as nn
import torch.optim as optim

class SimpleMNIST(nn.Module):
    def __init__(self):
        super().__init__()
        self.fc = nn.Linear(28 * 28, 10)

    def forward(self, x):
        return self.fc(x.view(x.size(0), -1))

model = SimpleMNIST()
criterion = nn.CrossEntropyLoss()
optimizer = optim.SGD(model.parameters(), lr=0.1)

for epoch in range(1, 6):
    model.train()
    for images, labels in train_loader:
        optimizer.zero_grad()
        loss = criterion(model(images), labels)
        loss.backward()
        optimizer.step()
    print(f"Epoch {epoch}, Loss: {loss.item():.4f}")

Typical test accuracy: ~92%.

---

3 Before vs After Training Comparison

Visualizing predictions on the same batch of images before and after training illustrates how the model transitions from random guessing to meaningful classification.

def show_images(images, true_labels, pred_labels, title):
    plt.figure(figsize=(10, 10))
    for i in range(64):
        plt.subplot(8, 8, i + 1)
        plt.imshow(images[i][0], cmap='binary')
        plt.axis("off")
        plt.title(f"T:{true_labels[i]} P:{pred_labels[i]}", fontsize=6)
    plt.suptitle(title, fontsize=16)
    plt.tight_layout()
    plt.show()

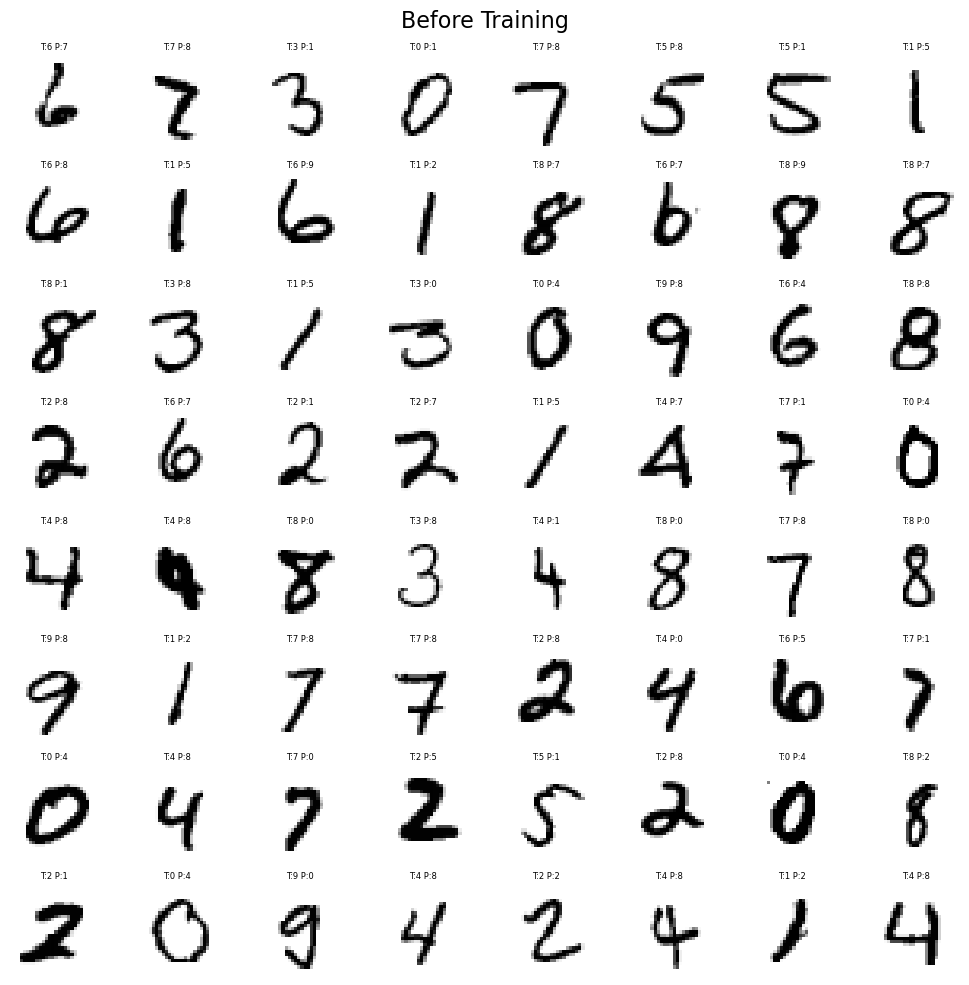

# Before training
with torch.no_grad():
    _, preds = torch.max(model_untrained(fixed_images), 1)
show_images(fixed_images, fixed_labels, preds, "Before Training")

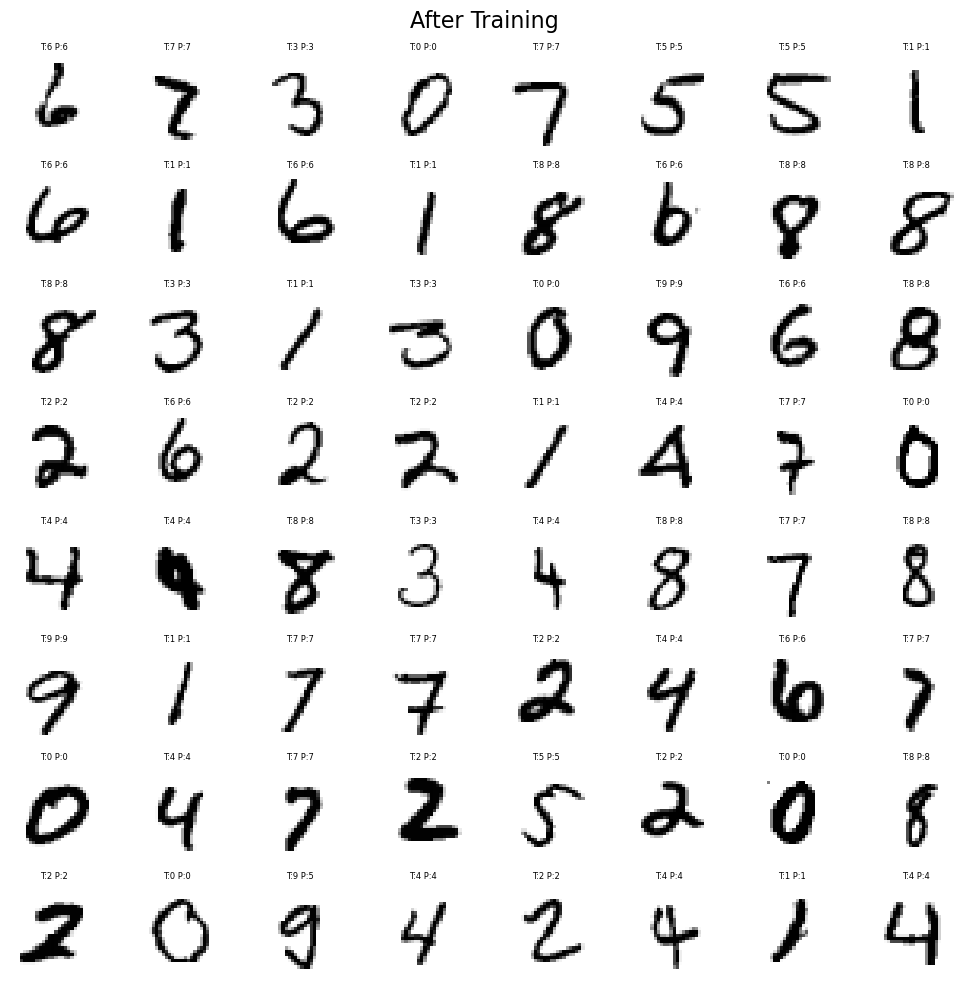

# After training
with torch.no_grad():
    _, preds = torch.max(model_trained(fixed_images), 1)
show_images(fixed_images, fixed_labels, preds, "After Training")

---

4 Simple CNN

Adding two convolutional layers dramatically improves accuracy.

import torch.nn.functional as F

class SimpleCNN(nn.Module):
    def __init__(self):
        super().__init__()
        self.conv1 = nn.Conv2d(1, 16, 3, padding=1)  # → 16×28×28
        self.conv2 = nn.Conv2d(16, 32, 3, padding=1)  # → 32×14×14
        self.fc = nn.Linear(32 * 7 * 7, 10)

    def forward(self, x):
        x = F.max_pool2d(F.relu(self.conv1(x)), 2)   # 28→14
        x = F.max_pool2d(F.relu(self.conv2(x)), 2)   # 14→7
        return self.fc(x.view(x.size(0), -1))

model = SimpleCNN()
criterion = nn.CrossEntropyLoss()
optimizer = optim.SGD(model.parameters(), lr=0.1)

for epoch in range(1, 6):
    for images, labels in train_loader:
        optimizer.zero_grad()
        loss = criterion(model(images), labels)
        loss.backward()
        optimizer.step()
    print(f"Epoch {epoch}, Loss: {loss.item():.4f}")

Typical test accuracy: ~98–99%.

---

5 PyTorch Softmax Regression (Full Pipeline)

A complete, production-style PyTorch pipeline with device handling, model save/load, and per-class accuracy reporting.

Model

class Net(nn.Module):
    def __init__(self, input_size=784, num_classes=10):
        super().__init__()
        self.layer = nn.Linear(input_size, num_classes)

    def forward(self, x):
        return self.layer(torch.flatten(x, 1))

Training

def train(model, loader, criterion, optimizer, epochs=2, device='cpu'):
    model.train()
    for epoch in range(epochs):
        running_loss = 0.0
        for i, (inputs, labels) in enumerate(loader):
            inputs, labels = inputs.to(device), labels.to(device)
            optimizer.zero_grad()
            loss = criterion(model(inputs), labels)
            loss.backward()
            optimizer.step()
            running_loss += loss.item()
            if i % 2000 == 1999:
                print(f'[{epoch+1}, {i+1:5d}] '
                      f'loss: {running_loss/2000:.3f}')
                running_loss = 0.0

Evaluation

def compute_accuracy(model, loader, classes, device='cpu'):
    model.eval()
    correct = total = 0
    class_correct = {c: 0 for c in classes}
    class_total   = {c: 0 for c in classes}

    with torch.no_grad():
        for images, labels in loader:
            images, labels = images.to(device), labels.to(device)
            _, predicted = torch.max(model(images), 1)
            total += labels.size(0)
            correct += (predicted == labels).sum().item()
            for lbl, pred in zip(labels, predicted):
                if lbl == pred:
                    class_correct[classes[lbl]] += 1
                class_total[classes[lbl]] += 1

    print(f'Overall accuracy: {100 * correct / total:.1f}%')
    for c in classes:
        print(f'  {c}: {100 * class_correct[c] / class_total[c]:.1f}%')

Save and Load

torch.save(model.state_dict(), './model/model.pth')

model = Net()
model.load_state_dict(torch.load('./model/model.pth'))

---

Model Comparison

Model	Parameters	Test Accuracy
Linear (softmax regression)	~7.9 K	~92%
Two-layer network (100 hidden)	~89 K	~97%
Simple CNN (16→32 filters)	~26 K	~98–99%

The jump from a linear model to a single hidden layer is substantial because the hidden layer can learn non-linear feature combinations. The CNN goes further by exploiting the spatial structure of images through weight sharing and local connectivity.
