Logit Link and Odds¶

From Linear Models to Classification¶

In linear regression the response variable $y$ is continuous. When the response is binary — taking values 0 or 1 — we need a model that maps $\mathbb{R}$ into the interval $(0,1)$. Logistic regression achieves this by passing the linear predictor through the sigmoid (logistic) function.

The Sigmoid Function¶

\[ \sigma(z) = \frac{1}{1+e^{-z}} \]

The sigmoid maps every real number to $(0,1)$ and is therefore a valid model for the conditional probability $P(Y=1 \mid \mathbf{x})$.

Derivative of the Sigmoid¶

The derivative has a remarkably clean form that simplifies gradient computations throughout logistic regression:

\[ \sigma'(z) = \frac{e^{-z}}{(1+e^{-z})^2} = \sigma(z)\bigl(1-\sigma(z)\bigr) \]

??? note "Derivation" Write $\sigma = (1+e^{-z})^{-1}$ and apply the chain rule:

$$
\sigma' = -\,(1+e^{-z})^{-2}\cdot(-e^{-z})
        = \frac{e^{-z}}{(1+e^{-z})^2}
$$

Factor as $\frac{1}{1+e^{-z}} \cdot \frac{e^{-z}}{1+e^{-z}}
= \sigma(1-\sigma)$.

The Logit (Log-Odds) Link¶

Define the logit of a probability $p$:

\[ \operatorname{logit}(p) = \log\frac{p}{1-p} \]

The ratio $p/(1-p)$ is the odds of the event, and the logit is the log-odds. Logistic regression assumes a linear relationship in the log-odds:

\[ \operatorname{logit}\bigl(P(Y=1\mid\mathbf{x})\bigr) = \mathbf{x}^T\boldsymbol{\theta} \]

Equivalently, for the $i$-th observation with feature vector $A[i,:]$ (the design-matrix row, including a leading 1 for the intercept):

\[ z^{(i)} = A[i,:]\,\boldsymbol{\theta}, \qquad \sigma^{(i)} = \sigma\!\bigl(z^{(i)}\bigr) \]

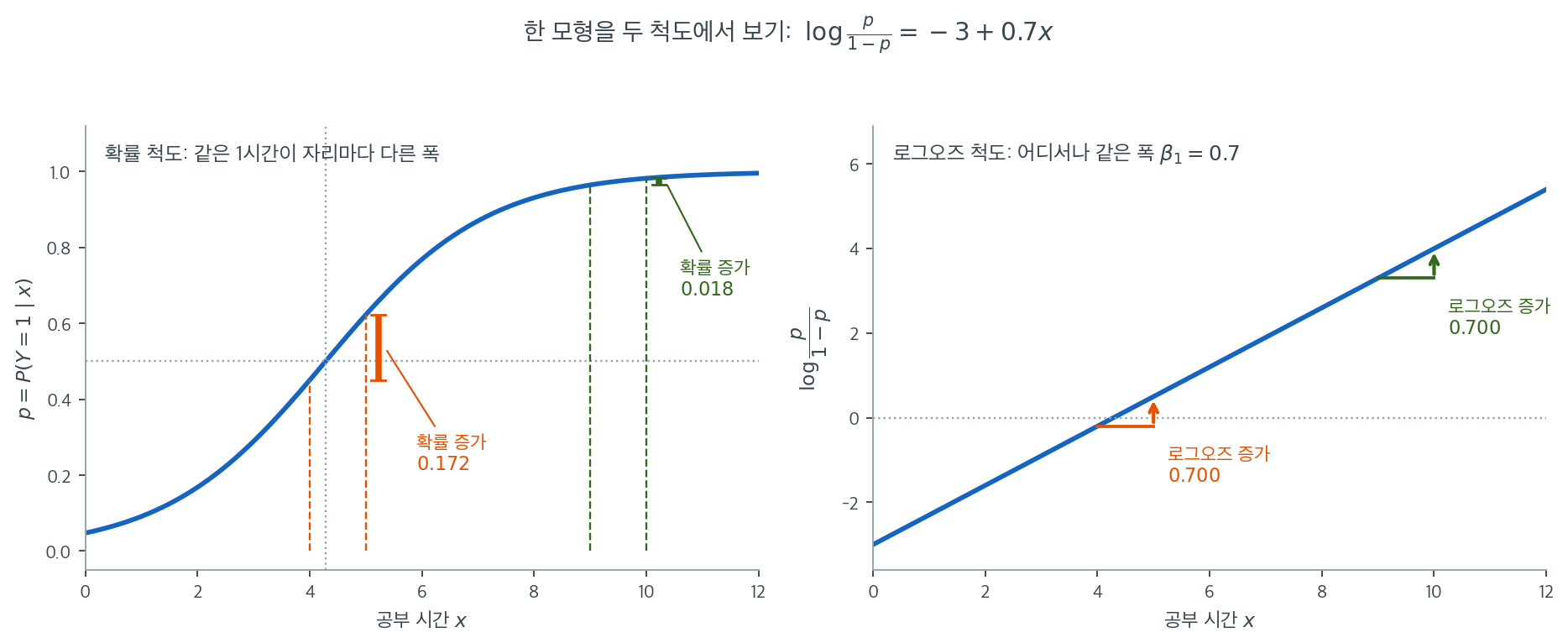

Interpretation via Odds¶

Because $\operatorname{logit}(p) = \mathbf{x}^T\boldsymbol{\theta}$, a unit increase in feature $x_j$ multiplies the odds by $e^{\theta_j}$, holding all other features constant. This multiplicative interpretation is one of the key reasons logistic regression remains popular in applied statistics and finance.

Key Properties¶

Property	Value
Domain	$z \in (-\infty, +\infty)$
Range	$\sigma(z) \in (0, 1)$
Symmetry	$\sigma(-z) = 1 - \sigma(z)$
Midpoint	$\sigma(0) = 0.5$
Maximum slope	$\sigma'(0) = 0.25$

Confounding in Logistic Regression¶

As with linear regression, logistic regression can suffer from confounding: a third variable may be associated with both the predictor and the outcome, distorting the apparent relationship between them.

Example: Student Status Confounds Balance and Default¶

Consider predicting credit card default ($Y$) using account balance ($X_1$). A bivariate logistic regression shows a negative relationship:

\[ \log\frac{P(\text{Default}=1)}{P(\text{Default}=0)} = \beta_0 + \beta_1 \cdot \text{Balance} \]

You might find $\beta_1 < 0$, suggesting that higher balance reduces default risk. However, this may be misleading.

The confounder is student status ($X_2$). In the data:

Students tend to have:
Lower account balances (younger, less established financially)
Higher default rates (lower income, less stable employment)
Non-students tend to have:
Higher account balances (older, more established)
Lower default rates (higher income, better job stability)

The Paradox¶

Bivariate model (ignoring student status):

\[ \log\frac{P(\text{Default}=1)}{1-P(\text{Default}=1)} = \beta_0 + \beta_1 \cdot \text{Balance} \]

This shows $\beta_1 < 0$: higher balance → lower default probability.

But this is confounded! Student status is driving both variables in opposite directions.

Multivariate model (including student status):

\[ \log\frac{P(\text{Default}=1)}{1-P(\text{Default}=1)} = \beta_0 + \beta_1 \cdot \text{Balance} + \beta_2 \cdot \text{Student} \]

Once we control for student status, the relationship between balance and default may reverse or change dramatically:

$\beta_1$ might become positive (higher balance → higher default for students AND non-students)
The coefficient magnitude may change substantially

This reversal is an example of Simpson's paradox in classification: an association observed in the marginal (bivariate) model disappears or reverses when you control for a confounder.

Interpretation of Odds Ratios with Confounders¶

In the bivariate model:

\[ \text{Odds Ratio}_{X_1} = e^{\beta_1} \approx 0.99 \]

("For every $1 increase in balance, odds decrease by 1%")

In the multivariate model:

\[ \text{Odds Ratio}_{X_1 | X_2} = e^{\hat{\beta}_1} \approx 1.01 \]

("For every $1 increase in balance, controlling for student status, odds increase by 1%")

The different interpretations reflect that: - The first is a marginal (unconditional) effect - The second is a conditional (partial) effect

Checking for Confounding¶

To detect confounding in logistic regression:

Fit a bivariate model: $\log\frac{p}{1-p} = \beta_0 + \beta_1 X_1$
Fit a multivariate model: $\log\frac{p}{1-p} = \beta_0 + \beta_1 X_1 + \beta_2 X_2$
Compare coefficients:
If $|\hat{\beta}_1^{\text{multivariate}} - \hat{\beta}_1^{\text{bivariate}}| / |\hat{\beta}_1^{\text{bivariate}}| > 0.10$, confounding is likely present
A change in sign is strong evidence of confounding

Example Output¶

Bivariate Model (Balance only):
  Intercept:  -10.65
  Balance:     -0.00555  (Odds Ratio: 0.9945)

Multivariate Model (Balance + Student):
  Intercept:  -11.10
  Balance:     +0.00265  (Odds Ratio: 1.0027)
  Student:     +0.71    (Odds Ratio: 2.03)

The balance coefficient changes from negative to positive once student status is included—a clear sign of confounding.

Implications for Prediction and Inference¶

For prediction: Including confounders improves predictive accuracy by capturing true relationships
For inference: Ignoring confounders leads to biased coefficient estimates and incorrect odds ratio interpretations
Best practice: Always consider domain knowledge and collect data on potential confounders

See also: Confounding and Association vs. Causation for a broader discussion of confounding across statistical methods.

Property	Value
Domain	\(z \in (-\infty, +\infty)\)
Range	\(\sigma(z) \in (0, 1)\)
Symmetry	\(\sigma(-z) = 1 - \sigma(z)\)
Midpoint	\(\sigma(0) = 0.5\)
Maximum slope	\(\sigma'(0) = 0.25\)
