Confusion Matrix, ROC Curve, and Classification Metrics¶

The Classification Decision¶

Logistic regression outputs a predicted probability \(\hat{p} = P(Y = 1 \mid \mathbf{x})\). To make a binary classification decision, we apply a threshold \(c\) (default \(c = 0.5\)):

\[\hat{Y} = \begin{cases} 1 & \text{if } \hat{p} \geq c \\ 0 & \text{if } \hat{p} < c \end{cases}\]

The choice of threshold affects all classification metrics.

Confusion Matrix¶

The confusion matrix tabulates predictions against true labels:

	Predicted Positive (\(\hat{Y} = 1\))	Predicted Negative (\(\hat{Y} = 0\))
Actual Positive (\(Y = 1\))	True Positive (TP)	False Negative (FN)
Actual Negative (\(Y = 0\))	False Positive (FP)	True Negative (TN)

All classification metrics are derived from these four counts.

Primary Metrics¶

Accuracy¶

\[\text{Accuracy} = \frac{TP + TN}{TP + TN + FP + FN}\]

The proportion of all predictions that are correct. Limitation: misleading with imbalanced classes. If 95% of transactions are legitimate, a model that always predicts "legitimate" achieves 95% accuracy but catches zero fraud.

Precision (Positive Predictive Value)¶

\[\text{Precision} = \frac{TP}{TP + FP}\]

"Of all observations predicted positive, how many actually are?" High precision means few false alarms.

Recall (Sensitivity, True Positive Rate)¶

\[\text{Recall} = \frac{TP}{TP + FN}\]

"Of all actual positives, how many did we catch?" High recall means few missed positives.

Specificity (True Negative Rate)¶

\[\text{Specificity} = \frac{TN}{TN + FP}\]

"Of all actual negatives, how many did we correctly identify?"

F1 Score¶

The harmonic mean of precision and recall:

\[F_1 = \frac{2 \cdot \text{Precision} \cdot \text{Recall}}{\text{Precision} + \text{Recall}} = \frac{2\,TP}{2\,TP + FP + FN}\]

The F1 score balances precision and recall when both matter equally.

Precision–Recall Tradeoff¶

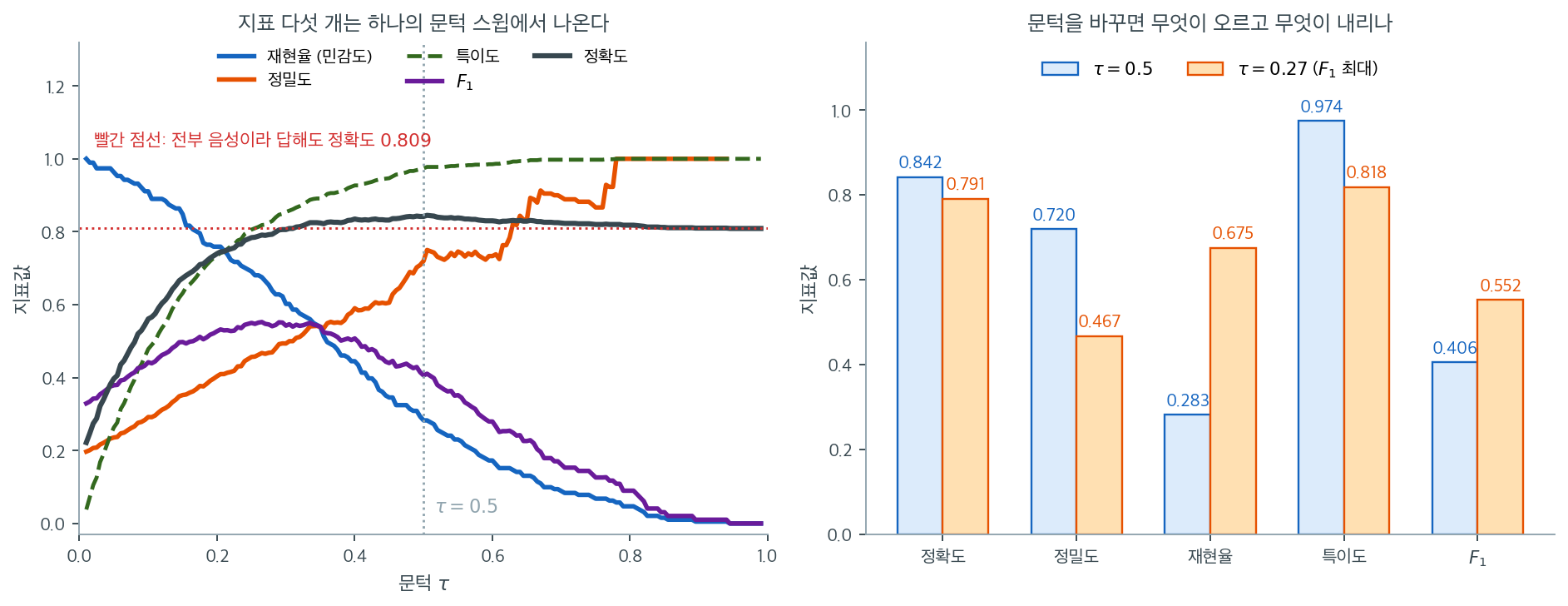

Lowering the threshold \(c\) increases recall (catch more positives) but decreases precision (more false positives). The optimal threshold depends on the application:

Medical screening: prioritize recall (don't miss sick patients)
Spam filtering: prioritize precision (don't misclassify good emails)
Fraud detection: balance depends on cost of missed fraud vs false alerts

ROC Curve¶

Definition¶

The Receiver Operating Characteristic (ROC) curve plots the True Positive Rate (Recall) against the False Positive Rate (\(\text{FPR} = FP/(FP + TN) = 1 - \text{Specificity}\)) for all possible threshold values \(c \in [0, 1]\).

Interpretation¶

A perfect classifier hugs the top-left corner: TPR = 1, FPR = 0
The diagonal line represents a random classifier (no discrimination)
The ROC curve is threshold-free — it summarizes performance across all thresholds

AUC (Area Under the ROC Curve)¶

\[\text{AUC} = \int_0^1 \text{ROC}(t)\, dt\]

AUC	Interpretation
1.0	Perfect classifier
0.9–1.0	Excellent
0.8–0.9	Good
0.7–0.8	Fair
0.5–0.7	Poor
0.5	Random (no discrimination)

Probabilistic interpretation: AUC equals the probability that the model ranks a randomly chosen positive instance higher than a randomly chosen negative instance:

\[\text{AUC} = P(\hat{p}_{\text{positive}} > \hat{p}_{\text{negative}})\]

Precision–Recall Curve¶

For imbalanced datasets, the PR curve (Precision vs Recall) is more informative than the ROC curve. The Average Precision (AP) summarizes the PR curve:

\[\text{AP} = \sum_k (R_k - R_{k-1}) \cdot P_k\]

where \(P_k\) and \(R_k\) are precision and recall at the \(k\)-th threshold.

Log-Loss (Cross-Entropy Loss)¶

The log-loss directly measures the quality of predicted probabilities (not just classifications):

\[\text{Log-Loss} = -\frac{1}{n}\sum_{i=1}^n \left[y_i \log \hat{p}_i + (1 - y_i)\log(1 - \hat{p}_i)\right]\]

Lower log-loss indicates better-calibrated probabilities. A perfect model has log-loss = 0.

Choosing the Right Metric¶

Scenario	Recommended Metric
Balanced classes, equal costs	Accuracy, F1
Imbalanced classes	AUC, F1, Average Precision
Cost of FN >> cost of FP	Recall, then F1
Cost of FP >> cost of FN	Precision, then F1
Probability calibration matters	Log-loss, Brier score
Comparing models overall	AUC

McFadden's Pseudo-R-squared¶

Unlike linear regression, logistic regression has no natural \(R^2\). McFadden's pseudo-\(R^2\) provides a rough analog:

\[R^2_{\text{McFadden}} = 1 - \frac{\ell(\hat{\boldsymbol{\beta}})}{\ell(\hat{\beta}_0)}\]

where \(\ell(\hat{\boldsymbol{\beta}})\) is the log-likelihood of the full model and \(\ell(\hat{\beta}_0)\) is the log-likelihood of the null model (intercept only). Values of 0.2–0.4 are considered good in practice.
