Regularization Path¶

Overview¶

The regularization path traces how model coefficients change as the regularization parameter (lambda, \(\lambda\)) varies from large (high regularization, sparse solutions) to small (low regularization, close to OLS). Understanding the regularization path is essential for:

Visualizing the bias-variance tradeoff — See how coefficients shrink as regularization increases
Feature selection — Identify which features are selected at different regularization levels
Understanding model complexity — Observe how many features are "active" (non-zero) at each lambda
Choosing the optimal lambda — Combined with cross-validation, select the best regularization strength

The Regularization Path for Lasso¶

For Lasso regression, the regularization problem is:

\[\text{minimize} \quad \frac{1}{2n}\|y - X\beta\|^2_2 + \lambda \|\beta\|_1\]

As \(\lambda\) increases: - More coefficients are shrunk exactly to zero - The model becomes sparser (fewer non-zero coefficients) - Bias increases, but variance decreases - Predictive error follows a U-shaped curve (minimum at optimal \(\lambda\))

Key Properties of the Lasso Path¶

Feature Activation Order¶

The Lasso path exhibits a soft-thresholding property where:

At very high \(\lambda\), all coefficients are zero
As \(\lambda\) decreases, features enter the model (become non-zero) one by one
The order of entry reflects feature importance under L1 regularization
At very small \(\lambda\), all features are active (close to OLS solution)

Monotonicity of Feature Selection¶

Once a feature becomes non-zero in the Lasso path, it typically remains non-zero as \(\lambda\) decreases (with some exceptions for highly correlated predictors). This creates a "homotopy" structure useful for computation.

Degrees of Freedom¶

At any point on the path, the effective degrees of freedom (eDoF) is:

\[\text{eDoF}(\lambda) = \text{number of non-zero coefficients}\]

This exact relationship (unlike Ridge regression) makes Lasso particularly useful for model selection.

Computing the Regularization Path¶

Algorithm: Coordinate Descent with Warm Starts¶

Modern implementations use coordinate descent with "warm starts":

Initialize: β = 0

For λ in decreasing order (λ_max to λ_min):
    Initialize β from previous solution (warm start)
    For each coordinate j:
        Compute residual: r_j = y - X β + X_j β_j
        Apply soft-thresholding: β_j = soft_threshold(X_j^T r_j / n, λ)
    Continue until convergence

The warm start leverages the previous solution to speed computation—solutions at nearby lambdas are similar, so we start close to the optimum.

Complexity¶

Single lambda: O(np) per iteration
Full path (M lambdas): O(M × np × iterations) if computed sequentially
Efficient implementation: Solutions for all lambdas in nearly the time of solving one problem!

Practical Interpretation of the Path¶

Example: Housing Prices¶

Consider predicting house prices with 12 features. The Lasso path might look like:

λ (scaled)	# Non-Zero	Selected Features	RMSE
10.0	0	(none)	340,000
5.0	1	SqFtTotLiving	280,000
2.0	4	SqFtTotLiving, BldgGrade, YrBuilt, Bathrooms	240,000
1.0	7	+ SqFtLot, Bedrooms, NbrLivingUnits	225,000
0.5	10	+ SqFtFinBasement, YrRenovated	220,000
0.1	12	All features (approaching OLS)	218,000

Insights: - The most important predictor (SqFtTotLiving) enters first - Building grade and year built are the next most important - Less important features (YrRenovated) enter at small lambda - RMSE continues decreasing, but improvements slow after 7 features

Cross-Validation on the Path¶

Rather than optimizing each lambda separately, compute CV error for each \(\lambda\) on the precomputed path:

For each lambda on the path:
    For each CV fold:
        Fit model on training fold
        Predict on validation fold
        Record error
    Average errors across folds
Select lambda with minimum CV error

This is much faster than refitting at each lambda!

Visualization of the Path¶

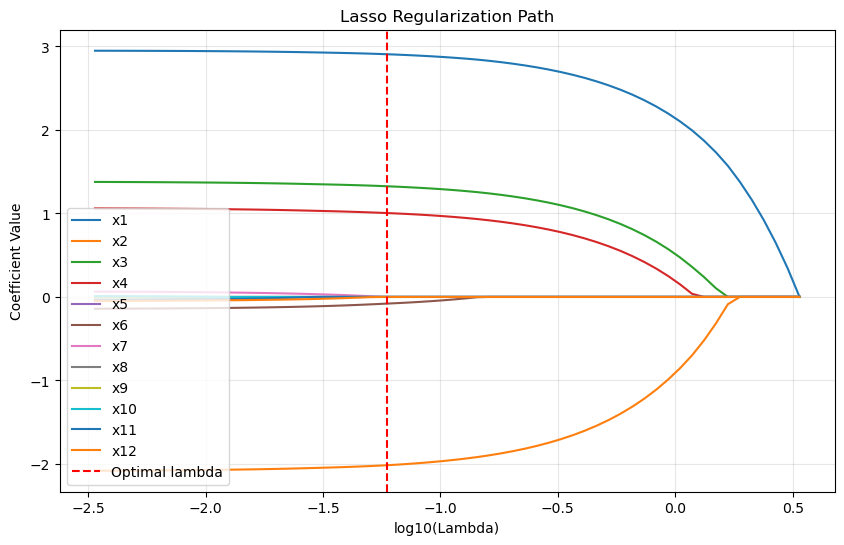

Plot 1: Coefficients vs Lambda¶

import matplotlib.pyplot as plt
import numpy as np

# After computing lasso_coefs (shape: [n_lambdas, n_features])
fig, ax = plt.subplots(figsize=(10, 6))

for j in range(n_features):
    ax.plot(np.log10(lambdas), lasso_coefs[:, j], label=feature_names[j])

ax.axvline(np.log10(lambda_opt), color='red', linestyle='--', label='Optimal λ')
ax.set_xlabel('log₁₀(Lambda)')
ax.set_ylabel('Coefficient Value')
ax.set_title('Lasso Regularization Path')
ax.legend()
ax.grid(True, alpha=0.3)
plt.show()

This plot reveals: - Feature selection: which features are active at each lambda - Shrinkage direction: how coefficients change - Sparsity: the order and timing of feature entry

Plot 2: Cross-Validation Error¶

# Plot CV error across the path
fig, ax = plt.subplots(figsize=(10, 6))

cv_mean = cv_mse_path.mean(axis=1)
cv_std = cv_mse_path.std(axis=1)

ax.plot(np.log10(lambdas), np.sqrt(cv_mean), 'o-', label='CV RMSE')
ax.fill_between(np.log10(lambdas),
                 np.sqrt(cv_mean - cv_std),
                 np.sqrt(cv_mean + cv_std),
                 alpha=0.2)
ax.axvline(np.log10(lambda_opt), color='red', linestyle='--', label='Optimal λ')
ax.set_xlabel('log₁₀(Lambda)')
ax.set_ylabel('Cross-Validation RMSE')
ax.set_title('Lambda Selection via Cross-Validation')
ax.legend()
ax.grid(True, alpha=0.3)
plt.show()

This reveals the optimal regularization strength: typically a minimum around λ = 1-10 before CV error increases due to excessive regularization.

Comparing Regularization Methods: Paths and Trade-offs¶

Lasso vs Ridge vs Elastic Net¶

Property	Lasso (L1)	Ridge (L2)	Elastic Net
Path sparsity	Yes (exact zeros)	No (all non-zero)	Partial (grouped zeros)
Feature selection	Automatic	Manual (thresholding)	Automatic (grouping)
Computational cost	Medium (warm start)	Low (closed form)	Medium
High-correlation	Picks one feature	Keeps all, shrinks	Balanced selection
Interpretability	High (sparse)	Medium	High

Practical Guidelines¶

Choosing Lambda via Cross-Validation¶

Standard approach (1-SE rule): 1. Compute CV error for each lambda 2. Find λ* with minimum CV error 3. Often use λ = λ_1SE: the largest lambda within 1 standard error of minimum - Provides simpler model with similar CV error - More conservative against overfitting

# Find lambda_1SE
best_idx = np.argmin(cv_mse)
lambda_1se = lambdas[np.where(cv_mse <= cv_mse[best_idx] + cv_std[best_idx])[0][-1]]

Interpreting the Path for Model Selection¶

Number of features — For sparse interpretability, choose lambda where only 5-15 features are active
Stability — Prefer lambdas where small changes don't drastically alter the model
Domain knowledge — Features should align with domain understanding; if not, investigate multicollinearity
Prediction vs interpretation — Higher lambda (fewer features) may sacrifice accuracy for simplicity

Computational Considerations¶

Modern packages (scikit-learn, glmnet): Compute path for ~100 lambdas nearly as fast as single fit
Warm starts: Essential for efficiency; don't solve each lambda independently
Standardization: Always standardize features before fitting Lasso; coefficients are not comparable on different scales

Summary¶

The regularization path provides a complete picture of the bias-variance tradeoff:

Visualizes how coefficients and feature selection change with regularization
Enables efficient computation via warm starts and coordinate descent
Guides lambda selection through cross-validation
Supports interpretability by revealing feature importance and stability
Bridges the gap between complex models (all features) and simple models (few features)

Understanding the regularization path transforms lambda selection from a "black box" into an informed, principled choice aligned with your data and goals.
