Bootstrap Confidence Intervals: Visual Interpretation of Confidence Levels¶

Overview¶

This section demonstrates how to visualize bootstrap confidence intervals at different confidence levels (e.g., 90% vs 95%). Visual comparison clarifies what "confidence level" truly means: the procedure's long-run coverage property, not a probability statement about a particular interval.

The Bootstrap Confidence Interval Procedure¶

The bootstrap method for constructing confidence intervals follows these steps:

Sample from the sample: Repeatedly resample (with replacement) from the original sample
Compute bootstrap statistics: For each resample, compute the statistic of interest (e.g., mean, median)
Extract quantiles: Use the percentiles of bootstrap statistics to form the interval

For an \(\alpha\) significance level, the confidence interval is:

\[[\hat{F}_{\alpha/2}^*, \, \hat{F}_{1-\alpha/2}^*]\]

where \(\hat{F}_q^*\) denotes the \(q\)-th quantile of the bootstrap distribution.

Example: Bootstrap Confidence Intervals for Mean Income¶

This example constructs 90% and 95% confidence intervals for mean income using real loan data:

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from sklearn.utils import resample

# Set random seed
np.random.seed(seed=3)

# Simulate income data (or load real loan income data)
np.random.seed(seed=3)
loans_income = np.random.exponential(scale=50000, size=5000) + 20000

# Draw a single sample of n=20 from the population
original_sample = resample(loans_income, n_samples=20, replace=False)
original_mean = original_sample.mean()

print(f"Original sample size: {len(original_sample)}")
print(f"Original sample mean: ${original_mean:,.0f}")
print()

# Bootstrap procedure: resample from the sample 500 times
bootstrap_means = []
for _ in range(500):
    bootstrap_sample = resample(original_sample)  # with replacement
    bootstrap_means.append(bootstrap_sample.mean())

bootstrap_means = pd.Series(bootstrap_means)

# Compute confidence intervals
ci_90_lower, ci_90_upper = bootstrap_means.quantile([0.05, 0.95])
ci_95_lower, ci_95_upper = bootstrap_means.quantile([0.025, 0.975])

print("90% Confidence Interval: [${:,.0f}, ${:,.0f}]".format(ci_90_lower, ci_90_upper))
print("95% Confidence Interval: [${:,.0f}, ${:,.0f}]".format(ci_95_lower, ci_95_upper))
print(f"Mean of bootstrap means: ${bootstrap_means.mean():,.0f}")
print()

# Visualize both confidence levels
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(14, 5))

# Plot 1: 90% Confidence Interval
ax1.hist(bootstrap_means, bins=30, color='steelblue', edgecolor='black', alpha=0.7)
ax1.axvline(ci_90_lower, color='darkred', linestyle='--', linewidth=2.5, label='90% CI limits')
ax1.axvline(ci_90_upper, color='darkred', linestyle='--', linewidth=2.5)

# Shade the confidence interval region
ax1.axvspan(ci_90_lower, ci_90_upper, alpha=0.2, color='green', label='90% CI')

# Add annotation
ci_90_mid = (ci_90_lower + ci_90_upper) / 2
ax1.text(ci_90_mid, 35, f'90% CI\n[${ci_90_lower:,.0f}, ${ci_90_upper:,.0f}]',
         ha='center', va='center', fontsize=10,
         bbox=dict(boxstyle='round', facecolor='white', edgecolor='darkred', linewidth=1.5))

# Mark the sample mean
ax1.axvline(original_mean, color='black', linestyle='-', linewidth=2, label=f'Sample mean: ${original_mean:,.0f}')

ax1.set_xlabel('Bootstrap Sample Mean ($)', fontsize=11)
ax1.set_ylabel('Frequency', fontsize=11)
ax1.set_title('90% Bootstrap Confidence Interval', fontsize=12, fontweight='bold')
ax1.legend(loc='upper left', fontsize=9)
ax1.spines[['top', 'right']].set_visible(False)
ax1.grid(True, alpha=0.3, axis='y')

# Plot 2: 95% Confidence Interval
ax2.hist(bootstrap_means, bins=30, color='steelblue', edgecolor='black', alpha=0.7)
ax2.axvline(ci_95_lower, color='darkblue', linestyle='--', linewidth=2.5, label='95% CI limits')
ax2.axvline(ci_95_upper, color='darkblue', linestyle='--', linewidth=2.5)

# Shade the confidence interval region
ax2.axvspan(ci_95_lower, ci_95_upper, alpha=0.2, color='orange', label='95% CI')

# Add annotation
ci_95_mid = (ci_95_lower + ci_95_upper) / 2
ax2.text(ci_95_mid, 35, f'95% CI\n[${ci_95_lower:,.0f}, ${ci_95_upper:,.0f}]',
         ha='center', va='center', fontsize=10,
         bbox=dict(boxstyle='round', facecolor='white', edgecolor='darkblue', linewidth=1.5))

# Mark the sample mean
ax2.axvline(original_mean, color='black', linestyle='-', linewidth=2, label=f'Sample mean: ${original_mean:,.0f}')

ax2.set_xlabel('Bootstrap Sample Mean ($)', fontsize=11)
ax2.set_ylabel('Frequency', fontsize=11)
ax2.set_title('95% Bootstrap Confidence Interval', fontsize=12, fontweight='bold')
ax2.legend(loc='upper left', fontsize=9)
ax2.spines[['top', 'right']].set_visible(False)
ax2.grid(True, alpha=0.3, axis='y')

plt.tight_layout()
plt.show()

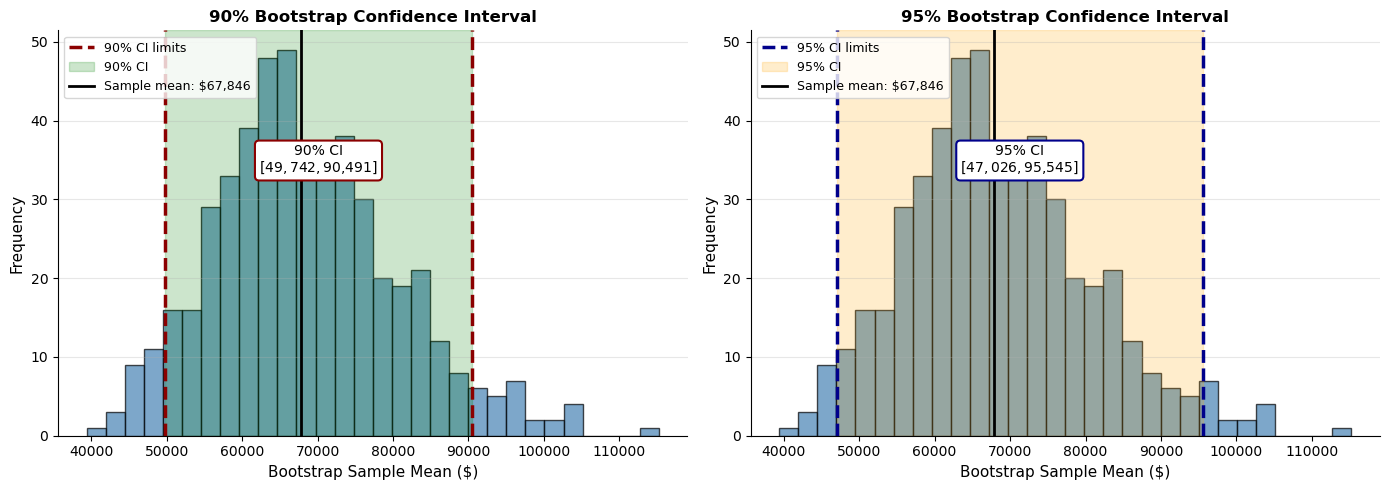

Key Insights from the Visualization¶

1. Confidence Level vs Interval Width¶

90% CI: Narrower interval, excludes more extreme 5% in each tail
95% CI: Wider interval, only excludes 2.5% in each tail

The trade-off is fundamental: - Higher confidence → wider interval (less precise) - Lower confidence → narrower interval (more precise)

2. What "95% Confidence" Really Means¶

A common misconception: "The true mean has a 95% probability of lying in this interval."

Correct interpretation: If we repeated the sampling and bootstrap procedure many times, 95% of the computed intervals would contain the true population parameter.

For a given sample, the true parameter either is or isn't in the interval—there's no probability involved. The probability is in the procedure, not in any particular interval.

# Simulation to demonstrate long-run coverage
np.random.seed(42)

# True population
true_pop = np.random.exponential(scale=50000, size=10000) + 20000
true_mean = true_pop.mean()

# Repeat the procedure many times
n_simulations = 100
ci_covers = []

for sim in range(n_simulations):
    # Draw a sample of size 20
    sample = np.random.choice(true_pop, size=20, replace=False)

    # Bootstrap
    boot_means = np.array([np.mean(np.random.choice(sample, size=len(sample))) for _ in range(500)])

    # 95% CI
    ci_lower, ci_upper = np.percentile(boot_means, [2.5, 97.5])

    # Check if true mean is covered
    covered = ci_lower <= true_mean <= ci_upper
    ci_covers.append(covered)

coverage_pct = 100 * np.mean(ci_covers)
print(f"Coverage across {n_simulations} simulations: {coverage_pct:.1f}%")
print(f"Expected coverage: 95.0%")

Bootstrap Method Advantages¶

Distribution-free: Makes no assumptions about the underlying distribution
Flexibility: Works for any statistic (mean, median, correlation, etc.)
Intuitive: The bootstrap distribution reflects actual sampling variability
Simple implementation: No need to know theoretical formulas

Percentile vs Other Bootstrap CI Methods¶

The percentile method (using quantiles directly) is simple but can be biased for skewed distributions. For better performance:

# Percentile method (simplest, shown above)
ci_percentile = (bootstrap_means.quantile(0.025), bootstrap_means.quantile(0.975))

# BCa (Bias-Corrected and Accelerated) method - more advanced
from scipy.stats import bootstrap

def statistic(x):
    return np.mean(x)

result = bootstrap((original_sample,), statistic, n_resamples=500, method='bca')
ci_bca = result.confidence_interval

Practical Recommendations¶

Choose confidence level based on purpose:
90%: When precision matters more (e.g., manufacturing)
95%: Standard in most applications
99%: For high-stakes decisions (e.g., pharmaceutical trials)
Report confidence intervals, not p-values: CIs communicate both point estimate and uncertainty
Use at least 1000 bootstrap replications: Ensures stable quantile estimates
Check assumptions: While bootstrap is distribution-free, ensure the sample is representative of the population

Summary¶

Bootstrap confidence intervals: - Provide intuitive visual representation of sampling uncertainty - Make the trade-off between confidence and precision explicit - Enable inference for any statistic without theoretical formulas - Depend on the sample representing the population well

The width of the interval reflects both the variability in the data and the chosen confidence level—a key principle of statistical inference.
