19.1 One-Sample Non-Parametric Tests¶

This section introduces three foundational non-parametric tests that operate on a single sample (or treat paired data as a single sample of differences): the Runs Test for randomness, the Sign Test for the median, and the Wilcoxon Signed-Rank Test which uses both the sign and magnitude of deviations.

19.1.1 Runs Test (Wald–Wolfowitz)¶

Concept¶

The Wald–Wolfowitz runs test checks whether a two-valued data sequence is random. A run is a maximal consecutive subsequence of identical elements. For example, in the sequence

\[ \underbrace{+ + +}_{\text{run 1}} \; \underbrace{- -}_{\text{run 2}} \; \underbrace{+}_{\text{run 3}} \; \underbrace{- - -}_{\text{run 4}} \]

there are 4 runs. Too few runs suggest the data are clustered (positive autocorrelation); too many suggest systematic alternation.

Hypotheses¶

\[ H_0: \text{The elements of the sequence are mutually independent (random).} \]

\[ H_a: \text{The elements are not independent.} \]

Test Statistic¶

Given a sequence of length \(N\) containing \(N_+\) values of one type and \(N_- = N - N_+\) of the other:

Number of runs:

\[ R = \frac{N_+ + N_- + 1 - \sum_{i=1}^{N-1} x_i \, x_{i+1}}{2} \]

where the data are coded as \(+1\) and \(-1\).

Mean and standard deviation under \(H_0\):

\[ \mu_R = \frac{2 \, N_+ \, N_-}{N} + 1 \]

\[ \sigma_R = \sqrt{\frac{(\mu_R - 1)(\mu_R - 2)}{N - 1}} \]

Standardized test statistic (normal approximation):

\[ Z = \frac{R - \mu_R}{\sigma_R} \]

Under \(H_0\), \(Z \xrightarrow{d} \mathcal{N}(0,1)\) for large \(N\).

p-value (two-sided):

\[ p = 2 \, \Phi(-|Z|) \]

Implementation¶

import numpy as np
import scipy.stats as stats

def runs_test(data):
    """
    Wald-Wolfowitz runs test for randomness.

    Parameters
    ----------
    data : array-like
        A sequence of +1 and -1 values.

    Returns
    -------
    statistic : float
        The Z test statistic.
    p_value : float
        Two-sided p-value.
    """
    data = np.asarray(data)
    N = data.shape[0]
    N_plus = (data == 1).sum()
    N_minus = N - N_plus

    mu = 2 * N_plus * N_minus / N + 1
    sigma = np.sqrt((mu - 1) * (mu - 2) / (N - 1))

    # Count runs using adjacent-element products
    R = (N_plus + N_minus + 1 - np.sum(data[1:] * data[:-1])) / 2

    statistic = (R - mu) / sigma
    p_value = 2 * stats.norm.cdf(-abs(statistic))

    return statistic, p_value

Worked Examples¶

Example 1 — Clustered data (non-random):

data = np.array([1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0])
statistic, p_value = runs_test(data * 2 - 1)  # convert {0,1} → {-1,+1}
print(f"{statistic = :.4f}")   # large |Z|
print(f"{p_value   = :.4f}")   # p < 0.05 → reject randomness

This sequence has only 2 runs (one block of 1s, one block of 0s), far fewer than expected under randomness.

Example 2 — Well-mixed data (random):

data = np.array([1, 1, 0, 1, 0, 1, 0, 0, 1, 0, 1, 0, 1, 0, 1, 1, 0])
statistic, p_value = runs_test(data * 2 - 1)
print(f"{statistic = :.4f}")
print(f"{p_value   = :.4f}")   # p > 0.05 → cannot reject randomness

Example 3 — Simulated binomial data:

np.random.seed(1)
data = np.random.binomial(n=1, p=0.4, size=200)
statistic, p_value = runs_test(data * 2 - 1)
print(f"{statistic = :.4f}")
print(f"{p_value   = :.4f}")   # truly random → expect p > 0.05

Interpretation¶

Outcome	Meaning
\(p < \alpha\)	Reject \(H_0\): samples are not independently drawn
\(p \geq \alpha\)	Fail to reject \(H_0\): samples are consistent with independence

Applications in Finance¶

The runs test is commonly applied to stock return series to test the random walk hypothesis: if successive returns are independent, the sequence of positive and negative returns should appear random.

19.1.2 Sign Test¶

Concept¶

The sign test is one of the simplest non-parametric tests. It tests whether the median of a distribution equals a hypothesized value \(m_0\) by counting how many observations fall above and below \(m_0\).

For paired data \((x_i, y_i)\), we compute differences \(d_i = x_i - y_i\) and test whether the median difference is zero. The test only uses the signs of the differences, ignoring their magnitudes.

Hypotheses¶

Let \(p = P(X > m_0)\) (or \(p = P(d_i > 0)\) for paired data). Under \(H_0\): median \(= m_0\), we have \(p = 0.5\).

Test type	\(H_0\)	\(H_a\)
Two-sided	\(p = 0.5\)	\(p \neq 0.5\)
Left-tailed	\(p = 0.5\)	\(p < 0.5\)
Right-tailed	\(p = 0.5\)	\(p > 0.5\)

Handling Ties¶

Observations exactly equal to \(m_0\) (or tied pairs where \(d_i = 0\)) are excluded from the analysis. Only the remaining \(n = n_+ + n_-\) observations are used.

Test Statistic¶

\[ T = \sum_{i=1}^{N} \operatorname{sign}(d_i) \quad \text{(excluding ties)} \]

Equivalently, let \(\hat{p} = n_+ / n\) where \(n = n_+ + n_-\). The normal approximation gives:

\[ Z = \frac{\hat{p} - 0.5}{\sqrt{0.25 / n}} \]

Example Data¶

The following paired data compare post-treatment and pre-treatment scores for 15 students:

Student	Post	Pre	Sign	Abs Diff	Rank of Abs Diff
6	54	54	0	0	1
13	78	78	0	0	2
15	76	76	0	0	3
2	70	72	−	2	4
4	65	68	−	3	5
3	81	75	+	6	6
7	94	88	+	6	7
10	65	57	+	8	8
11	95	86	+	9	9
8	91	81	+	10	10
9	77	65	+	12	11
12	89	87	+	12	12
5	79	65	+	14	13
1	93	76	+	17	14
14	80	77	+	17	15

After excluding the 3 ties: \(n_+ = 10\), \(n_- = 2\), \(n = 12\).

Implementation¶

import numpy as np
import scipy.stats as stats

def sign_test(paired_data, test_type="two-sided"):
    """
    Sign test for paired observations.

    Parameters
    ----------
    paired_data : ndarray of shape (n, 2)
        Column 0 is post-treatment, column 1 is pre-treatment.
    test_type : str
        One of "less", "two-sided", "greater".

    Returns
    -------
    z : float
        The Z test statistic.
    p_value : float
    """
    p_0, q_0 = 0.5, 0.5

    # Ties are not counted
    n_plus = np.sum(paired_data[:, 0] > paired_data[:, 1])
    n_minus = np.sum(paired_data[:, 0] < paired_data[:, 1])
    n = n_plus + n_minus
    p_hat = n_plus / n

    z = (p_hat - p_0) / np.sqrt(p_0 * q_0 / n)

    if test_type == "less":
        p_value = stats.norm.cdf(z)
    elif test_type == "two-sided":
        p_value = 2 * stats.norm.cdf(-abs(z))
    elif test_type == "greater":
        p_value = stats.norm.sf(z)

    return z, p_value

# Usage
data = np.array([
    [93, 76], [70, 72], [81, 75], [65, 68], [79, 65],
    [54, 54], [94, 88], [91, 81], [77, 65], [65, 57],
    [95, 86], [89, 87], [78, 78], [80, 77], [76, 76]
])
z, p_value = sign_test(data)
print(f"{z       = :.4f}")
print(f"{p_value = :.4f}")

When to Use¶

The sign test is appropriate when only the direction of change matters (or is measurable) and when differences can only be classified as positive, negative, or tied. If the magnitudes of differences are also meaningful, the Wilcoxon signed-rank test (Section 19.1.3) will generally have greater power.

19.1.3 Wilcoxon Signed-Rank Test¶

Concept¶

The Wilcoxon signed-rank test extends the sign test by considering not only the direction but also the magnitude of each deviation from the hypothesized median. It does so by ranking the absolute deviations and summing ranks for positive and negative differences separately.

Not to be confused with

The Wilcoxon rank-sum test (Section 19.3.1) is for two independent samples. The signed-rank test is for one sample or paired data.

Hypotheses¶

For paired data with differences \(d_i = x_i - y_i\):

\[ H_0: \text{The median of } d_i \text{ is zero} \]

\[ H_a: \text{The median of } d_i \text{ is not zero (two-sided)} \]

Test Statistic¶

Compute differences \(d_i = x_i - y_i\).
Rank the \(|d_i|\) values from smallest to largest.
The test statistic is:

\[ T = \sum_{i=1}^{N} \operatorname{sign}(d_i) \times \text{Rank}(|d_i|) \]

This gives more weight to observations that deviate further from zero, unlike the sign test which treats all non-zero differences equally.

Handling Ties (Zero Differences)¶

The zero_method parameter controls how zero differences are handled:

Method	Description
`"wilcox"`	Discard zeros, rank remaining values
`"pratt"`	Include zeros in ranking, then exclude from sum
`"zsplit"`	Split zeros evenly between positive and negative ranks

Example Calculation¶

Using the same student data from the Sign Test section, with the Pratt method:

\(T = (-1)(4) + (-1)(5) + (+1)(6) + (+1)(7) + \cdots + (+1)(14) + (+1)(15)\)

The positive ranks dominate, yielding a large positive \(T\).

Implementation with SciPy¶

import numpy as np
import scipy.stats as stats

data = np.array([
    [93, 76], [70, 72], [81, 75], [65, 68], [79, 65],
    [54, 54], [94, 88], [91, 81], [77, 65], [65, 57],
    [95, 86], [89, 87], [78, 78], [80, 77], [76, 76]
])

statistic, p_value = stats.wilcoxon(
    data[:, 0], data[:, 1],
    alternative="two-sided",
    mode="approx",        # normal approximation
    zero_method="pratt"   # include zeros in ranking
)
print(f"{statistic = }")
print(f"{p_value   = :.4f}")

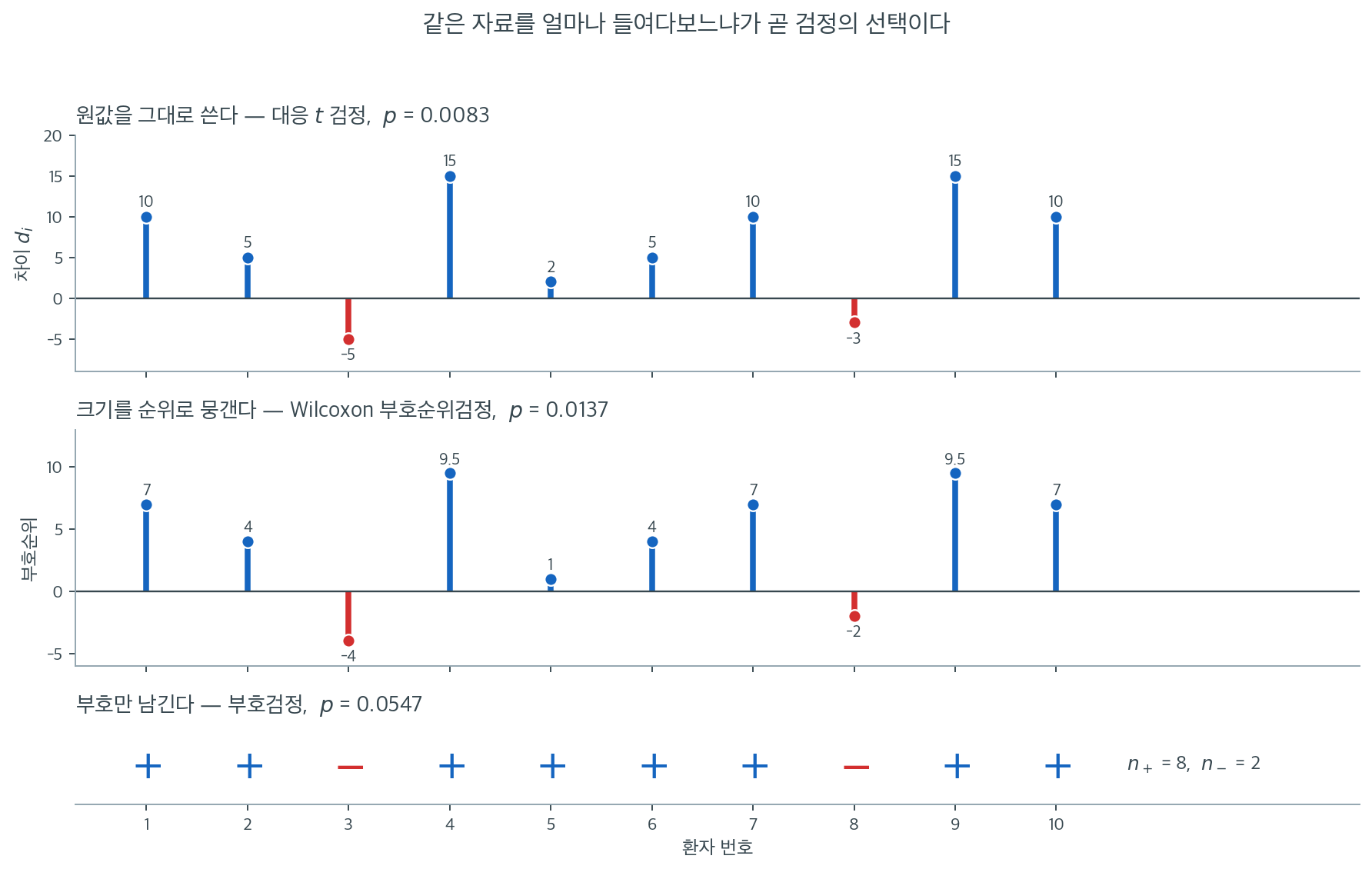

Sign Test vs Wilcoxon Signed-Rank Test¶

Feature	Sign Test	Wilcoxon Signed-Rank
Uses signs	✓	✓
Uses magnitudes	✗	✓ (via ranks)
Assumption	None beyond i.i.d.	Symmetric distribution of differences
Power	Lower	Higher (when symmetry holds)
Robustness to outliers	Very high	High

The sign test requires only that \(P(d_i > 0) = P(d_i < 0)\) under \(H_0\), while the Wilcoxon signed-rank test additionally assumes the distribution of differences is symmetric about zero.
