Generalized Additive Models (GAMs)¶

Overview¶

Generalized Additive Models (GAMs) extend linear regression by allowing smooth, non-parametric functions of predictors instead of assuming linear relationships. GAMs provide a flexible middle ground between rigid linear models and overly complex black-box methods like neural networks.

The key innovation of GAMs is replacing linear terms with smooth functions while maintaining interpretability:

Linear Regression:

\[Y = \beta_0 + \beta_1 X_1 + \beta_2 X_2 + \cdots + \beta_p X_p + \epsilon\]

Generalized Additive Model:

\[Y = \beta_0 + f_1(X_1) + f_2(X_2) + \cdots + f_p(X_p) + \epsilon\]

where each $f_j$ is a smooth function (typically a spline) learned from the data.

Why Use GAMs?¶

GAMs address several limitations of linear regression:

Non-linear relationships — Many real-world relationships are curved. GAMs capture these automatically without manually specifying polynomial degrees.
Different smoothness per variable — Each predictor can have its own degree of smoothing, controlled by a penalty parameter (lambda).
Interpretability — Unlike neural networks, each smooth function $f_j(X_j)$ can be visualized and interpreted independently. The additive structure means effects don't interact by default.
Automatic overfitting control — Regularization prevents spurious wiggles in the smooth functions while maintaining flexibility.
Uncertainty quantification — Unlike tree-based methods, GAMs provide confidence bands around predictions through standard errors.

Mathematical Formulation¶

The Basic GAM¶

For a continuous response, the Gaussian GAM is:

\[Y = \beta_0 + \sum_{j=1}^{p} f_j(X_j) + \epsilon, \quad \epsilon \sim N(0, \sigma^2)\]

Smooth Functions Using Splines¶

The smooth functions $f_j$ are typically represented as linear combinations of basis functions:

\[f_j(X_j) = \sum_{k=1}^{K_j} b_{jk}(X_j) \cdot c_{jk}\]

where: - $b_{jk}$ are basis functions (e.g., B-splines, thin-plate splines) - $c_{jk}$ are coefficients learned from data - $K_j$ is the number of basis functions for variable $j$

Regularization: Penalized Estimation¶

To avoid overfitting while allowing flexibility, GAMs use a roughness penalty:

\[\text{Loss} = \frac{1}{n} \sum_{i=1}^{n} \left(y_i - \beta_0 - \sum_{j=1}^{p} f_j(x_{ij})\right)^2 + \sum_{j=1}^{p} \lambda_j \int [f_j''(x)]^2 dx\]

where: - The first term is the sum of squared residuals - $\lambda_j$ controls the smoothness of the $j$-th function: larger $\lambda_j$ results in smoother (less wiggly) functions - The integral term measures the "roughness" (second derivative squared)

Degrees of Freedom and Effective DoF¶

Unlike linear regression where degrees of freedom equal the number of parameters, GAMs have effective degrees of freedom (eDoF) accounting for the smoothness penalty:

\[\text{eDoF}_j = \text{tr}(S_j)\]

where $S_j$ is a matrix depending on the basis and the penalty. The total model complexity is:

\[\text{eDoF}_{\text{total}} = 1 + \sum_{j=1}^{p} \text{eDoF}_j\]

This allows model comparison using the same criteria (AIC, BIC) as linear regression, with eDoF replacing traditional parameter counts.

Fitting GAMs: The Backfitting Algorithm¶

The most common fitting approach is backfitting, an iterative algorithm:

Initialize: $\hat{f}_j^{(0)} = 0$ for all $j$, and $\hat{\beta}_0 = \bar{y}$
For iteration $t$:
For each $j = 1, 2, \ldots, p$:
- Compute partial residuals: $r_{-j} = y - \hat{\beta}_0 - \sum_{k \neq j} \hat{f}_k(X_k)$
- Fit a smooth function to $(X_j, r_{-j})$ with penalty $\lambda_j$: $\hat{f}_j^{(t)} = S(r_{-j} | X_j, \lambda_j)$
Repeat until convergence (coefficients stabilize)

This decomposes the fitting problem into univariate smoothing problems, making GAMs computationally efficient compared to fitting high-dimensional non-parametric functions directly.

Types of Smooth Terms¶

Linear Terms¶

A linear term is included as:

\[f_j(X_j) = \beta_j X_j\]

This has no smoothness penalty and is useful when a relationship is genuinely linear.

Spline Terms (s)¶

Represented by basis functions with a smoothness penalty:

\[f_j(X_j) = \sum_{k=1}^{K_j} b_{jk}(X_j) c_{jk} + \lambda_j \int [f_j''(x)]^2 dx\]

Common choices: - Cubic B-splines: Smooth, locally-supported, computationally efficient - Thin-plate splines: Optimal in a smoothness sense, but computationally expensive

The df (degrees of freedom) parameter controls the flexibility: larger df allows more wiggles.

Cyclic Splines¶

For periodic data (e.g., time of day, day of week), cyclic splines enforce $f(0) = f(1)$ (or appropriate boundaries).

Python Implementation¶

Using statsmodels¶

The statsmodels.gam module provides GAM fitting:

import numpy as np
import pandas as pd
from statsmodels.gam.api import GLMGam, BSplines
import matplotlib.pyplot as plt

# Sample data
n = 500
np.random.seed(42)
X = np.random.uniform(0, 10, (n, 3))
y = (np.sin(X[:, 0]) + 0.5 * X[:, 1] + np.random.normal(0, 0.5, n))

# Create DataFrame
df = pd.DataFrame({
    'y': y,
    'x0': X[:, 0],
    'x1': X[:, 1],
    'x2': X[:, 2]
})

# Define smooth basis
x_spline = df[['x0', 'x1', 'x2']]
bs = BSplines(x_spline, df=[10, 3, 3], degree=[3, 2, 2])

# Fit GAM
formula = 'y ~ x0 + x1 + x2'
gam = GLMGam.from_formula(formula, data=df, smoother=bs)
results = gam.fit()

print(results.summary())

Using pyGAM¶

The pygam library provides a more user-friendly interface with automatic lambda selection via grid search:

from pygam import LinearGAM, s, l
from pygam.utils import generate_X_grid

# Fit GAM with smoothing spline on x0 and linear terms on x1, x2
gam = LinearGAM(s(0, n_splines=12) + l(1) + l(2))

# Automatic lambda selection via grid search
gam.gridsearch(X, y)

# Print summary
print(gam.summary())

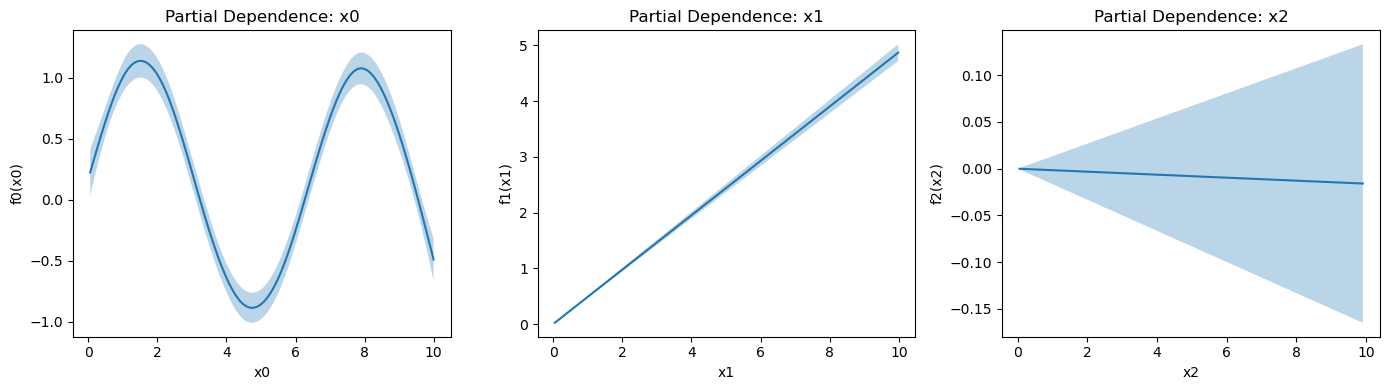

# Visualize partial dependence
fig, axes = plt.subplots(1, 3, figsize=(14, 4))
for i in range(3):
    XX = gam.generate_X_grid(term=i)
    ax = axes[i]
    ax.plot(XX[:, i], gam.partial_dependence(term=i, X=XX))
    ax.fill_between(XX[:, i],
                     gam.partial_dependence(term=i, X=XX, width=0.95)[1],
                     gam.partial_dependence(term=i, X=XX, width=0.95)[2],
                     alpha=0.3)
    ax.set_xlabel(f'x{i}')
    ax.set_ylabel(f'f{i}(x{i})')
    ax.set_title(f'Partial Dependence: x{i}')

plt.tight_layout()
plt.show()

Model Selection for GAMs¶

Smoothing Parameter Selection¶

The smoothing parameters $\lambda_j$ control the bias-variance tradeoff:

Larger $\lambda_j$ → smoother function (high bias, low variance)
Smaller $\lambda_j$ → wigglier function (low bias, high variance)

Common selection methods:

Generalized Cross-Validation (GCV): Balances fit and complexity, computationally efficient
UBRE (Un-biased Risk Estimator): Similar to AIC, works well for Gaussian responses
Automatic grid search: pyGAM automatically searches a grid of lambda values

Comparing GAMs¶

Once smooth functions are estimated, compare models using:

Deviance (residual sum of squares for Gaussian responses)
Effective DoF (reflects model complexity)
AIC/BIC with eDoF in place of parameter count:

$$\text{AIC} = -2 \log L + 2 \cdot \text{eDoF}$$

Adjusting Model Complexity¶

Control overall model complexity via:

Degrees of freedom per term (df parameter): fewer basis functions → smoother
Global smoothing penalty: multiply all lambdas by a constant
Model formula: include only relevant smooth terms

Advantages and Disadvantages¶

Advantages¶

Flexibility: Captures non-linear relationships without manual specification
Interpretability: Individual smooth functions are visualizable and understandable
Automatic smoothness selection: Many algorithms optimize smoothing parameters automatically
Uncertainty quantification: Provides confidence bands and standard errors
Efficiency: Backfitting makes fitting scalable to moderate dimensions
Fairness: Additive structure avoids interactions by default, making effects comparable

Disadvantages¶

Curse of dimensionality: Performance degrades as the number of predictors increases beyond 10-15 (though more efficient than non-parametric methods)
Assumption of additivity: Interactions must be explicitly included; more complex for high-order interactions
Smoothing parameter selection: Can be sensitive to the choice of lambda; grid search adds computation
Interpretability trade-off: More complex relationships are harder to summarize than simple parametric forms
Software dependence: Results may vary slightly across implementations (statsmodels vs. pyGAM vs. R's mgcv)

Practical Example: Housing Prices¶

Consider predicting house prices from multiple features. A GAM allows different degrees of smoothness for each predictor:

from pygam import LinearGAM, s, l
import pandas as pd

# Load housing data
house = pd.read_csv('house_sales.csv', sep='\t')

# Select predictors
predictors = ['SqFtTotLiving', 'SqFtLot', 'Bathrooms', 'Bedrooms', 'BldgGrade']
X = house[predictors].values
y = house['AdjSalePrice'].values

# Fit GAM: smooth spline on square footage, linear terms on others
gam = LinearGAM(
    s(0, n_splines=12) +     # SqFtTotLiving: smooth (likely non-linear)
    l(1) +                   # SqFtLot: linear
    l(2) +                   # Bathrooms: linear
    l(3) +                   # Bedrooms: linear
    l(4)                     # BldgGrade: linear
)

gam.gridsearch(X, y)
print(gam.summary())

# Predict on new data
new_house = pd.DataFrame({
    'SqFtTotLiving': [3000],
    'SqFtLot': [10000],
    'Bathrooms': [3.5],
    'Bedrooms': [4],
    'BldgGrade': [10]
})
prediction = gam.predict(new_house[predictors].values)
print(f"Predicted price: ${prediction[0]:,.0f}")

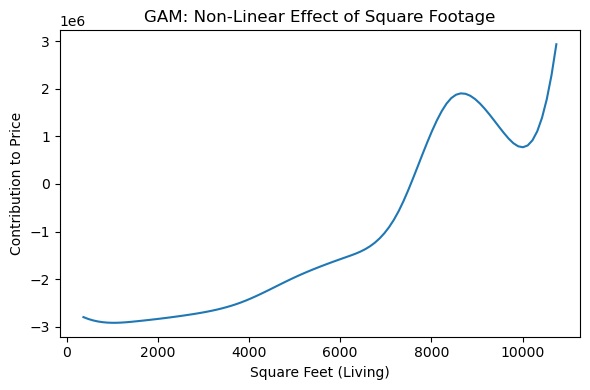

# Visualize the smooth term
fig, ax = plt.subplots(figsize=(6, 4))
XX = gam.generate_X_grid(term=0)
ax.plot(XX[:, 0], gam.partial_dependence(term=0, X=XX))
ax.set_xlabel('Square Feet (Living)')
ax.set_ylabel('Contribution to Price')
ax.set_title('GAM: Non-Linear Effect of Square Footage')
plt.tight_layout()
plt.show()

Summary¶

Generalized Additive Models provide a powerful, interpretable approach to non-linear regression:

Flexible smooth functions replace rigid linear terms while maintaining additivity
Automatic smoothing via regularization prevents overfitting
Individual visualization of each effect aids interpretation
Practical tools (statsmodels, pyGAM) make GAMs accessible for real applications
Trade-offs between flexibility and interpretability make GAMs ideal when moderate non-linearity is expected

When data suggests non-linear relationships and interpretation is important, GAMs offer an excellent balance between the simplicity of linear regression and the flexibility of fully non-parametric methods.
