Simple Linear Regression¶

Simple linear regression models the relationship between a single independent variable \(X\) and a dependent variable \(Y\) as a straight line:

\[ Y = \beta_0 + \beta_1 X + \varepsilon \]

where:

\(Y\) is the dependent variable (the outcome we are trying to predict).
\(X\) is the independent variable (the predictor).
\(\beta_0\) is the y-intercept of the regression line.
\(\beta_1\) is the slope of the regression line (the amount by which \(Y\) changes for a one-unit change in \(X\)).
\(\varepsilon\) represents the error term, accounting for the difference between the observed and predicted values.

Key assumptions:

Linearity: The model assumes a linear relationship between \(X\) and \(Y\).
Deterministic vs. Stochastic: The deterministic part of the model is \(\beta_0 + \beta_1 X\), while \(\varepsilon\) captures the stochastic (random) part, representing the variability in \(Y\) not explained by \(X\).

1. Visualizing the Relationship: Height and Weight¶

We begin with a concrete example — the relationship between height and weight among males — to build geometric intuition for regression.

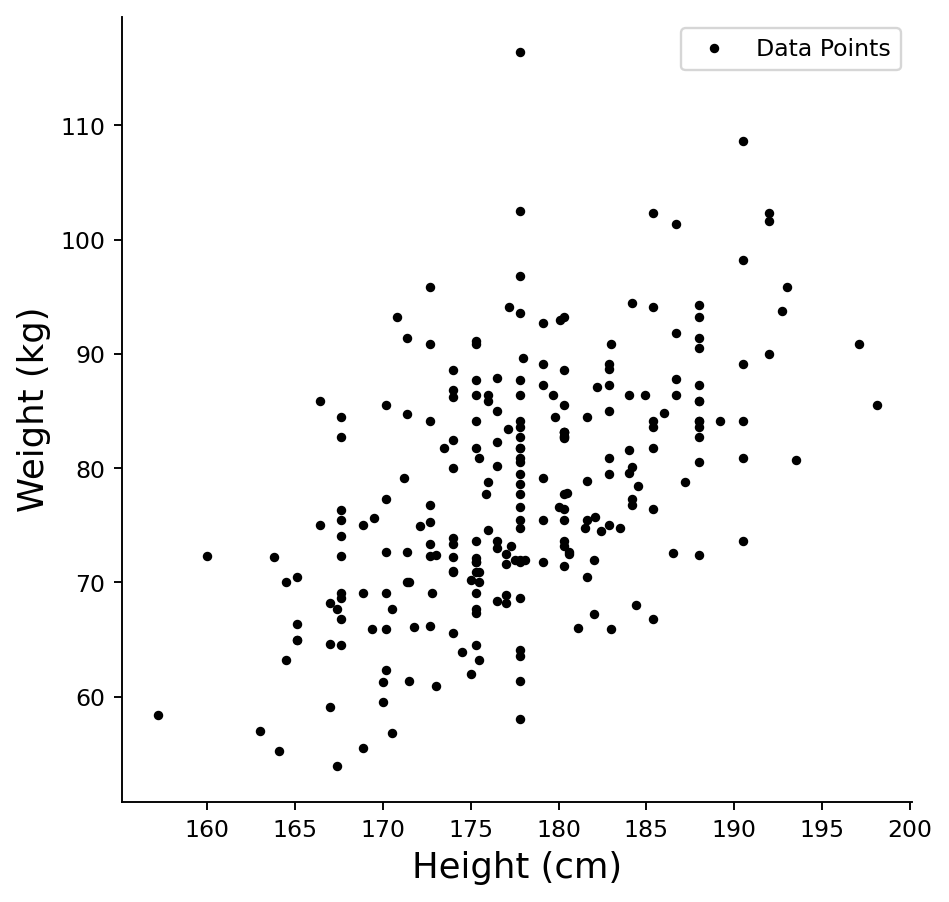

Scatter Plot¶

A scatter plot reveals the overall pattern: taller individuals tend to weigh more, suggesting a positive association.

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

# Load dataset from URL
data_url = "https://raw.githubusercontent.com/beccadsouza/Machine-Learning-Python/master/Datasets/height-weight.csv"
dataframe = pd.read_csv(data_url)

# Filter for male entries and select only the first 300 rows
male_height_weight_data = dataframe[dataframe.Gender == "Male"].loc[:300, ["Height", "Weight"]]

# Calculate means of height and weight
mean_height = male_height_weight_data.Height.mean()
mean_weight = male_height_weight_data.Weight.mean()

# Calculate standard deviations of height and weight
std_height = male_height_weight_data.Height.std()
std_weight = male_height_weight_data.Weight.std()

# Calculate correlation between height and weight
height_weight_corr = male_height_weight_data.corr().loc["Height", "Weight"]

# Plot scatter plot of height vs. weight
fig, ax = plt.subplots(figsize=(6, 6))
ax.plot(male_height_weight_data.Height, male_height_weight_data.Weight, '.k', label='Data Points')

ax.set_xlabel('Height (inches)', fontsize=15)
ax.set_ylabel('Weight (pounds)', fontsize=15)
ax.spines['top'].set_visible(False)
ax.spines['right'].set_visible(False)
ax.legend()
plt.show()

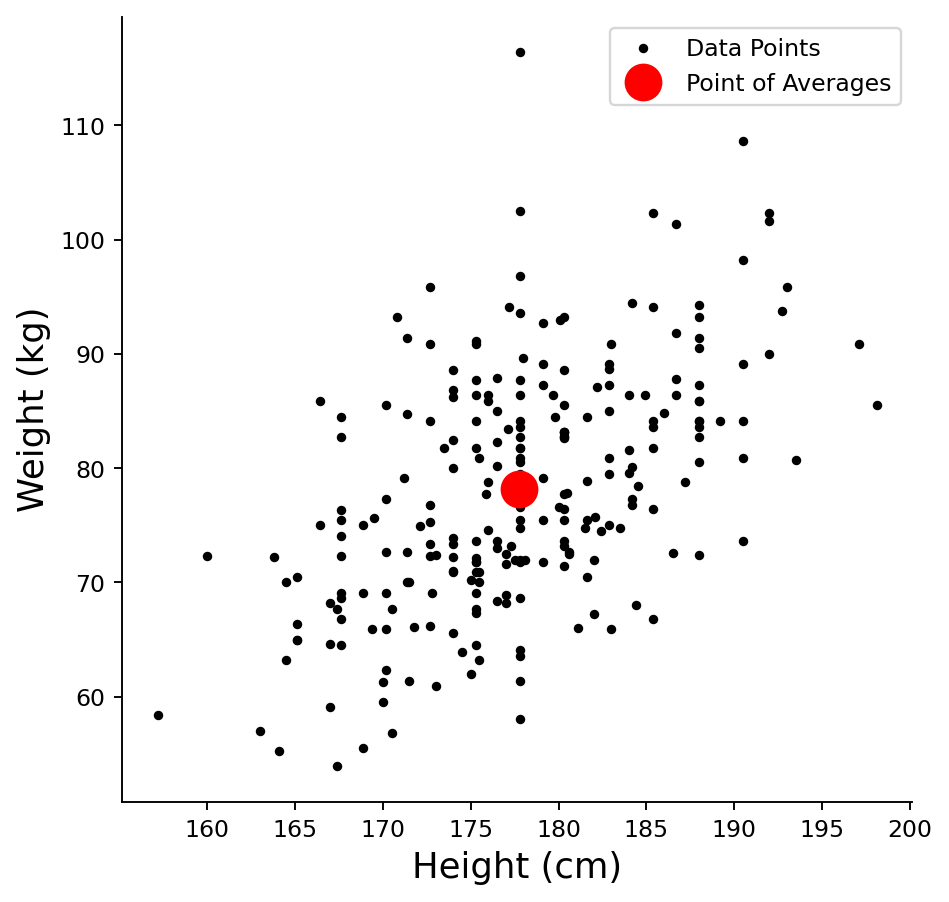

Point of Averages¶

The point of averages \((\bar{x}, \bar{y})\) is the center of the scatter plot. Every regression line passes through this point.

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

data_url = "https://raw.githubusercontent.com/beccadsouza/Machine-Learning-Python/master/Datasets/height-weight.csv"
dataframe = pd.read_csv(data_url)

male_height_weight_data = dataframe[dataframe.Gender == "Male"].loc[:300, ["Height", "Weight"]]

mean_height = male_height_weight_data.Height.mean()
mean_weight = male_height_weight_data.Weight.mean()
std_height = male_height_weight_data.Height.std()
std_weight = male_height_weight_data.Weight.std()
height_weight_corr = male_height_weight_data.corr().loc["Height", "Weight"]

fig, ax = plt.subplots(figsize=(6, 6))
ax.plot(male_height_weight_data.Height, male_height_weight_data.Weight, '.k', label='Data Points')
ax.plot([mean_height], [mean_weight], 'ro', markersize=15, label="Point of Averages")

ax.set_xlabel('Height (inches)', fontsize=15)
ax.set_ylabel('Weight (pounds)', fontsize=15)
ax.spines['top'].set_visible(False)
ax.spines['right'].set_visible(False)
ax.legend()
plt.show()

Standard Deviation Bands¶

The 2 SD bands mark the interval \([\bar{x} - 2\sigma_x,\; \bar{x} + 2\sigma_x]\) or \([\bar{y} - 2\sigma_y,\; \bar{y} + 2\sigma_y]\). Approximately 95% of the data falls within these bands (under normality).

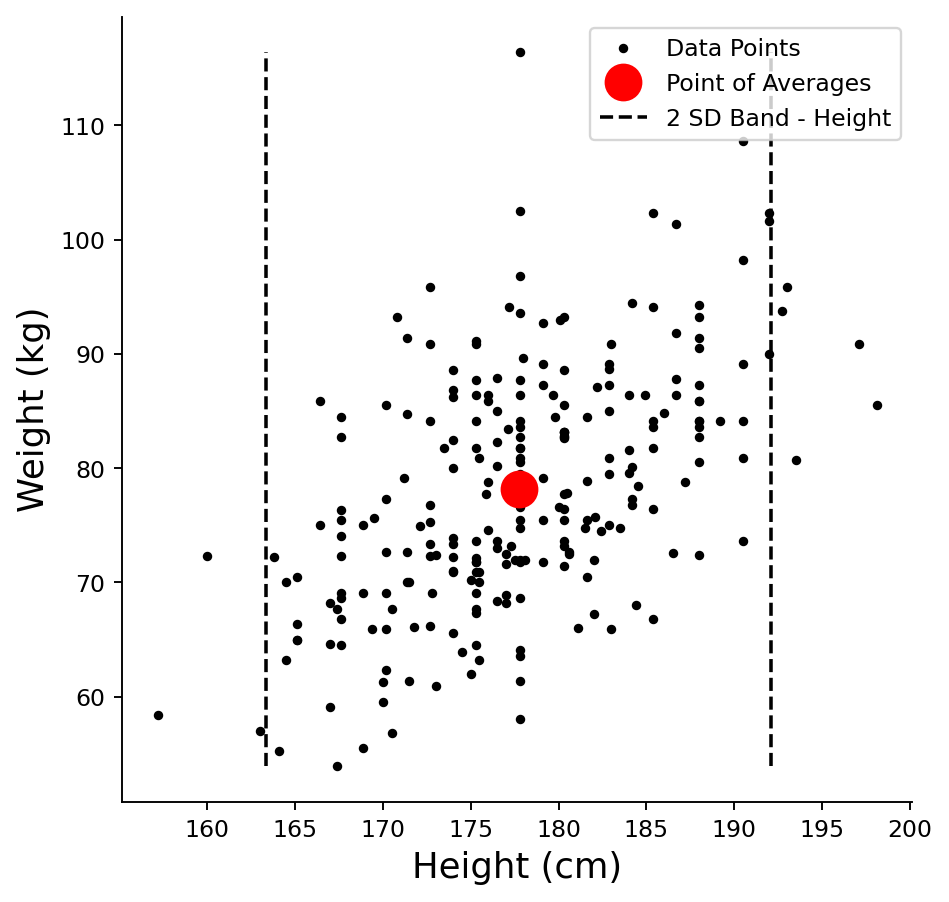

2 SD x-Band (Height)¶

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

def add_vertical_reference_line(axis, x_position, y_min, y_max, line_style, line_color='k', line_label=None):
    """Draws a vertical reference line on the given axis."""
    axis.plot([x_position, x_position], [y_min, y_max], linestyle=line_style, color=line_color, label=line_label)

data_url = "https://raw.githubusercontent.com/beccadsouza/Machine-Learning-Python/master/Datasets/height-weight.csv"
data = pd.read_csv(data_url)

male_height_weight_data = data[data.Gender == "Male"].loc[:300, ["Height", "Weight"]]

mean_height = male_height_weight_data.Height.mean()
mean_weight = male_height_weight_data.Weight.mean()
std_dev_height = male_height_weight_data.Height.std()
std_dev_weight = male_height_weight_data.Weight.std()
height_weight_corr = male_height_weight_data.corr().loc["Height", "Weight"]

fig, axis = plt.subplots(figsize=(6, 6))
axis.plot(male_height_weight_data.Height, male_height_weight_data.Weight, '.k', label="Data Points")
axis.plot([mean_height], [mean_weight], 'ro', markersize=15, label="Point of Averages")

add_vertical_reference_line(axis, mean_height - 2 * std_dev_height,
    male_height_weight_data.Weight.min(), male_height_weight_data.Weight.max(),
    '--', 'k', "2 SD Band - Height")
add_vertical_reference_line(axis, mean_height + 2 * std_dev_height,
    male_height_weight_data.Weight.min(), male_height_weight_data.Weight.max(),
    '--', 'k')

axis.set_xlabel('Height (inches)', fontsize=15)
axis.set_ylabel('Weight (pounds)', fontsize=15)
axis.spines['top'].set_visible(False)
axis.spines['right'].set_visible(False)
axis.legend()
plt.show()

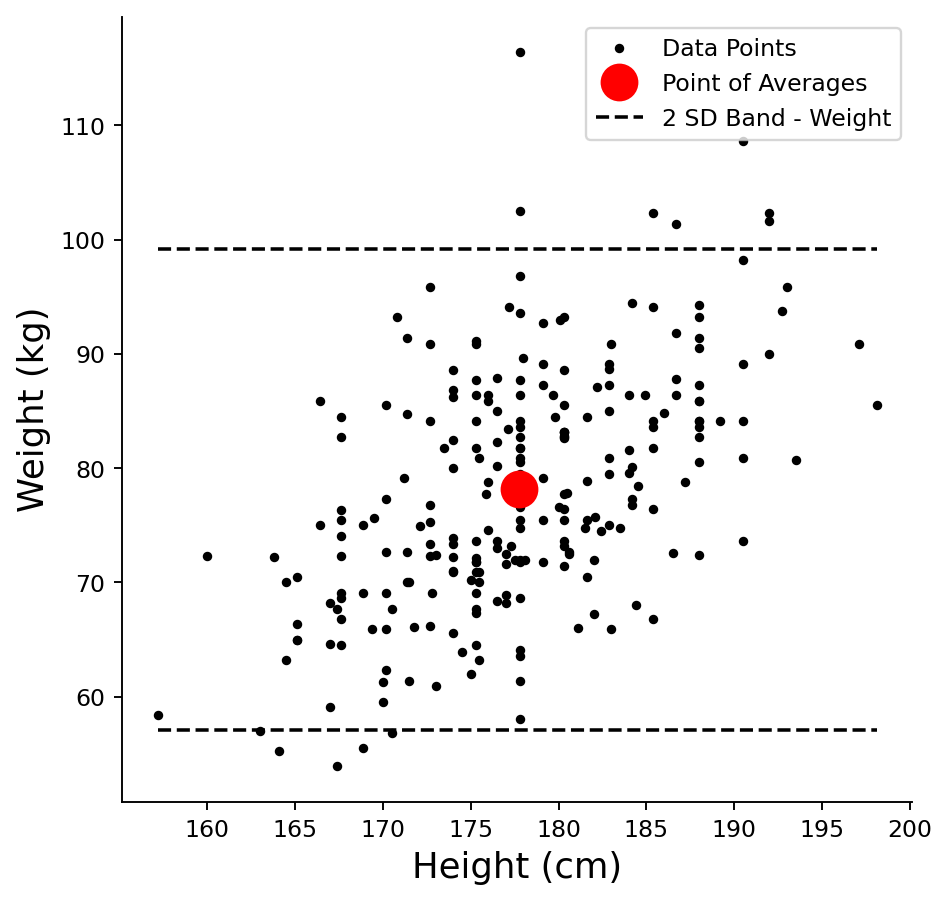

2 SD y-Band (Weight)¶

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

def add_horizontal_reference_line(axis, y_position, x_min, x_max, line_style, line_color='k', line_label=None):
    """Draws a horizontal reference line on the given axis."""
    axis.plot([x_min, x_max], [y_position, y_position], linestyle=line_style, color=line_color, label=line_label)

data_url = "https://raw.githubusercontent.com/beccadsouza/Machine-Learning-Python/master/Datasets/height-weight.csv"
data = pd.read_csv(data_url)

male_height_weight_data = data[data.Gender == "Male"].loc[:300, ["Height", "Weight"]]

mean_height = male_height_weight_data.Height.mean()
mean_weight = male_height_weight_data.Weight.mean()
std_dev_height = male_height_weight_data.Height.std()
std_dev_weight = male_height_weight_data.Weight.std()
height_weight_corr = male_height_weight_data.corr().loc["Height", "Weight"]

fig, axis = plt.subplots(figsize=(6, 6))
axis.plot(male_height_weight_data.Height, male_height_weight_data.Weight, '.k', label="Data Points")
axis.plot([mean_height], [mean_weight], 'ro', markersize=15, label="Point of Averages")

add_horizontal_reference_line(axis, mean_weight - 2 * std_dev_weight,
    male_height_weight_data.Height.min(), male_height_weight_data.Height.max(),
    '--', 'k', "2 SD Band - Weight")
add_horizontal_reference_line(axis, mean_weight + 2 * std_dev_weight,
    male_height_weight_data.Height.min(), male_height_weight_data.Height.max(),
    '--', 'k')

axis.set_xlabel('Height (inches)', fontsize=15)
axis.set_ylabel('Weight (pounds)', fontsize=15)
axis.spines['top'].set_visible(False)
axis.spines['right'].set_visible(False)
axis.legend()
plt.show()

The SD Line¶

The SD line passes through the point of averages with slope \(\pm \sigma_y / \sigma_x\). It connects points that are the same number of standard deviations away from the mean in both variables. When the correlation is positive, the positive SD line is more relevant; when negative, the negative SD line applies.

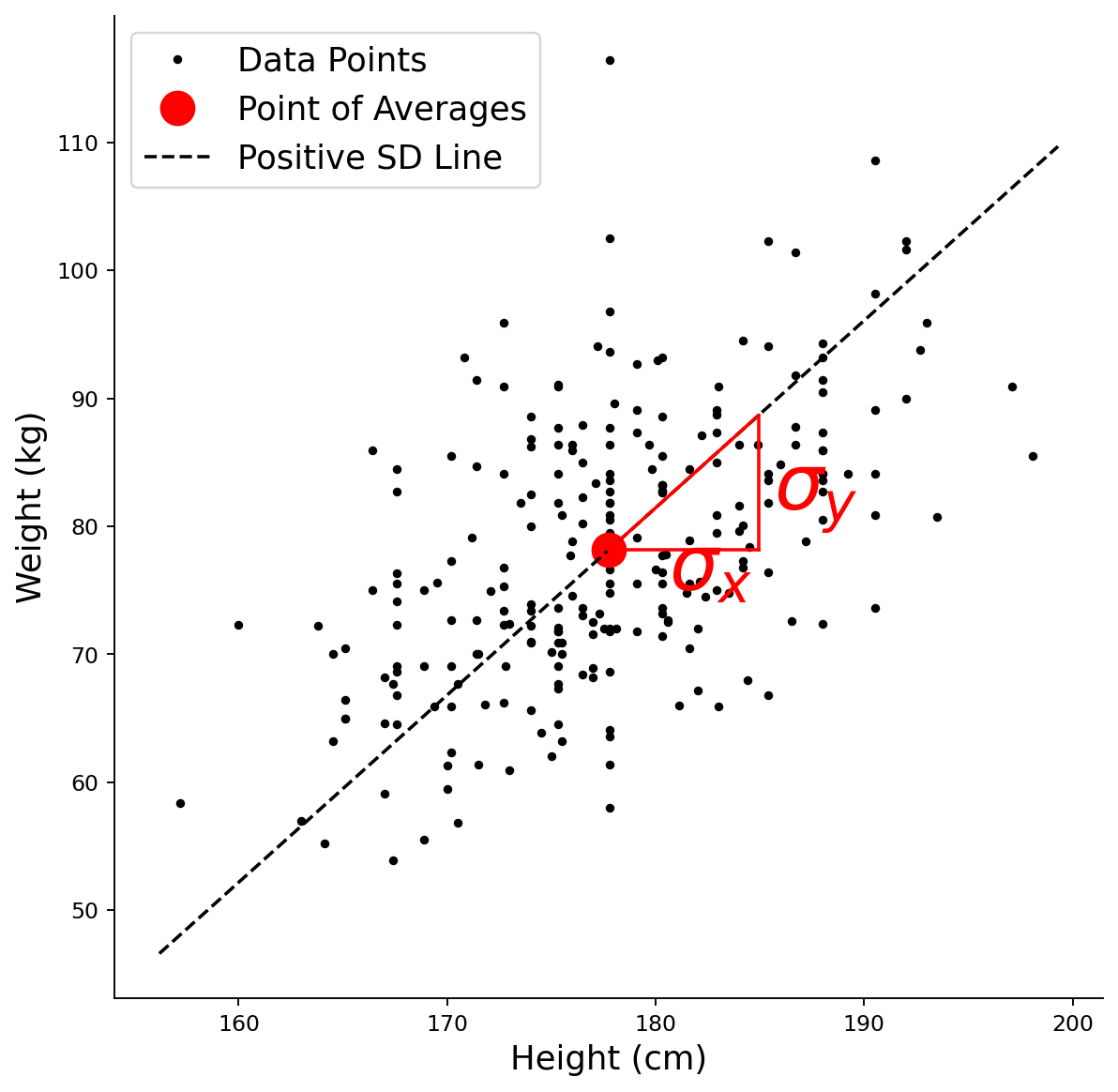

Positive SD Line¶

The positive SD line has slope \(+\sigma_y / \sigma_x\). For every increase of \(\sigma_x\) in height, weight increases by \(\sigma_y\).

import matplotlib.pyplot as plt
import pandas as pd

data_url = "https://raw.githubusercontent.com/beccadsouza/Machine-Learning-Python/master/Datasets/height-weight.csv"
data = pd.read_csv(data_url)

male_height_weight_data = data[data.Gender == "Male"].loc[:300, ["Height", "Weight"]]

mean_height = male_height_weight_data.Height.mean()
mean_weight = male_height_weight_data.Weight.mean()
std_dev_height = male_height_weight_data.Height.std()
std_dev_weight = male_height_weight_data.Weight.std()

fig, axis = plt.subplots(figsize=(8, 8))
axis.plot(male_height_weight_data.Height, male_height_weight_data.Weight, '.k', label="Data Points")
axis.plot([mean_height], [mean_weight], 'ro', markersize=15, label="Point of Averages")

# Positive SD Line spanning ±3 SD
axis.plot(
    [mean_height - 3 * std_dev_height, mean_height + 3 * std_dev_height],
    [mean_weight - 3 * std_dev_weight, mean_weight + 3 * std_dev_weight],
    linestyle="--", color='k', label="Positive SD Line"
)

# Annotate the SD triangle
axis.plot([mean_height, mean_height + std_dev_height], [mean_weight, mean_weight], '-r')
axis.plot([mean_height + std_dev_height, mean_height + std_dev_height],
          [mean_weight, mean_weight + std_dev_weight], '-r')
axis.plot([mean_height, mean_height + std_dev_height],
          [mean_weight, mean_weight + std_dev_weight], '-r')

axis.annotate("$\\sigma_x$",
    [mean_height + 0.4 * std_dev_height, mean_weight - 0.3 * std_dev_weight],
    fontsize=35, color="red")
axis.annotate("$\\sigma_y$",
    [mean_height + 1.1 * std_dev_height, mean_weight + 0.3 * std_dev_weight],
    fontsize=35, color="red")

axis.set_xlabel('Height (inches)', fontsize=15)
axis.set_ylabel('Weight (pounds)', fontsize=15)
axis.spines['top'].set_visible(False)
axis.spines['right'].set_visible(False)
axis.legend(fontsize=15)
plt.show()

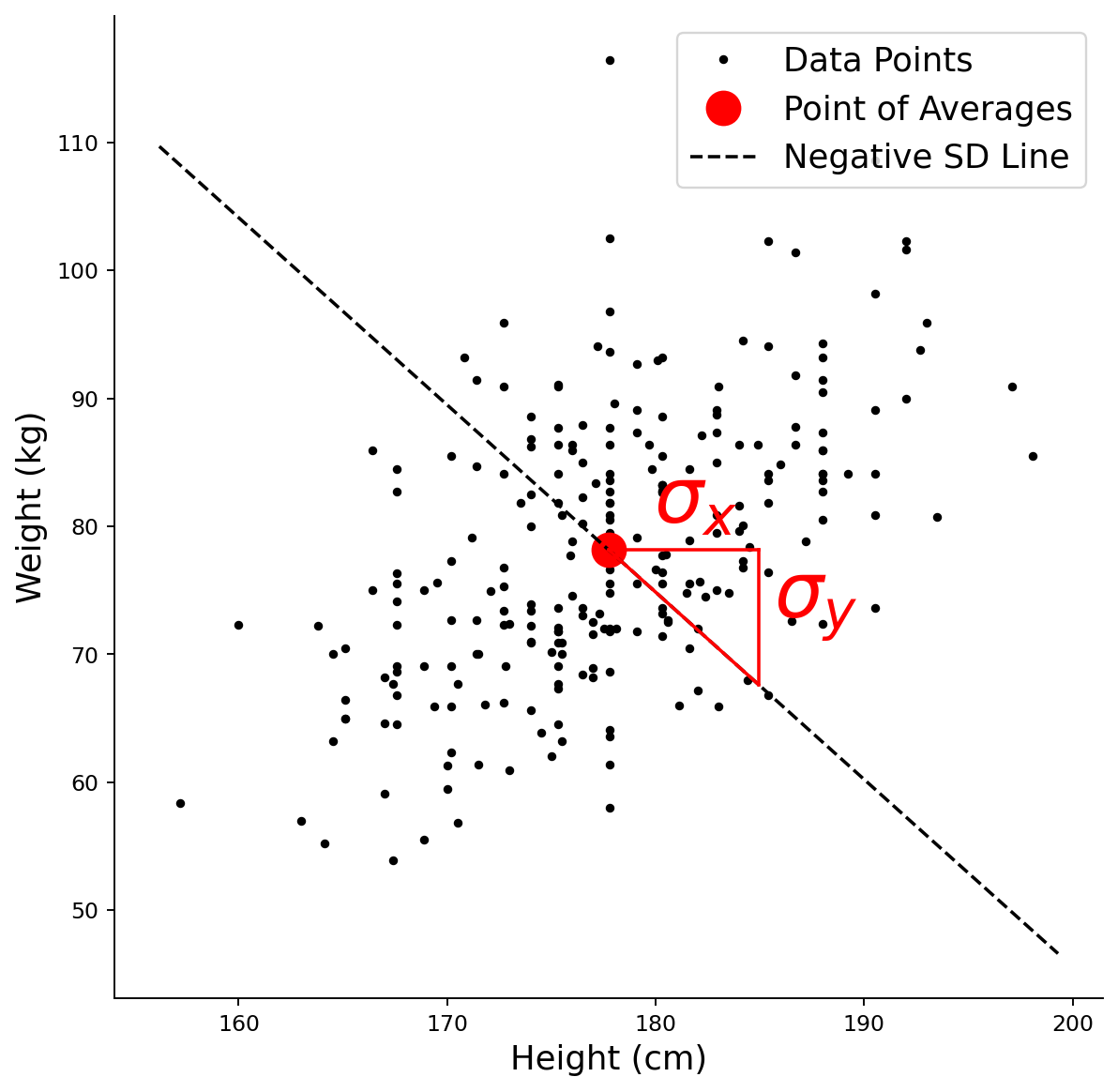

Negative SD Line¶

The negative SD line has slope \(-\sigma_y / \sigma_x\). For every increase of \(\sigma_x\) in height, weight decreases by \(\sigma_y\).

import matplotlib.pyplot as plt
import pandas as pd

data_url = "https://raw.githubusercontent.com/beccadsouza/Machine-Learning-Python/master/Datasets/height-weight.csv"
data = pd.read_csv(data_url)

male_height_weight_data = data[data.Gender == "Male"].loc[:300, ["Height", "Weight"]]

mean_height = male_height_weight_data.Height.mean()
mean_weight = male_height_weight_data.Weight.mean()
std_dev_height = male_height_weight_data.Height.std()
std_dev_weight = male_height_weight_data.Weight.std()

fig, axis = plt.subplots(figsize=(8, 8))
axis.plot(male_height_weight_data.Height, male_height_weight_data.Weight, '.k', label="Data Points")
axis.plot([mean_height], [mean_weight], 'ro', markersize=15, label="Point of Averages")

# Negative SD Line spanning ±3 SD
axis.plot(
    [mean_height - 3 * std_dev_height, mean_height + 3 * std_dev_height],
    [mean_weight + 3 * std_dev_weight, mean_weight - 3 * std_dev_weight],
    linestyle="--", color='k', label="Negative SD Line"
)

axis.plot([mean_height, mean_height + std_dev_height], [mean_weight, mean_weight], '-r')
axis.plot([mean_height + std_dev_height, mean_height + std_dev_height],
          [mean_weight, mean_weight - std_dev_weight], '-r')
axis.plot([mean_height, mean_height + std_dev_height],
          [mean_weight, mean_weight - std_dev_weight], '-r')

axis.annotate("$\\sigma_x$",
    [mean_height + 0.3 * std_dev_height, mean_weight + 0.2 * std_dev_weight],
    fontsize=35, color="red")
axis.annotate("$\\sigma_y$",
    [mean_height + 1.1 * std_dev_height, mean_weight - 0.5 * std_dev_weight],
    fontsize=35, color="red")

axis.set_xlabel('Height (inches)', fontsize=15)
axis.set_ylabel('Weight (pounds)', fontsize=15)
axis.spines['top'].set_visible(False)
axis.spines['right'].set_visible(False)
axis.legend(fontsize=15)
plt.show()

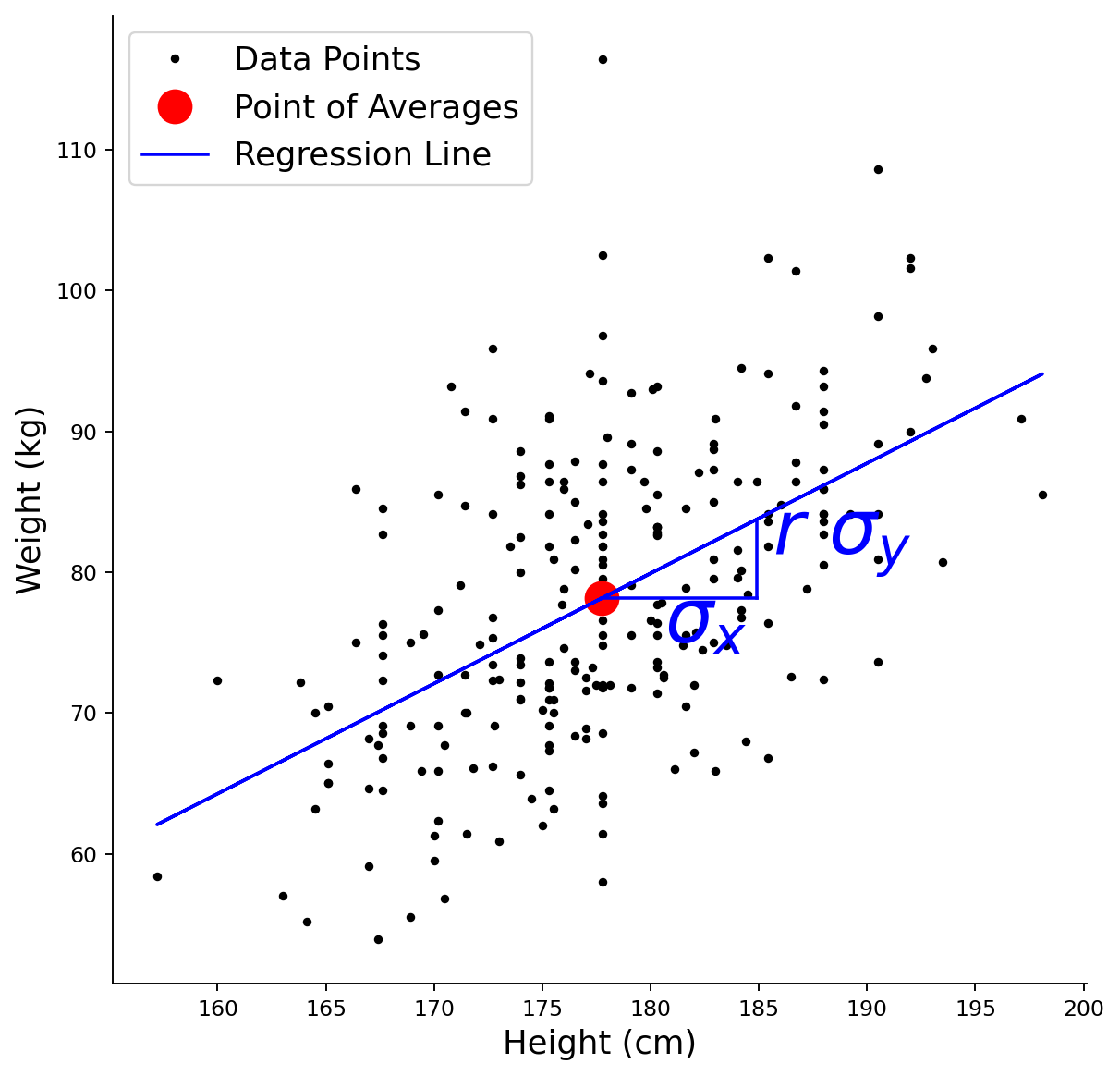

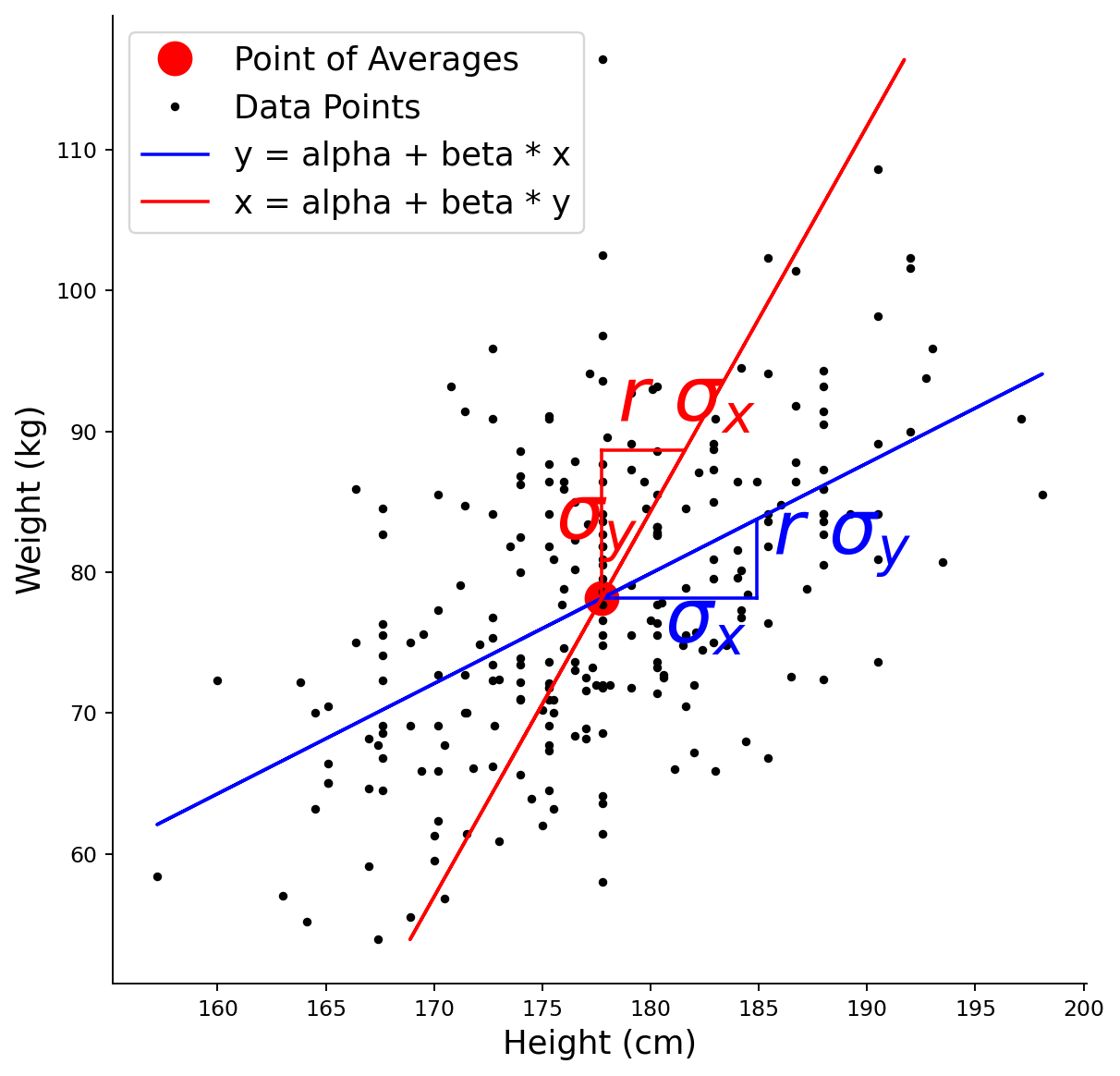

The Regression Line vs. the SD Line¶

The regression line has slope \(r \cdot \sigma_y / \sigma_x\), which is the SD line's slope multiplied by the correlation coefficient \(r\). Since \(|r| \leq 1\), the regression line is always flatter than (or equal to) the SD line. This flattening is the regression effect — predictions regress toward the mean.

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

data_url = "https://raw.githubusercontent.com/beccadsouza/Machine-Learning-Python/master/Datasets/height-weight.csv"
data = pd.read_csv(data_url)

male_data = data[data.Gender == "Male"].loc[:300, ["Height", "Weight"]]

mean_height = male_data.Height.mean()
mean_weight = male_data.Weight.mean()
std_dev_height = male_data.Height.std()
std_dev_weight = male_data.Weight.std()
correlation_coefficient = male_data[["Height", "Weight"]].corr().loc["Height", "Weight"]

# Regression predictions
x_values = np.array(male_data.Height)
y_pred = mean_weight + correlation_coefficient * (std_dev_weight / std_dev_height) * (x_values - mean_height)

fig, axis = plt.subplots(figsize=(8, 8))
axis.plot(male_data.Height, male_data.Weight, '.k', label="Data Points")
axis.plot([mean_height], [mean_weight], 'ro', markersize=15, label="Point of Averages")
axis.plot(x_values, y_pred, 'b', label="Regression Line")

# Annotate the regression triangle
axis.plot([mean_height, mean_height + std_dev_height], [mean_weight, mean_weight], '-b')
axis.plot([mean_height + std_dev_height, mean_height + std_dev_height],
          [mean_weight, mean_weight + correlation_coefficient * std_dev_weight], '-b')
axis.plot([mean_height, mean_height + std_dev_height],
          [mean_weight, mean_weight + correlation_coefficient * std_dev_weight], '-b')

axis.annotate("$\\sigma_x$",
    [mean_height + 0.4 * std_dev_height, mean_weight - 0.3 * std_dev_weight],
    fontsize=35, color="b")
axis.annotate("$r\\ \\sigma_y$",
    [mean_height + 1.1 * std_dev_height, mean_weight + 0.3 * std_dev_weight],
    fontsize=35, color="b")

axis.set_xlabel('Height (inches)', fontsize=15)
axis.set_ylabel('Weight (pounds)', fontsize=15)
axis.spines['top'].set_visible(False)
axis.spines['right'].set_visible(False)
axis.legend(fontsize=15)
plt.show()

2. The Two Regression Lines¶

There are two distinct regression lines depending on which variable is being predicted:

Regression of \(Y\) on \(X\) (predicting weight from height): \(y = \alpha + \beta x\)
Regression of \(X\) on \(Y\) (predicting height from weight): \(x = \alpha' + \beta' y\)

These two lines coincide only when \(|r| = 1\) (perfect correlation). Otherwise they form a "V" shape opening around the point of averages.

Both Regression Lines¶

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

data_url = "https://raw.githubusercontent.com/beccadsouza/Machine-Learning-Python/master/Datasets/height-weight.csv"
data = pd.read_csv(data_url)

male_height_weight_data = data[data.Gender == "Male"].loc[:300, ["Height", "Weight"]]

mean_height = male_height_weight_data.Height.mean()
mean_weight = male_height_weight_data.Weight.mean()
std_dev_height = male_height_weight_data.Height.std()
std_dev_weight = male_height_weight_data.Weight.std()
correlation_coefficient = male_height_weight_data.corr().loc["Height", "Weight"]

# Regression of Y on X
heights = np.array(male_height_weight_data.Height)
predicted_weights = mean_weight + correlation_coefficient * (std_dev_weight / std_dev_height) * (heights - mean_height)

# Regression of X on Y
weights = np.array(male_height_weight_data.Weight)
predicted_heights = mean_height + correlation_coefficient * (std_dev_height / std_dev_weight) * (weights - mean_weight)

fig, axis = plt.subplots(figsize=(8, 8))
axis.plot([mean_height], [mean_weight], 'ro', markersize=15, label="Point of Averages")
axis.plot(male_height_weight_data.Height, male_height_weight_data.Weight, '.k', label="Data Points")

# Y on X regression line (blue)
axis.plot(heights, predicted_weights, '-b', label="y = alpha + beta * x")
axis.plot([mean_height, mean_height + std_dev_height], [mean_weight, mean_weight], '-b')
axis.plot([mean_height + std_dev_height, mean_height + std_dev_height],
          [mean_weight, mean_weight + correlation_coefficient * std_dev_weight], '-b')
axis.plot([mean_height, mean_height + std_dev_height],
          [mean_weight, mean_weight + correlation_coefficient * std_dev_weight], '-b')

axis.annotate("$\\sigma_x$",
    [mean_height + 0.4 * std_dev_height, mean_weight - 0.3 * std_dev_weight],
    fontsize=35, color="b")
axis.annotate("$r\\ \\sigma_y$",
    [mean_height + 1.1 * std_dev_height, mean_weight + 0.3 * std_dev_weight],
    fontsize=35, color="b")

# X on Y regression line (red)
axis.plot(predicted_heights, weights, '-r', label="x = alpha + beta * y")
axis.plot([mean_height, mean_height], [mean_weight, mean_weight + std_dev_weight], '-r')
axis.plot([mean_height, mean_height + correlation_coefficient * std_dev_height],
          [mean_weight + std_dev_weight, mean_weight + std_dev_weight], '-r')
axis.plot([mean_height, mean_height + correlation_coefficient * std_dev_height],
          [mean_weight, mean_weight + std_dev_weight], '-r')

axis.annotate("$\\sigma_y$",
    [mean_height - 0.3 * std_dev_height, mean_weight + 0.4 * std_dev_weight],
    fontsize=35, color="r")
axis.annotate("$r\\ \\sigma_x$",
    [mean_height + 0.1 * std_dev_height, mean_weight + 1.2 * std_dev_weight],
    fontsize=35, color="r")

axis.set_xlabel('Height (inches)', fontsize=15)
axis.set_ylabel('Weight (pounds)', fontsize=15)
axis.legend(fontsize=15)
axis.spines['top'].set_visible(False)
axis.spines['right'].set_visible(False)
plt.show()

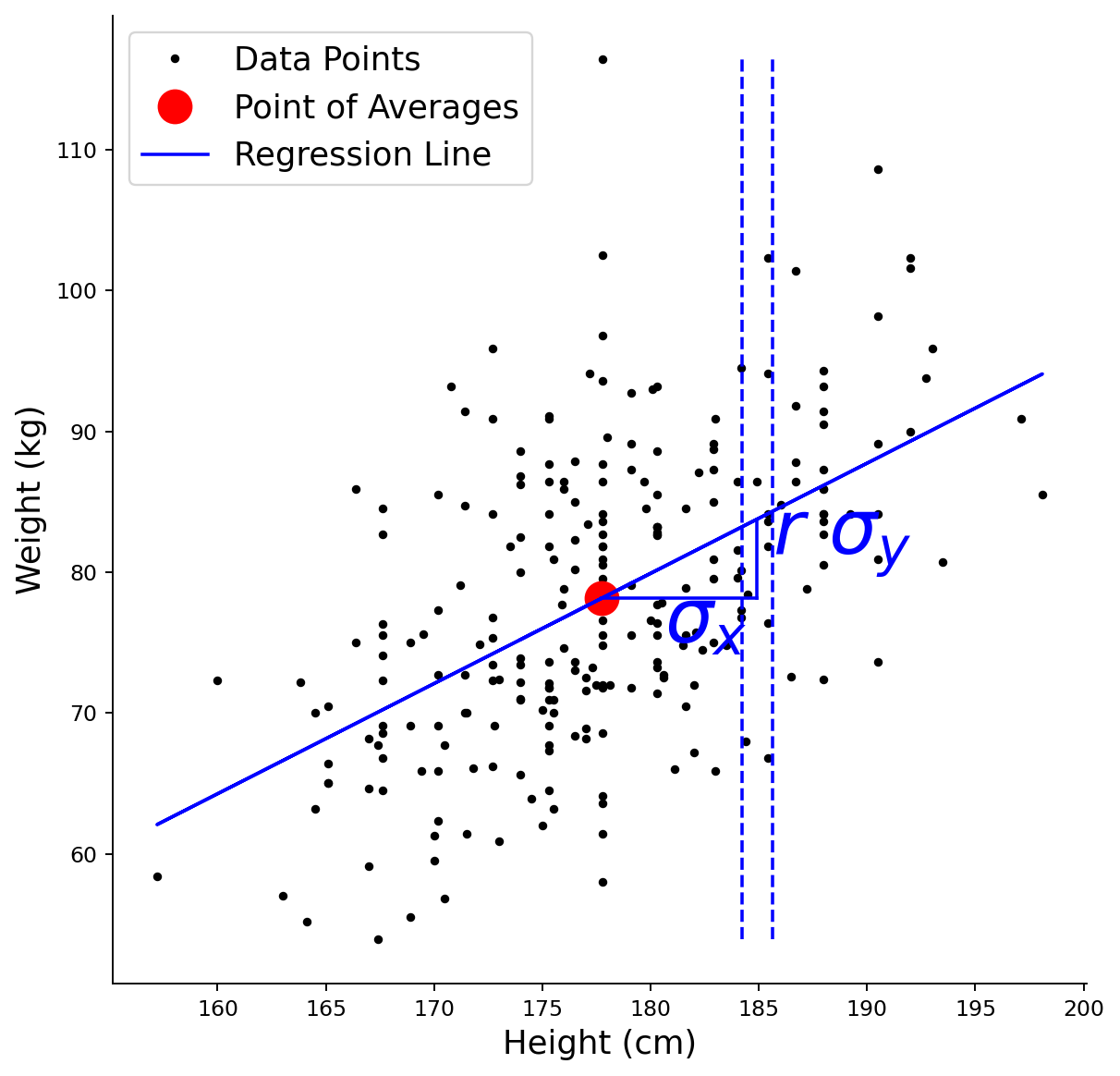

Regression of Y on X with Vertical Strip¶

Selecting a narrow vertical strip of data (at a fixed height value) and examining the average weight within that strip illustrates how the regression line predicts the conditional mean.

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

data_url = "https://raw.githubusercontent.com/beccadsouza/Machine-Learning-Python/master/Datasets/height-weight.csv"
data = pd.read_csv(data_url)

male_data = data[data.Gender == "Male"].loc[:300, ["Height", "Weight"]]

mean_height = male_data.Height.mean()
mean_weight = male_data.Weight.mean()
std_dev_height = male_data.Height.std()
std_dev_weight = male_data.Weight.std()
correlation_coefficient = male_data[["Height", "Weight"]].corr().loc["Height", "Weight"]

x_values = np.array(male_data.Height)
y_pred = mean_weight + correlation_coefficient * (std_dev_weight / std_dev_height) * (x_values - mean_height)

fig, axis = plt.subplots(figsize=(8, 8))
axis.plot(male_data.Height, male_data.Weight, '.k', label="Data Points")

# Vertical strip at mean + ~1 SD
axis.plot(
    [mean_height + 0.9 * std_dev_height, mean_height + 0.9 * std_dev_height],
    [male_data.Weight.min(), male_data.Weight.max()], '--b')
axis.plot(
    [mean_height + 1.1 * std_dev_height, mean_height + 1.1 * std_dev_height],
    [male_data.Weight.min(), male_data.Weight.max()], '--b')

axis.plot([mean_height], [mean_weight], 'ro', markersize=15, label="Point of Averages")
axis.plot(x_values, y_pred, 'b', label="Regression Line")

axis.plot([mean_height, mean_height + std_dev_height], [mean_weight, mean_weight], '-b')
axis.plot([mean_height + std_dev_height, mean_height + std_dev_height],
          [mean_weight, mean_weight + correlation_coefficient * std_dev_weight], '-b')
axis.plot([mean_height, mean_height + std_dev_height],
          [mean_weight, mean_weight + correlation_coefficient * std_dev_weight], '-b')

axis.annotate("$\\sigma_x$",
    [mean_height + 0.4 * std_dev_height, mean_weight - 0.3 * std_dev_weight],
    fontsize=35, color="b")
axis.annotate("$r\\ \\sigma_y$",
    [mean_height + 1.1 * std_dev_height, mean_weight + 0.3 * std_dev_weight],
    fontsize=35, color="b")

axis.set_xlabel('Height (inches)', fontsize=15)
axis.set_ylabel('Weight (pounds)', fontsize=15)
axis.spines['top'].set_visible(False)
axis.spines['right'].set_visible(False)
axis.legend(fontsize=15)
plt.show()

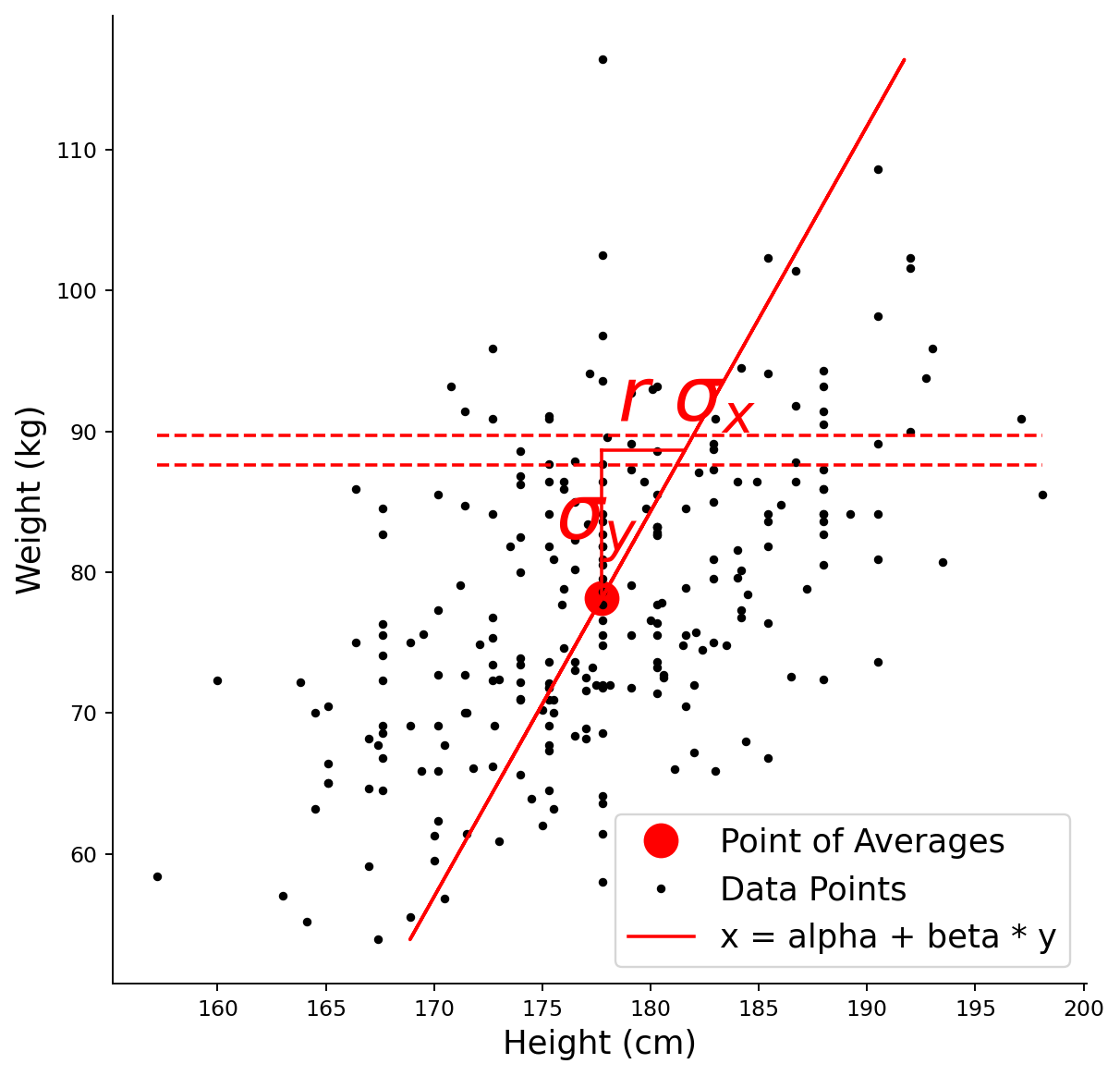

Regression of X on Y with Horizontal Strip¶

Similarly, a horizontal strip at a fixed weight value shows the conditional mean of height.

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

data_url = "https://raw.githubusercontent.com/beccadsouza/Machine-Learning-Python/master/Datasets/height-weight.csv"
data = pd.read_csv(data_url)

male_height_weight_data = data[data.Gender == "Male"].loc[:300, ["Height", "Weight"]]

mean_height = male_height_weight_data.Height.mean()
mean_weight = male_height_weight_data.Weight.mean()
std_dev_height = male_height_weight_data.Height.std()
std_dev_weight = male_height_weight_data.Weight.std()
correlation_coefficient = male_height_weight_data.corr().loc["Height", "Weight"]

heights = np.array(male_height_weight_data.Height)
predicted_weights = mean_weight + correlation_coefficient * (std_dev_weight / std_dev_height) * (heights - mean_height)
weights = np.array(male_height_weight_data.Weight)
predicted_heights = mean_height + correlation_coefficient * (std_dev_height / std_dev_weight) * (weights - mean_weight)

fig, axis = plt.subplots(figsize=(8, 8))
axis.plot([mean_height], [mean_weight], 'ro', markersize=15, label="Point of Averages")
axis.plot(male_height_weight_data.Height, male_height_weight_data.Weight, '.k', label="Data Points")

# Horizontal strip at mean + ~1 SD weight
axis.plot(
    [male_height_weight_data.Height.min(), male_height_weight_data.Height.max()],
    [mean_weight + 0.9 * std_dev_weight, mean_weight + 0.9 * std_dev_weight], '--r')
axis.plot(
    [male_height_weight_data.Height.min(), male_height_weight_data.Height.max()],
    [mean_weight + 1.1 * std_dev_weight, mean_weight + 1.1 * std_dev_weight], '--r')

axis.plot(predicted_heights, weights, '-r', label="x = alpha + beta * y")
axis.plot([mean_height, mean_height], [mean_weight, mean_weight + std_dev_weight], '-r')
axis.plot([mean_height, mean_height + correlation_coefficient * std_dev_height],
          [mean_weight + std_dev_weight, mean_weight + std_dev_weight], '-r')
axis.plot([mean_height, mean_height + correlation_coefficient * std_dev_height],
          [mean_weight, mean_weight + std_dev_weight], '-r')

axis.annotate("$\\sigma_y$",
    [mean_height - 0.3 * std_dev_height, mean_weight + 0.4 * std_dev_weight],
    fontsize=35, color="r")
axis.annotate("$r\\ \\sigma_x$",
    [mean_height + 0.1 * std_dev_height, mean_weight + 1.2 * std_dev_weight],
    fontsize=35, color="r")

axis.set_xlabel('Height (inches)', fontsize=15)
axis.set_ylabel('Weight (pounds)', fontsize=15)
axis.legend(fontsize=15)
axis.spines['top'].set_visible(False)
axis.spines['right'].set_visible(False)
plt.show()

3. Closed-Form Solution¶

Reference: Khan Academy — Calculating the Equation of a Regression Line

L2 Loss¶

The objective is to find parameters \(\alpha\) and \(\beta\) that minimize the mean squared error:

\[ l = \frac{1}{n} \sum_{i=1}^n (\alpha + \beta x_i - y_i)^2 \]

Normal Equations¶

Setting the partial derivatives to zero:

\[ \begin{array}{lll} \displaystyle \frac{\partial l}{\partial \alpha} = \frac{2}{n} \sum_{i=1}^n \left((\alpha + \beta x_i) - y_i\right) = 0 & \Rightarrow & 2\alpha + 2\beta \bar{x} - 2\bar{y} = 0 \\[6pt] \displaystyle \frac{\partial l}{\partial \beta} = \frac{2}{n} \sum_{i=1}^n \left((\alpha + \beta x_i) - y_i\right) x_i = 0 & \Rightarrow & 2\alpha \bar{x} + 2\beta \overline{x^2} - 2\overline{xy} = 0 \end{array} \]

Solution¶

Solving the normal equations yields:

\[ \begin{array}{lll} \beta &=& \displaystyle \frac{\overline{xy} - \bar{x}\bar{y}}{\overline{x^2} - (\bar{x})^2} = \frac{\text{Cov}(X,Y)}{\text{Var}(X)} = \frac{\rho \sqrt{\text{Var}(X)} \sqrt{\text{Var}(Y)}}{\text{Var}(X)} = \frac{\rho \sqrt{\text{Var}(Y)}}{\sqrt{\text{Var}(X)}} = \rho \frac{\sigma_y}{\sigma_x} \\[8pt] \alpha &=& \displaystyle -\rho \frac{\sigma_y}{\sigma_x} \bar{x} + \bar{y} \end{array} \]

Regression Line Equation¶

Substituting back:

\[ \begin{array}{lll} y &=& \alpha + \beta x \\[4pt] &=& \displaystyle -\rho \frac{\sigma_y}{\sigma_x}\bar{x} + \bar{y} + \rho \frac{\sigma_y}{\sigma_x} x \\[4pt] &=& \displaystyle \rho \frac{\sigma_y}{\sigma_x}(x - \bar{x}) + \bar{y} \end{array} \]

In standardized form:

\[ \frac{y - \bar{y}}{\sigma_y} = \rho \frac{x - \bar{x}}{\sigma_x} \]

This elegant result says: the predicted value of \(y\) in standard units equals \(r\) times the observed value of \(x\) in standard units.

4. Application: Linear Regression in Finance¶

In finance, simple linear regression is used extensively to model the relationship between an individual asset's returns and a market benchmark's returns. The slope coefficient \(\beta\) in this context is the market beta — a measure of systematic risk.

AAPL vs SPY Daily Returns¶

from sklearn.linear_model import LinearRegression
import yfinance as yf
import matplotlib.pyplot as plt
import pandas as pd

tickers = ["SPY", "AAPL"]

spy_data = yf.Ticker(tickers[0]).history(period='max')
aapl_data = yf.Ticker(tickers[1]).history(period='max')

spy_data[tickers[0]] = spy_data['Close'].pct_change()
aapl_data[tickers[1]] = aapl_data['Close'].pct_change()

daily_returns = pd.merge(spy_data[[tickers[0]]], aapl_data[[tickers[1]]],
                         left_index=True, right_index=True).dropna()

# Train/test split
x_train = daily_returns.iloc[-200:-100, 0:1].values
y_train = daily_returns.iloc[-200:-100, 1].values
x_test = daily_returns.iloc[-100:, 0:1].values
y_test = daily_returns.iloc[-100:, 1].values

print(f"x_train shape: {x_train.shape}")
print(f"y_train shape: {y_train.shape}")
print(f"x_test shape: {x_test.shape}")
print(f"y_test shape: {y_test.shape}\n")

model = LinearRegression()
model.fit(x_train, y_train)

print('Slope (Beta) of regression line:', f"{model.coef_[0]:.4f}")
print('Intercept (Alpha) of regression line:', f"{model.intercept_:.4f}")

fig, axes = plt.subplots(1, 2, figsize=(12, 3))

for ax, x, y, title in zip(axes, (x_train, x_test), (y_train, y_test), ("Training Data", "Testing Data")):
    y_pred = model.predict(x)
    ax.plot(x, y, "o", label="Actual Data")
    ax.plot(x, y_pred, "--r", alpha=0.3, label="Linear Regression")
    ax.set_title(title)
    ax.set_xlabel(tickers[0] + " Daily Return", loc='right')
    ax.set_ylabel(tickers[1] + " Daily Return", loc='top')
    ax.legend()
    ax.spines['top'].set_visible(False)
    ax.spines['right'].set_visible(False)
    ax.spines['bottom'].set_position('zero')
    ax.spines['left'].set_position('zero')

plt.tight_layout()
plt.show()

WMT vs SPY Daily Returns¶

This example includes joint histograms to visualize the marginal distributions of both return series alongside the scatter plot and regression line.

import yfinance as yf
import numpy as np
import matplotlib.pyplot as plt
from sklearn.linear_model import LinearRegression

ticker_wmt = "WMT"
ticker_spy = "SPY"

wmt_data = yf.Ticker(ticker_wmt).history(period='max')
spy_data = yf.Ticker(ticker_spy).history(period='max')

wmt_data[ticker_wmt] = wmt_data['Close'].pct_change()
spy_data[ticker_spy] = spy_data['Close'].pct_change()

daily_returns = wmt_data[[ticker_wmt]].join(spy_data[[ticker_spy]], how='inner').dropna()

spy_returns = daily_returns[ticker_spy].to_numpy().reshape(-1, 1)
wmt_returns = daily_returns[ticker_wmt].to_numpy()

model = LinearRegression()
model.fit(spy_returns, wmt_returns)
regression_line = model.predict(spy_returns)

fig, axes = plt.subplots(2, 2, figsize=(8, 8))

# SPY histogram
axes[0, 0].hist(spy_returns, density=True, bins=50, color='skyblue', edgecolor='black')
axes[0, 0].set_xlim(-0.2, 0.2)
axes[0, 0].set_xticks([-0.2, -0.1, 0, 0.1, 0.2])
axes[0, 0].set_title(f"{ticker_spy} Daily Returns Histogram")

axes[0, 1].axis('off')

# Scatter + regression
axes[1, 0].plot(spy_returns, wmt_returns, '.', color='purple', label='Data Points')
axes[1, 0].plot(spy_returns, regression_line, 'r-', label='Regression Line')
axes[1, 0].set_xlabel(f"{ticker_spy} Daily Returns")
axes[1, 0].set_ylabel(f"{ticker_wmt} Daily Returns")
axes[1, 0].set_xlim(-0.2, 0.2)
axes[1, 0].set_ylim(-0.2, 0.2)
axes[1, 0].set_xticks([-0.2, -0.1, 0, 0.1, 0.2])
axes[1, 0].set_yticks([-0.2, -0.1, 0, 0.1, 0.2])
axes[1, 0].legend()

# WMT histogram (horizontal)
axes[1, 1].hist(wmt_returns, density=True, bins=50, orientation='horizontal',
                color='lightgreen', edgecolor='black')
axes[1, 1].set_ylim(-0.2, 0.2)
axes[1, 1].set_yticks([-0.2, -0.1, 0, 0.1, 0.2])
axes[1, 1].set_title(f"{ticker_wmt} Daily Returns Histogram")

plt.tight_layout()
plt.show()
