Multiple Linear Regression¶

The Model¶

Multiple linear regression extends simple linear regression to include multiple predictor variables:

\[ y_i = \beta_0 + \beta_1 x_{i1} + \beta_2 x_{i2} + \cdots + \beta_p x_{ip} + \varepsilon_i \]

In matrix notation, this can be written compactly as:

\[ \mathbf{y} = X\boldsymbol{\beta} + \boldsymbol{\varepsilon} \]

where \(X\) is the \(n \times (p+1)\) design matrix (with a column of ones for the intercept), \(\boldsymbol{\beta}\) is the \((p+1) \times 1\) coefficient vector, and \(\boldsymbol{\varepsilon}\) is the \(n \times 1\) error vector.

Interaction Terms¶

In many applications, the effect of one predictor on the response depends on the level of another predictor. An interaction term captures this combined effect. For example, with predictors TV and Radio:

\[ \hat{y} = \beta_0 + \beta_1 \cdot \text{TV} + \beta_2 \cdot \text{Radio} + \beta_3 \cdot (\text{TV} \times \text{Radio}) \]

A positive and significant interaction coefficient \(\beta_3\) indicates a synergistic effect: the combined impact of both predictors is greater than the sum of their individual effects.

Implementation with scikit-learn¶

Random Train-Test Split¶

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from sklearn.model_selection import train_test_split
from sklearn.linear_model import LinearRegression

# Load the Advertising dataset
url = 'https://raw.githubusercontent.com/justmarkham/scikit-learn-videos/master/data/Advertising.csv'
df = pd.read_csv(url, usecols=[1, 2, 3, 4])
print(df.head(), end="\n\n")

# Add an interaction term between TV and Radio
df['TV:Radio'] = df['TV'] * df['Radio']
print(df.head(), end="\n\n")

# Define test size ratio
test_size_ratio = 0.3

# Split data into features (X) and target (y)
X = df[['TV', 'Radio', 'TV:Radio']]
y = df['Sales']

# Perform the train-test split
x_train, x_test, y_train, y_test = train_test_split(X, y, test_size=test_size_ratio, random_state=42)
print("x_train.head()")
print(x_train.head(), end="\n\n")
print("y_train.head()")
print(y_train.head(), end="\n\n")

# Initialize and train the linear regression model
model = LinearRegression()
model.fit(x_train, y_train)

# Make predictions on both the training and test data
y_train_pred = model.predict(x_train)
y_test_pred = model.predict(x_test)

# Print model coefficients and intercept
print(f"Model Intercept: {model.intercept_:.4f}")
print(f"Model Coefficients: {np.round(model.coef_, 4)}\n")

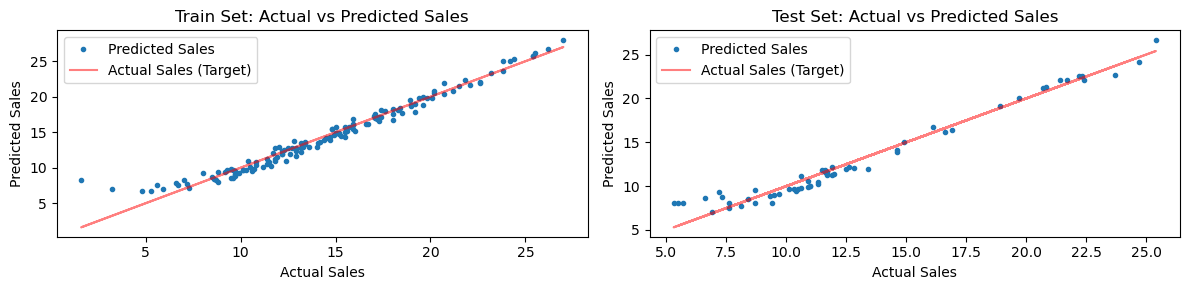

# Visualize predictions
fig, axes = plt.subplots(1, 2, figsize=(12, 3))

for ax, title, y_actual, y_pred in zip(axes, ("Train Set", "Test Set"), (y_train, y_test), (y_train_pred, y_test_pred)):
    ax.set_title(f"{title}: Actual vs Predicted Sales")
    ax.plot(y_actual, y_pred, '.', label="Predicted Sales")
    ax.plot(y_actual, y_actual, '-r', alpha=0.5, label="Actual Sales (Target)")
    ax.set_xlabel('Actual Sales')
    ax.set_ylabel('Predicted Sales')
    ax.legend()

plt.tight_layout()
plt.show()

Deterministic Train-Test Split¶

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from sklearn.linear_model import LinearRegression

# Load data
url = 'https://raw.githubusercontent.com/justmarkham/scikit-learn-videos/master/data/Advertising.csv'
df = pd.read_csv(url, usecols=[1, 2, 3, 4])

# Add interaction term
df['TV:Radio'] = df['TV'] * df['Radio']

# Deterministic split
num_total_observations = df.shape[0]
test_ratio = 0.3
num_train_observations = int(num_total_observations * (1 - test_ratio))

train_data = df.iloc[:num_train_observations]
test_data = df.iloc[num_train_observations:]

x_train = train_data[['TV', 'Radio', 'TV:Radio']]
y_train = train_data['Sales']
x_test = test_data[['TV', 'Radio', 'TV:Radio']]
y_test = test_data['Sales']

# Fit model
model = LinearRegression()
model.fit(x_train, y_train)

y_train_pred = model.predict(x_train)
y_test_pred = model.predict(x_test)

print(f"Model Intercept: {model.intercept_:.4f}")
print(f"Model Coefficients: {np.round(model.coef_, 4)}\n")

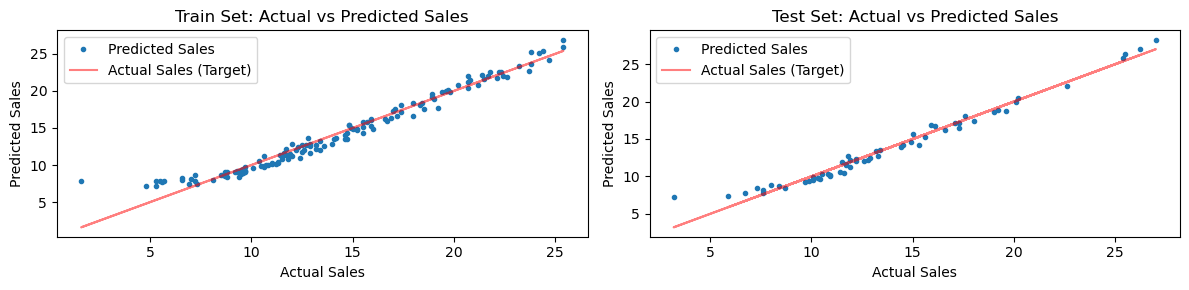

# Visualize
fig, axes = plt.subplots(1, 2, figsize=(12, 3))

for ax, title, y_actual, y_pred in zip(axes, ("Train Set", "Test Set"), (y_train, y_test), (y_train_pred, y_test_pred)):
    ax.set_title(f"{title}: Actual vs Predicted Sales")
    ax.plot(y_actual, y_pred, '.', label="Predicted Sales")
    ax.plot(y_actual, y_actual, '-r', alpha=0.5, label="Actual Sales (Target)")
    ax.set_xlabel('Actual Sales')
    ax.set_ylabel('Predicted Sales')
    ax.legend()

plt.tight_layout()
plt.show()

Implementation with statsmodels¶

The statsmodels library provides extensive statistical output including p-values, confidence intervals, and diagnostic tests. See Package Usage Comparison for a detailed comparison with scikit-learn.

Sales ~ TV + Radio + Newspaper¶

import pandas as pd
import statsmodels.formula.api as sm
import matplotlib.pyplot as plt

url = 'https://raw.githubusercontent.com/justmarkham/scikit-learn-videos/master/data/Advertising.csv'
data = pd.read_csv(url, usecols=[1, 2, 3, 4])

num_total_observations = data.shape[0]
test_ratio = 0.3
num_train_observations = int(num_total_observations * (1 - test_ratio))

train_data = data.iloc[:num_train_observations]
test_data = data.iloc[num_train_observations:]

# Fit model with TV, Radio, and Newspaper
model = sm.ols('Sales ~ TV + Radio + Newspaper', train_data).fit()
print("Model with TV, Radio, and Newspaper as predictors:")
print(model.summary(), end="\n\n")

train_predictions = model.predict(train_data)
test_predictions = model.predict(test_data)

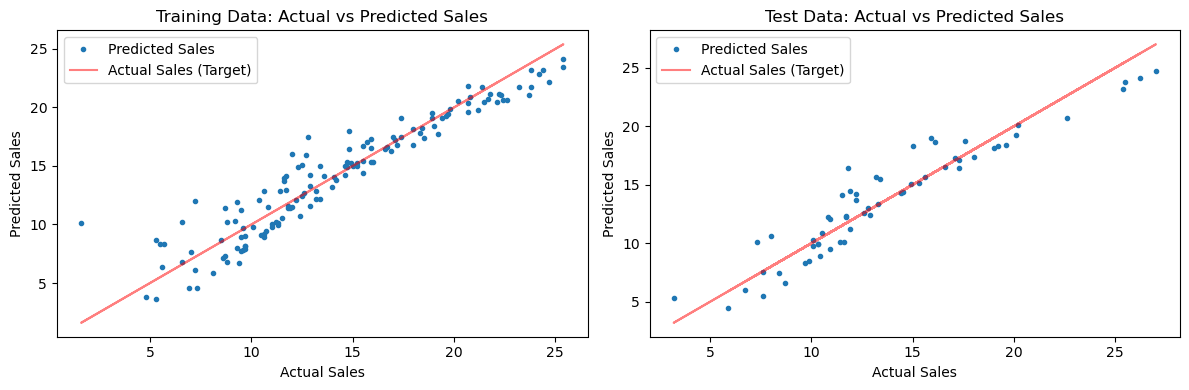

fig, axes = plt.subplots(1, 2, figsize=(12, 4))

axes[0].set_title("Training Data: Actual vs Predicted Sales")
axes[0].plot(train_data['Sales'], train_predictions, '.', label="Predicted Sales")
axes[0].plot(train_data['Sales'], train_data['Sales'], '-r', alpha=0.5, label="Actual Sales (Target)")
axes[0].set_xlabel('Actual Sales')
axes[0].set_ylabel('Predicted Sales')
axes[0].legend()

axes[1].set_title("Test Data: Actual vs Predicted Sales")
axes[1].plot(test_data['Sales'], test_predictions, '.', label="Predicted Sales")
axes[1].plot(test_data['Sales'], test_data['Sales'], '-r', alpha=0.5, label="Actual Sales (Target)")
axes[1].set_xlabel('Actual Sales')
axes[1].set_ylabel('Predicted Sales')
axes[1].legend()

plt.tight_layout()
plt.show()

Sales ~ TV + Radio¶

model = sm.ols('Sales ~ TV + Radio', train_data).fit()
print("Model with TV and Radio as predictors:")
print(model.summary(), end="\n\n")

Sales ~ TV + Radio + TV:Radio¶

model = sm.ols('Sales ~ TV + Radio + TV:Radio', train_data).fit()
print("Model with TV, Radio, and TV:Radio as predictors:")
print(model.summary(), end="\n\n")

Interpreting statsmodels Output¶

The model.summary() output contains several important sections:

Model Summary Section

R-squared: Proportion of variance in the dependent variable explained by the model.
Adj. R-squared: R-squared adjusted for the number of predictors; penalizes unnecessary complexity.
F-statistic and Prob (F-statistic): Tests whether all coefficients are jointly zero. A high F-statistic with low p-value indicates the model is significant overall.
AIC and BIC: Information criteria for model comparison; lower values indicate better models.

Coefficients Table

coef: Estimated coefficient values.
std err: Standard error of the estimate.
t: t-statistic for testing whether the coefficient differs from zero.
P>|t|: p-value for the coefficient; values below 0.05 indicate statistical significance.
[0.025, 0.975]: 95% confidence interval for the coefficient.

Diagnostic Metrics

Omnibus and Jarque-Bera: Tests for normality of residuals.
Durbin-Watson: Tests for autocorrelation in residuals (values near 2 suggest no autocorrelation).
Skew and Kurtosis: Describe the shape of the residual distribution.
Condition Number: Measures multicollinearity; values above 30 suggest potential issues.

Model Comparison Example¶

Comparing three models on the Advertising dataset:

Metric	TV, Radio, Newspaper	TV, Radio	TV, Radio, TV:Radio
R-squared	0.894	0.894	0.965
Adj. R-squared	0.891	0.892	0.964
F-statistic	381.2	575.1	1256
AIC	555.8	554.0	399.6
BIC	567.5	562.8	411.4
Significant Predictors	TV, Radio	TV, Radio	TV, Radio, TV:Radio
Condition Number	457	424	1.84e+04

Key findings from this comparison:

Removing Newspaper does not reduce \(R^2\), and AIC/BIC improve slightly, confirming Newspaper is not a useful predictor.
Adding the interaction term TV:Radio significantly improves the model (\(R^2\) from 0.894 to 0.965), with substantially lower AIC and BIC.
The interaction model has a very high condition number (1.84e+04), indicating strong multicollinearity that may affect coefficient stability. Variable centering or regularization can help address this.
All models show residual normality violations, but the interaction model shows the most severe deviations.

The TV, Radio, and Interaction Model is preferred for predictive power, while the TV and Radio Model may be preferable when interpretability and coefficient stability are priorities.
