Confidence Intervals for Simple OLS Estimators¶

Overview¶

Given the sampling distributions derived in the previous section, we can construct confidence intervals for the slope, the expected response, and individual predictions in simple linear regression. Each confidence interval takes the standard form: point estimate \(\pm\) critical value \(\times\) standard error.

Confidence Interval Formulas¶

Slope¶

\[ \hat{\beta}_1 \pm t_{n-2}(0.975)\; s\sqrt{\frac{1}{\sum_{i=1}^n(x_i-\bar{x})^2}} \]

This interval quantifies the uncertainty in the estimated rate of change of \(y\) with respect to \(x\). If the interval excludes zero, we have evidence at the 5% significance level that \(x\) has a linear effect on \(y\).

Response Expectation (Mean Response at x_0)¶

\[ (\hat{\beta}_0+\hat{\beta}_1 x_0) \pm t_{n-2}(0.975)\; s\sqrt{\frac{1}{n}+\frac{(x_0-\bar{x})^2}{\sum_{i=1}^n(x_i-\bar{x})^2}} \]

This confidence interval captures the true mean of \(y\) at a specific value \(x_0\). The interval is narrowest when \(x_0 = \bar{x}\) and widens as \(x_0\) moves away from the center of the data, producing the characteristic "bowtie" shape when plotted across all \(x_0\) values.

Response (Prediction Interval at x_0)¶

\[ (\hat{\beta}_0+\hat{\beta}_1 x_0) \pm t_{n-2}(0.975)\; s\sqrt{1+\frac{1}{n}+\frac{(x_0-\bar{x})^2}{\sum_{i=1}^n(x_i-\bar{x})^2}} \]

This prediction interval captures where a new individual observation at \(x_0\) is likely to fall. It is always wider than the confidence interval for the mean response because it includes the irreducible noise term \(\sigma^2\) (the leading 1 under the square root).

Key Distinction¶

The confidence interval for the mean response and the prediction interval for an individual response share the same center \(\hat{\beta}_0 + \hat{\beta}_1 x_0\), but differ in width. The mean response interval shrinks toward zero width as \(n \to \infty\) (estimation uncertainty vanishes), while the prediction interval converges to \(\hat{y}_0 \pm t \cdot s\) (irreducible noise remains).

Reference

Khan Academy: Inference for Slope

Example: Study Hours and Caffeine Consumption¶

Problem¶

Musa investigates the correlation between studying hours and caffeine consumption among 20 students at his school. After performing a least-squares regression, he obtains the following output:

	Coef	SE Coef	T	P
Constant	2.544	0.134	18.955	0.000
Caffeine	0.164	0.057	2.862	0.010

\(S = 1.532\), \(R^2 = 60.0\%\)

Task: Determine the 95% confidence interval for the slope of the least-squares regression line.

Solution¶

From the regression output we extract:

\(\hat{\beta}_1 = 0.164\) (the estimated slope)
\(\text{SE}(\hat{\beta}_1) = 0.057\) (the standard error of the slope)
\(n = 20\), so \(\text{df} = n - 2 = 18\)

The 95% confidence interval is:

\[ \hat{\beta}_1 \pm t_{18}(0.975) \times \text{SE}(\hat{\beta}_1) = 0.164 \pm 2.1009 \times 0.057 \]

\[ = 0.164 \pm 0.1198 = (0.0442,\; 0.2838) \]

Interpretation: We are 95% confident that the true slope relating caffeine consumption to study hours lies between 0.044 and 0.284. Since this interval does not contain zero, there is statistically significant evidence of a positive linear relationship.

Reference

Khan Academy: Confidence Interval for Slope

Python Implementation¶

from scipy import stats

def main():
    beta_1_hat = 0.164
    n = 20
    df = n - 2
    confidence_level = 0.95
    alpha = 1 - confidence_level
    t_star = stats.t(df).ppf(1 - alpha / 2)
    standard_error = 0.057
    margin_of_error = t_star * standard_error
    print(f"{confidence_level:.0%} confidence interval of the slope")
    print(f"{beta_1_hat:.4f} ± {margin_of_error:.4f}")

if __name__ == "__main__":
    main()

Output:

95% confidence interval of the slope
0.1640 ± 0.1198

Visualization: Confidence and Prediction Bands¶

The following example generates synthetic regression data and plots both the 95% confidence interval for the mean response (inner band) and the 95% prediction interval for individual observations (outer band).

Setup¶

import numpy as np
import matplotlib.pyplot as plt
from scipy import stats

Data Generation¶

def generate_data(n, sigma, seed=0):
    """
    Generate synthetic linear regression data.

    Parameters
    ----------
    n : int
        Number of observations.
    sigma : float
        Standard deviation of the noise term.
    seed : int
        Random seed for reproducibility.

    Returns
    -------
    x, y : ndarray of shape (n, 1)
        Predictor and response arrays.
    """
    np.random.seed(seed)
    x = np.random.randn(n, 1)
    y = 1 + 2 * x + sigma * np.random.randn(n, 1)
    return x, y

Regression Estimation¶

def estimate_regression_line(x, y):
    """
    Estimate slope and intercept via the correlation formula.

    Returns
    -------
    y_hat : ndarray
        Fitted values.
    beta_hat : float
        Estimated slope.
    y_bar, x_bar : float
        Sample means.
    """
    x_bar = x.mean()
    y_bar = y.mean()
    s_x = x.std(ddof=1)
    s_y = y.std(ddof=1)
    r = np.corrcoef(np.concatenate([x, y], axis=1), rowvar=False)[1, 0]
    beta_hat = r * s_y / s_x
    y_hat = beta_hat * (x - x_bar) + y_bar
    return y_hat, beta_hat, y_bar, x_bar

Residual Variance¶

def calculate_residual_variance(y, y_hat, n):
    """
    Compute the unbiased residual variance s² and standard deviation s.
    """
    s_square = np.sum((y - y_hat) ** 2) / (n - 2)
    s = np.sqrt(s_square)
    return s_square, s

Confidence and Prediction Intervals¶

def confidence_intervals(x, y_hat, beta_hat, x_bar, y_bar, n, s):
    """
    Compute 95% confidence intervals for E[y|x] and for y|x.

    Returns
    -------
    x0 : ndarray
        Grid of x values for plotting.
    lower, upper : ndarray
        Bounds for the mean response interval.
    lower2, upper2 : ndarray
        Bounds for the prediction interval.
    """
    x0 = np.linspace(x.min(), x.max(), 20)
    y0_hat = beta_hat * (x0 - x_bar) + y_bar
    t_val = stats.t(n - 2).ppf(0.975)

    # Confidence interval for E[y | x = x0]
    margin = t_val * s * np.sqrt(
        (1 / n) + (x0 - x_bar) ** 2 / np.sum((x - x_bar) ** 2)
    )
    lower = y0_hat - margin
    upper = y0_hat + margin

    # Prediction interval for y | x = x0
    margin2 = t_val * s * np.sqrt(
        1 + (1 / n) + (x0 - x_bar) ** 2 / np.sum((x - x_bar) ** 2)
    )
    lower2 = y0_hat - margin2
    upper2 = y0_hat + margin2

    return x0, lower, upper, lower2, upper2

Plotting¶

def plot_intervals(x, y, y_hat, x0, lower, upper, lower2, upper2):
    """Plot confidence and prediction bands side by side."""
    fig, (ax0, ax1) = plt.subplots(1, 2, figsize=(12, 4))

    # Left: Confidence interval for E[y]
    ax0.plot(x, y, 'o', alpha=0.5)
    ax0.plot(x, y_hat, '--b', label='Fitted line')
    ax0.plot(x0, upper, '--r', label='95% CI bounds')
    ax0.plot(x0, lower, '--r')
    ax0.set_title('95% Confidence Interval for $E[y]$')
    ax0.legend()

    # Right: Prediction interval for y
    ax1.plot(x, y, 'o', alpha=0.5)
    ax1.plot(x, y_hat, '--b', label='Fitted line')
    ax1.plot(x0, upper2, '--r', label='95% PI bounds')
    ax1.plot(x0, lower2, '--r')
    ax1.set_title('95% Prediction Interval for $y$')
    ax1.legend()

    plt.tight_layout()
    plt.show()

Full Example¶

# Parameters
n = 100
sigma = 3

# Generate data (true model: y = 1 + 2x + noise)
x, y = generate_data(n, sigma)

# Fit regression
y_hat, beta_hat, y_bar, x_bar = estimate_regression_line(x, y)

# Residual variance
s_square, s = calculate_residual_variance(y, y_hat, n)
print(f"True σ²: {sigma**2}")
print(f"Estimated s²: {s_square:.4f}")

# Compute intervals
x0, lower, upper, lower2, upper2 = confidence_intervals(
    x, y_hat, beta_hat, x_bar, y_bar, n, s
)

# Plot
plot_intervals(x, y, y_hat, x0, lower, upper, lower2, upper2)

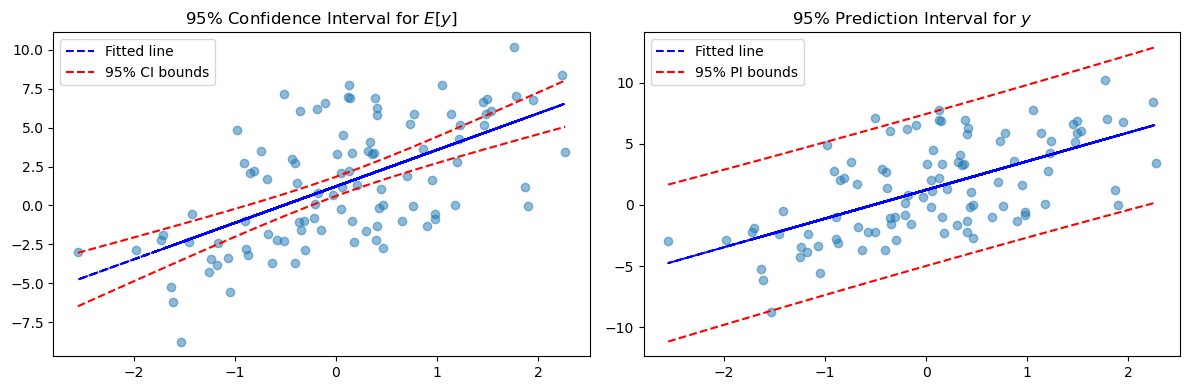

The left panel shows the confidence band for the mean response—notice its characteristic "bowtie" shape, narrowest at \(\bar{x}\). The right panel shows the wider prediction band that accounts for individual observation variability.
