ANOVA Practical Applications¶

This section presents complete worked examples demonstrating ANOVA assumption testing and diagnostics using Python. Each case study follows the full workflow: fit the model, check assumptions, and address any violations.

Case Study 1: Iris Species (Plant Morphology)¶

Background¶

We use the classic Iris dataset to test whether sepal length differs significantly between two species (versicolor and virginica). This example demonstrates the complete ANOVA diagnostic workflow.

Step 1: Load Data and Fit Model¶

import pandas as pd
import seaborn as sns
import statsmodels.api as sm
from statsmodels.formula.api import ols

data = sns.load_dataset("iris")
data = data[data["species"] != "setosa"]  # Two species for simplicity

model = ols('sepal_length ~ species', data=data).fit()
anova_table = sm.stats.anova_lm(model, typ=2)
print(anova_table)

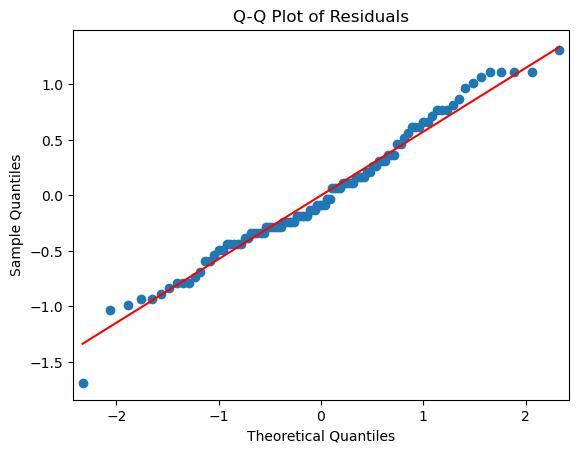

Step 2: Check Normality¶

import matplotlib.pyplot as plt
from scipy.stats import shapiro

# Q-Q Plot
sm.qqplot(model.resid, line='s')
plt.title("Q-Q Plot of Residuals")
plt.show()

# Shapiro-Wilk Test
stat, p_value = shapiro(model.resid)
print(f"Shapiro-Wilk Test: W = {stat:.4f}, p-value = {p_value:.4f}")

Step 3: Check Homoscedasticity¶

from scipy.stats import levene

group1 = data[data['species'] == 'versicolor']['sepal_length']
group2 = data[data['species'] == 'virginica']['sepal_length']
stat, p_value = levene(group1, group2)
print(f"Levene's Test: F = {stat:.4f}, p-value = {p_value:.4f}")

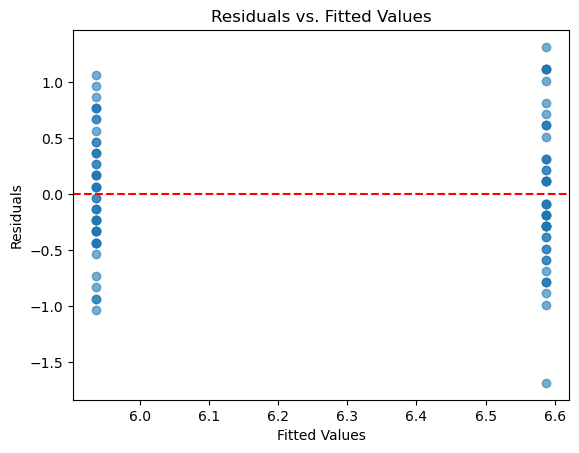

Step 4: Check Independence (Residual Plot)¶

plt.scatter(model.fittedvalues, model.resid, alpha=0.6)
plt.axhline(y=0, color='r', linestyle='--')
plt.xlabel('Fitted Values')
plt.ylabel('Residuals')
plt.title('Residuals vs. Fitted Values')
plt.show()

Interpretation¶

If normality and homoscedasticity are not rejected (p > 0.05 for both tests) and the residual plot shows no systematic patterns, the ANOVA results can be interpreted with confidence. Otherwise, consider Welch's ANOVA or the Kruskal-Wallis test.

Case Study 2: Employee Productivity by Working Environment¶

Background¶

A company wants to determine if employee productivity differs across three working environments: remote, office, and hybrid. This example uses a small simulated dataset.

Step 1: Load Data and Fit Model¶

import pandas as pd
import statsmodels.api as sm
from statsmodels.formula.api import ols

data = pd.DataFrame({
    'productivity': [68, 75, 80, 65, 85, 78, 70, 82, 90, 88, 72, 95, 67, 85, 79],
    'environment': ['remote']*5 + ['office']*5 + ['hybrid']*5
})

model = ols('productivity ~ environment', data=data).fit()
anova_table = sm.stats.anova_lm(model, typ=2)
print(anova_table)

Step 2: Check Assumptions¶

import matplotlib.pyplot as plt
from scipy.stats import shapiro, levene

# Normality
sm.qqplot(model.resid, line='s')
plt.title("Q-Q Plot of Residuals")
plt.show()

stat, p_value = shapiro(model.resid)
print(f"Shapiro-Wilk Test: p-value = {p_value:.4f}")

# Homoscedasticity
group1 = data[data['environment'] == 'remote']['productivity']
group2 = data[data['environment'] == 'office']['productivity']
group3 = data[data['environment'] == 'hybrid']['productivity']
stat, p_value = levene(group1, group2, group3)
print(f"Levene's Test: p-value = {p_value:.4f}")

# Independence
plt.scatter(model.fittedvalues, model.resid, alpha=0.6)
plt.axhline(y=0, color='r', linestyle='--')
plt.xlabel('Fitted Values')
plt.ylabel('Residuals')
plt.title('Residuals vs. Fitted Values')
plt.show()

Note on Small Samples¶

With only 5 observations per group, the Shapiro-Wilk test has low power and the Q-Q plot may not be very informative. In such cases, ANOVA relies heavily on the assumption that the underlying populations are normal, and it may be prudent to supplement with a non-parametric test.

Case Study 3: Customer Satisfaction Across Store Locations¶

Background¶

A retailer analyzes customer satisfaction scores across four store locations (A, B, C, D) to determine if there are significant differences.

Step 1: Load Data and Fit Model¶

import pandas as pd
import statsmodels.api as sm
from statsmodels.formula.api import ols

data = pd.DataFrame({
    'satisfaction': [4.5, 3.8, 4.7, 4.2, 4.9, 4.1, 3.5, 4.3, 4.8, 3.9,
                     4.4, 4.0, 3.7, 4.2, 4.6, 4.8, 3.6, 4.3, 4.1, 4.7],
    'location': ['A']*5 + ['B']*5 + ['C']*5 + ['D']*5
})

model = ols('satisfaction ~ location', data=data).fit()
anova_table = sm.stats.anova_lm(model, typ=2)
print(anova_table)

Step 2: Check Assumptions¶

import matplotlib.pyplot as plt
from scipy.stats import shapiro, levene

# Normality
sm.qqplot(model.resid, line='s')
plt.title("Q-Q Plot of Residuals")
plt.show()

stat, p_value = shapiro(model.resid)
print(f"Shapiro-Wilk Test: p-value = {p_value:.4f}")

# Homoscedasticity
groups = [data[data['location'] == loc]['satisfaction'] for loc in ['A', 'B', 'C', 'D']]
stat, p_value = levene(*groups)
print(f"Levene's Test: p-value = {p_value:.4f}")

# Independence
plt.scatter(model.fittedvalues, model.resid, alpha=0.6)
plt.axhline(y=0, color='r', linestyle='--')
plt.xlabel('Fitted Values')
plt.ylabel('Residuals')
plt.title('Residuals vs. Fitted Values')
plt.show()

Step 3: Post-Hoc Analysis¶

If ANOVA reveals a significant difference and assumptions are met, perform post-hoc pairwise comparisons:

from statsmodels.stats.multicomp import pairwise_tukeyhsd

tukey = pairwise_tukeyhsd(data['satisfaction'], data['location'], alpha=0.05)
print(tukey)

For details on Tukey's HSD, see Tukey HSD.

Summary¶

These case studies demonstrate a consistent workflow for ANOVA analysis:

Fit the model using statsmodels.formula.api.ols.
Check normality with Q-Q plots and the Shapiro-Wilk test.
Check homoscedasticity with Levene's test.
Check independence with residual plots.
Address violations if detected, using Welch's ANOVA, non-parametric tests, or transformations.
Perform post-hoc tests if the overall ANOVA is significant.

By following this workflow, you can ensure that your ANOVA results are robust and that conclusions are well-supported by the data.
