Residual Analysis¶
Overview¶
Residual analysis is a critical diagnostic tool in ANOVA. Residuals are the differences between the observed data points and the predicted values from the model:
where \(Y_{ij}\) is the observed value for observation \(j\) in group \(i\) and \(\bar{Y}_{i\cdot}\) is the mean of group \(i\). In a correctly specified model, residuals should be randomly distributed around zero with constant variance and no systematic patterns.
Residual vs. Fitted Value Plots¶

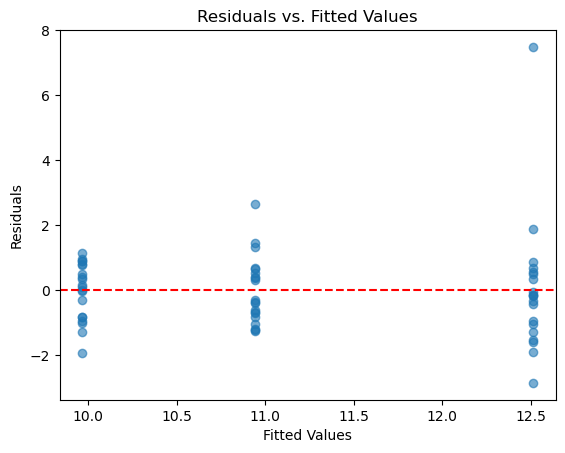

The most informative diagnostic plot displays residuals against fitted values. In one-way ANOVA, the fitted values are simply the group means, so the plot shows vertical strips of residuals at each group mean.
import matplotlib.pyplot as plt
plt.scatter(model.fittedvalues, model.resid, alpha=0.6)
plt.axhline(y=0, color='r', linestyle='--')
plt.xlabel("Fitted Values")
plt.ylabel("Residuals")
plt.title("Residuals vs. Fitted Values")
plt.show()
Identifying Patterns¶
The following patterns in residual plots signal specific assumption violations:
Funnel Shape (Heteroscedasticity): A widening or narrowing pattern indicates that the variance of residuals differs across levels of the independent variable. This violates the homoscedasticity assumption and can distort the F-test.
Curvature (Nonlinearity): A curved pattern suggests that the relationship between the independent and dependent variables is not linear. This may indicate the need for polynomial terms, a nonlinear model, or data transformation.
Clustering (Non-Independence): Clusters of residuals can indicate that observations within clusters are correlated, violating the independence assumption. This often arises in hierarchical or nested data structures.
Outliers: Individual points far from the zero line may be outliers that exert disproportionate influence on the analysis.
Standardized Residuals¶

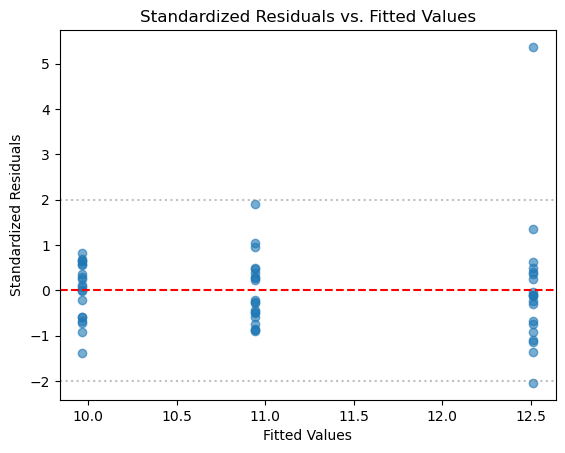

Standardized residuals divide each residual by an estimate of its standard deviation, placing all residuals on a common scale:
where \(\hat{\sigma}\) is the estimated standard deviation and \(h_{ii}\) is the leverage of observation \(i\). Under the model assumptions, standardized residuals should approximately follow a standard normal distribution.
import numpy as np
influence = model.get_influence()
standardized_resid = influence.resid_studentized_internal
plt.scatter(model.fittedvalues, standardized_resid, alpha=0.6)
plt.axhline(y=0, color='r', linestyle='--')
plt.axhline(y=2, color='gray', linestyle=':', alpha=0.5)
plt.axhline(y=-2, color='gray', linestyle=':', alpha=0.5)
plt.xlabel("Fitted Values")
plt.ylabel("Standardized Residuals")
plt.title("Standardized Residuals vs. Fitted Values")
plt.show()
Observations with \(|r_i| > 2\) deserve closer inspection, and those with \(|r_i| > 3\) are strong candidates for outliers.
Scale-Location Plot¶

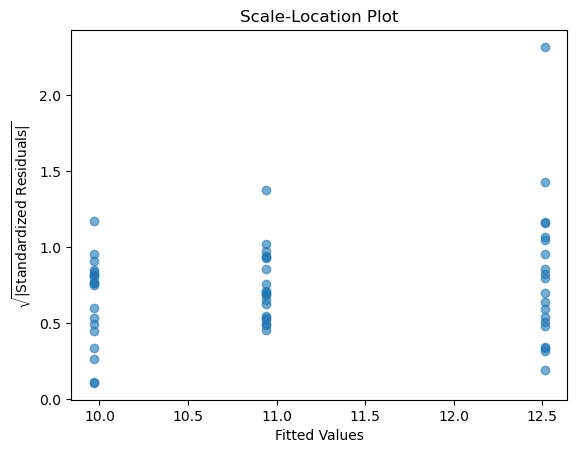

The scale-location plot displays \(\sqrt{|r_i|}\) against fitted values and is useful for assessing homoscedasticity. A horizontal trend line with evenly spread points indicates constant variance.
plt.scatter(model.fittedvalues, np.sqrt(np.abs(standardized_resid)), alpha=0.6)
plt.xlabel("Fitted Values")
plt.ylabel(r"$\sqrt{|\mathrm{Standardized\ Residuals}|}$")
plt.title("Scale-Location Plot")
plt.show()
Summary¶
Residual analysis provides a comprehensive visual diagnostic framework for ANOVA. By examining residual plots, researchers can detect violations of normality, homoscedasticity, independence, and linearity, and take appropriate corrective actions before interpreting the ANOVA results.
