Checking Linearity

Why Linearity Is Relevant in ANOVA

Although linearity is not always explicitly stated as a requirement for ANOVA, it becomes relevant when ANOVA is viewed through the lens of the general linear model. In the one-way ANOVA framework, the model is:

\[ Y_{ij} = \mu + \alpha_i + \varepsilon_{ij} \]

where \(\mu\) is the overall mean, \(\alpha_i\) is the effect of group \(i\), and \(\varepsilon_{ij}\) is the random error. This model is inherently linear in the parameters. Linearity becomes more explicitly important in two-way ANOVA, ANCOVA (analysis of covariance), and when ANOVA is extended to include continuous covariates.

The linearity assumption states that the relationship between any continuous independent variable and the dependent variable is linear within each group. Nonlinear relationships can lead to systematic patterns in residuals and model misspecification.

How to Check

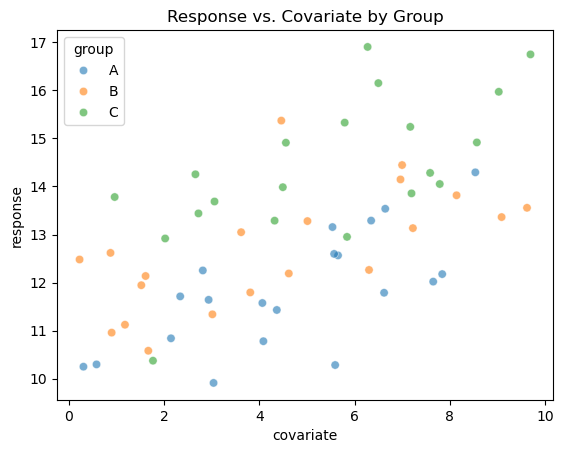

Scatter Plots

When continuous covariates are present (e.g., in ANCOVA), plot the dependent variable against each covariate, colored by group.

import matplotlib.pyplot as plt
import seaborn as sns

sns.scatterplot(data=data, x='covariate', y='response', hue='group', alpha=0.6)
plt.title("Response vs. Covariate by Group")
plt.show()

Look for:

  • Linear trends within each group confirm the linearity assumption.
  • Curved patterns suggest a nonlinear relationship that may require polynomial terms or a different model.

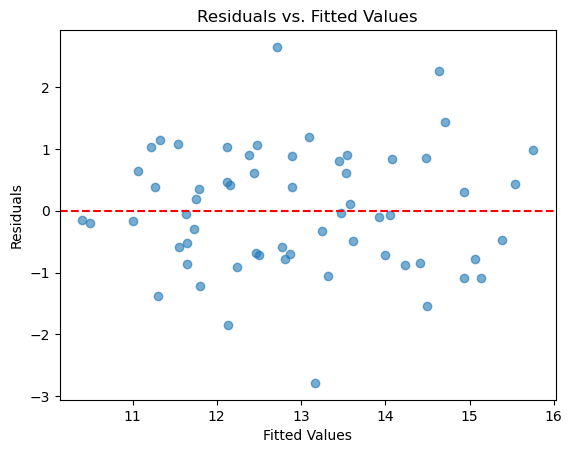

Residual Plots

A plot of residuals against the independent variable (or fitted values) should show no systematic patterns. Random scatter around zero confirms linearity.

import matplotlib.pyplot as plt

plt.scatter(model.fittedvalues, model.resid, alpha=0.6)
plt.axhline(y=0, color='r', linestyle='--')
plt.xlabel("Fitted Values")
plt.ylabel("Residuals")
plt.title("Residuals vs. Fitted Values")
plt.show()
  • Random scatter: Linearity is satisfied.
  • Curvature: A curved pattern suggests the need for polynomial terms or a nonlinear model.
  • Distinct clusters: May indicate the need for additional grouping variables.

What to Do If Linearity Is Violated

  • Polynomial terms: Add quadratic or higher-order terms to the model.
  • Nonlinear transformations: Transform the dependent variable or covariates (e.g., log, square root).
  • Generalized additive models (GAMs): Use smooth functions of covariates instead of assuming a linear relationship.
  • Nonparametric methods: If the nonlinearity is severe, consider non-parametric alternatives that make no assumptions about functional form.
