CI for μ₁ − μ₂¶
Two-Sample Confidence Interval for the Difference of Means¶
When comparing two populations, we are often interested in the difference between their means. A confidence interval for \(\mu_1 - \mu_2\) provides a range of plausible values for this difference, considering sampling variability.
Formulas by Scenario¶
Known Variances (z-Interval)¶
where \(\sigma_1^2\) and \(\sigma_2^2\) are the known population variances, \(z_{\alpha/2}\) is the critical value satisfying \(P(Z > z_{\alpha/2}) = \alpha/2\).
Unknown, Unequal Variances — Welch's t-Interval¶
where the degrees of freedom are computed using the Welch–Satterthwaite equation:
Default Choice
Prefer Welch's t-interval unless you have strong justification for equal variances.
Unknown, Equal Variances — Pooled t-Interval¶
where the pooled variance is
and \(\text{df} = n_1 + n_2 - 2\).
Large Sample Size (z-Interval with Sample Variances)¶
For \(n_1 \ge 30\) and \(n_2 \ge 30\), the normal approximation can be used even with unknown, unequal variances:
Python Code¶
import numpy as np
import scipy.stats as stats
n1, n2 = 30, 25
mean1, mean2 = 100, 90
s1, s2 = 15, 20
confidence_level = 0.95
# Standard error
standard_error = np.sqrt((s1**2 / n1) + (s2**2 / n2))
# Welch-Satterthwaite degrees of freedom
df = ((s1**2 / n1) + (s2**2 / n2))**2 / (
((s1**2 / n1)**2 / (n1 - 1)) + ((s2**2 / n2)**2 / (n2 - 1))
)
# Critical value and margin of error
t_critical = stats.t.ppf(1 - (1 - confidence_level) / 2, df)
margin_of_error = t_critical * standard_error
# Confidence interval
confidence_interval = (
(mean1 - mean2) - margin_of_error,
(mean1 - mean2) + margin_of_error,
)
print(f"{confidence_interval = }")
Examples¶
Example 1: 95% CI for Difference in Means (Welch)¶
Two independent samples: Sample 1 has \(n_1 = 30\), \(\bar{X}_1 = 100\), \(s_1 = 15\); Sample 2 has \(n_2 = 25\), \(\bar{X}_2 = 90\), \(s_2 = 20\).
Solution.
Welch–Satterthwaite degrees of freedom:
With \(t_{0.025, 48} \approx 2.011\):
We are 95% confident that the true difference between the population means lies between 0.25 and 19.75.

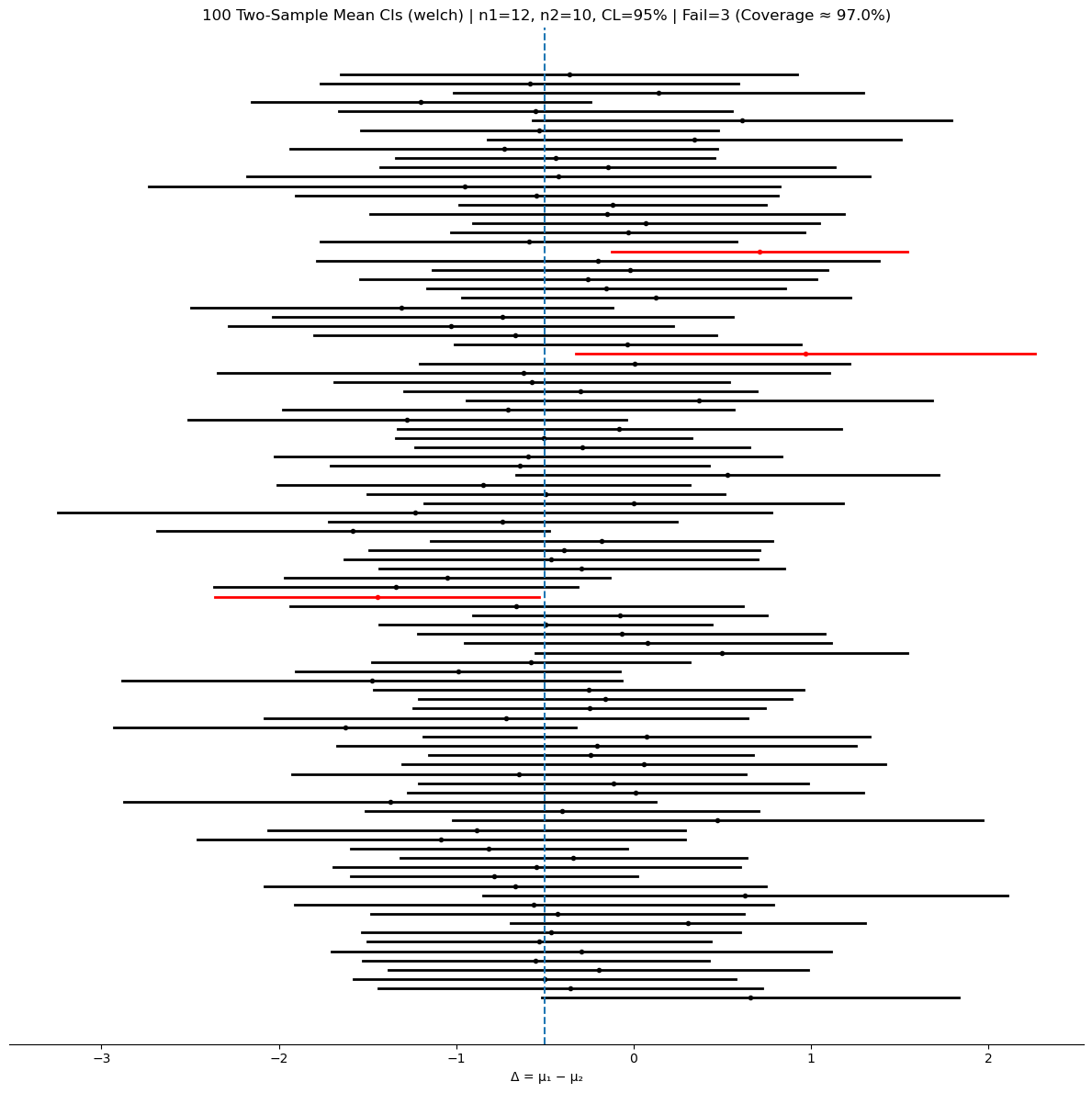

Simulation: Two-Sample Mean CI Coverage¶
#!/usr/bin/env python3
"""
Two-sample mean CI simulation: Welch, pooled, z_known, z_plugin.
"""
import numpy as np
import matplotlib.pyplot as plt
from scipy.stats import t, norm
rng_seed = None
n_simulations = 100
n1, n2 = 12, 10
mu1, mu2 = 0.0, 0.5
sigma1, sigma2 = 1.0, 1.5
alpha = 0.05
method = "welch" # 'welch' | 'pooled' | 'z_known' | 'z_plugin'
def main():
if rng_seed is not None:
np.random.seed(rng_seed)
delta_true = mu1 - mu2
lowers = np.empty(n_simulations)
uppers = np.empty(n_simulations)
centers = np.empty(n_simulations)
for i in range(n_simulations):
x = np.random.normal(loc=mu1, scale=sigma1, size=n1)
y = np.random.normal(loc=mu2, scale=sigma2, size=n2)
xbar, ybar = x.mean(), y.mean()
s1, s2 = x.std(ddof=1), y.std(ddof=1)
diff_hat = xbar - ybar
centers[i] = diff_hat
if method == "welch":
se = np.sqrt(s1**2 / n1 + s2**2 / n2)
num = (s1**2 / n1 + s2**2 / n2) ** 2
den = (s1**2 / n1) ** 2 / (n1 - 1) + (s2**2 / n2) ** 2 / (n2 - 1)
df = num / den
crit = t.ppf(1 - alpha / 2.0, df=df)
elif method == "pooled":
df = n1 + n2 - 2
sp2 = ((n1 - 1) * s1**2 + (n2 - 1) * s2**2) / df
se = np.sqrt(sp2 * (1.0 / n1 + 1.0 / n2))
crit = t.ppf(1 - alpha / 2.0, df=df)
elif method == "z_known":
se = np.sqrt(sigma1**2 / n1 + sigma2**2 / n2)
crit = norm.ppf(1 - alpha / 2.0)
else: # z_plugin
se = np.sqrt(s1**2 / n1 + s2**2 / n2)
crit = norm.ppf(1 - alpha / 2.0)
lowers[i] = diff_hat - crit * se
uppers[i] = diff_hat + crit * se
covered = (lowers <= delta_true) & (delta_true <= uppers)
n_fail = int((~covered).sum())
coverage_pct = 100.0 * covered.mean()
fig, ax = plt.subplots(figsize=(12, 12))
for i in range(n_simulations):
color = "k" if covered[i] else "r"
ax.plot([lowers[i], uppers[i]], [i, i], lw=2, color=color)
ax.plot(centers[i], i, marker="o", ms=3, color=color)
ax.axvline(delta_true, linestyle="--", linewidth=1.5)
ax.set_title(
f"{n_simulations} Two-Sample Mean CIs ({method}) | n1={n1}, n2={n2}, "
f"CL={int((1 - alpha) * 100)}% | Fail={n_fail} (Coverage ≈ {coverage_pct:.1f}%)")
ax.set_yticks([])
for sp in ["left", "right", "top"]:
ax.spines[sp].set_visible(False)
ax.set_xlabel("Δ = μ₁ − μ₂")
plt.tight_layout()
plt.show()
if __name__ == "__main__":
main()
Key Points¶
- When comparing two population means, we construct a confidence interval for \(\mu_1 - \mu_2\).
- If the population variances are unknown and unequal, use Welch's t-interval (the default).
- If variances are assumed equal, the pooled t-interval uses a combined variance estimate.
- The width of the confidence interval depends on the sample sizes, sample variances, and confidence level.
Exercises¶
Exercise: Standard Error of the Difference¶
Two independent samples: population A with \(\sigma_A = 15\) (\(n_A = 36\)) and population B with \(\sigma_B = 20\) (\(n_B = 49\)). What is the standard error of \(\bar{X}_A - \bar{X}_B\)?
Solution.
Exercise: 95% CI for Difference of Means¶
Sample 1: \(\bar{X}_1 = 55\), \(s_1 = 8\), \(n_1 = 30\). Sample 2: \(\bar{X}_2 = 50\), \(s_2 = 10\), \(n_2 = 35\). Construct a 95% CI.
Solution. Since both \(n_1, n_2 \ge 30\), we can use the \(z\)-approximation:
