CI for μ¶

One-Sample z Confidence Interval¶

In numerous real-world applications, such as in business, healthcare, and education, estimating the population mean \(\mu\) from a random sample is often essential. When the population variance is known, we can utilize the standard normal distribution to construct a confidence interval.

Formula¶

If we know the population variance \(\sigma^2\), the confidence interval for the population mean \(\mu\) based on a sample of size \(n\) is

\[ \bar{X} \pm z_{\alpha/2} \times \frac{\sigma}{\sqrt{n}} \]

where

\(\bar{X}\) is the sample mean,
\(\alpha\) is the significance level (\(\text{significance level} = 1 - \text{confidence level}\)),
\(z_{\alpha/2}\) is the critical value from the standard normal distribution, satisfying \(P(Z > z_{\alpha/2}) = \alpha/2\),
\(\sigma\) is the known population standard deviation,
\(n\) is the sample size.

The quantity \(\sigma / \sqrt{n}\) is the standard error of the sample mean.

Conditions for Validity¶

\[ \bar{x}\pm z_{\alpha/2}\frac{\sigma}{\sqrt{n}} \quad\text{if}\quad \begin{cases} n \text{ is large, e.g., } n \ge 30, \text{ so that CLT approximation works} \\ n \text{ is small relative to } N, \text{ e.g., } n \le 0.1N, \text{ so that IID approximation works} \end{cases} \]

When \(\sigma\) is unknown and \(n\) is large, using the sample standard deviation \(s\) in place of \(\sigma\) is justified by the Law of Large Numbers:

\[ \bar{x}\pm z_{\alpha/2}\frac{s}{\sqrt{n}} \quad\text{if}\quad \begin{cases} n \ge 30 \text{ (CLT)} \\ n \ge 30 \text{ (LLN for } s \approx \sigma\text{)} \\ n \le 0.1N \text{ (IID)} \end{cases} \]

Python Code¶

import scipy.stats as stats
import numpy as np

# Given data
n = 40
sample_mean = 85
sigma = 12  # known population standard deviation
confidence_level = 0.95

# Critical value
z_critical = stats.norm.ppf(1 - (1 - confidence_level) / 2)

# Standard error and margin of error
standard_error = sigma / np.sqrt(n)
margin_of_error = z_critical * standard_error

# Confidence interval
confidence_interval = (sample_mean - margin_of_error, sample_mean + margin_of_error)
print(f"{confidence_interval = }")

One-Sample t Confidence Interval¶

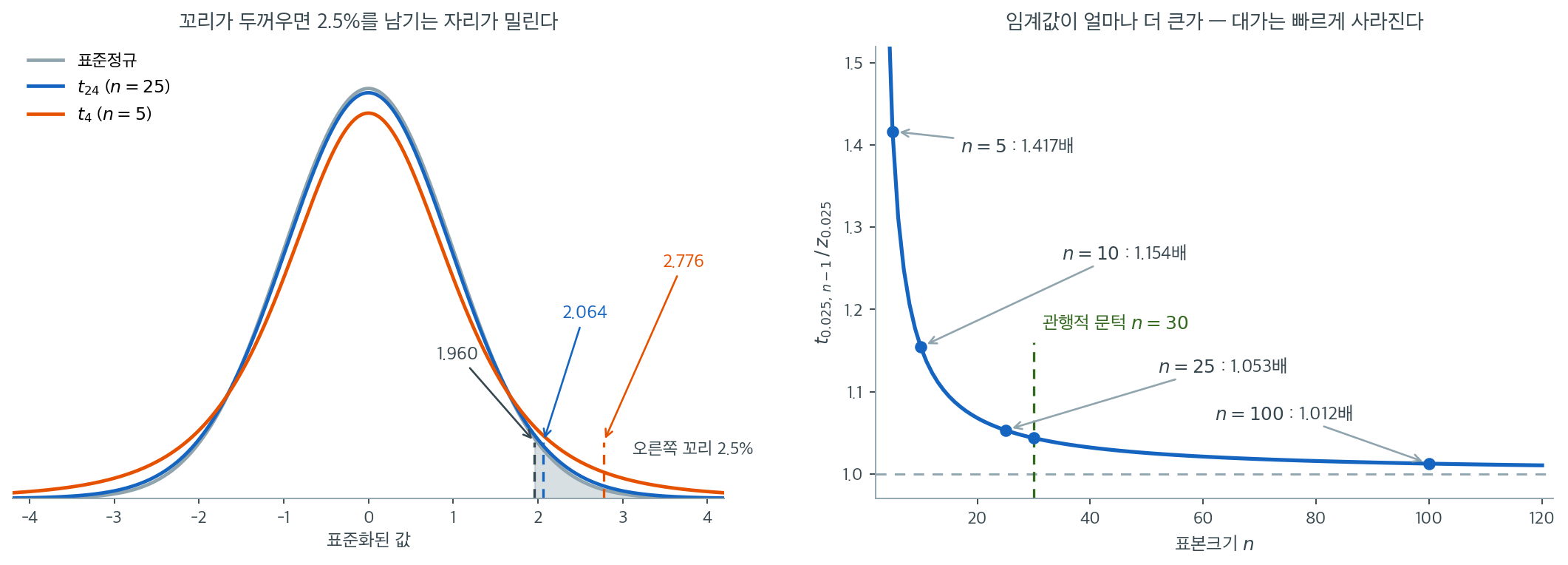

In practice, the population variance \(\sigma^2\) is often unknown. When this is the case, we estimate the variance using the sample variance \(s^2\), which introduces additional uncertainty. To account for this, we use the \(t\)-distribution instead of the normal distribution.

Formula¶

The confidence interval for the population mean \(\mu\) when the population variance is unknown is given by

\[ \bar{X} \pm t_{\alpha/2, \, n-1} \times \frac{s}{\sqrt{n}} \]

where

\(\bar{X}\) is the sample mean,
\(\alpha\) is the significance level (\(\text{significance level} = 1 - \text{confidence level}\)),
\(n - 1\) is the degree of freedom of the \(t\)-distribution,
\(t_{\alpha/2, \, n-1}\) is the critical value from the \(t\)-distribution, satisfying \(P(T > t_{\alpha/2, \, n-1}) = \alpha/2\),
\(s\) is the sample standard deviation,
\(n\) is the sample size.

Conditions for Validity¶

\[ \bar{x}\pm t_{\alpha/2,n-1}\frac{s}{\sqrt{n}} \quad\text{if}\quad \begin{cases} n \text{ is small, e.g., } n < 30, \text{ so that CLT approximation does not work} \\ \text{population distribution is normal, so that sampling distribution is known exactly} \\ n \le 0.1N \text{ (IID)} \end{cases} \]

Python Code¶

import scipy.stats as stats
import numpy as np

# Given data
n = 25
sample_mean = 50
sample_std = 8  # sample standard deviation
confidence_level = 0.95

# Critical value from the t-distribution
degrees_of_freedom = n - 1
t_critical = stats.t.ppf(1 - (1 - confidence_level) / 2, degrees_of_freedom)

# Standard error and margin of error
standard_error = sample_std / np.sqrt(n)
margin_of_error = t_critical * standard_error

# Confidence interval
confidence_interval = (sample_mean - margin_of_error, sample_mean + margin_of_error)
print(f"{confidence_interval = }")

Examples¶

Example 1: 95% CI for Population Mean (Known Variance)¶

Suppose we collect a random sample of size \(n = 40\) from a population. The sample mean is \(\bar{X} = 85\), and the known population standard deviation is \(\sigma = 12\). Construct a 95% confidence interval for the population mean \(\mu\).

Solution. For a 95% confidence level, the critical value \(z_{\alpha/2}\) is approximately 1.96. Substituting:

\[ 85 \pm 1.96 \times \frac{12}{\sqrt{40}} \]

Standard error: \(\text{SE} = 12 / \sqrt{40} \approx 1.8974\). Margin of error: \(1.96 \times 1.8974 \approx 3.717\).

\[ \boxed{(81.283,\ 88.717)} \]

We are 95% confident that the true population mean \(\mu\) lies within \((81.283, 88.717)\).

Example 2: 95% CI for Population Mean (Large Sample)¶

A random sample of 100 adult males yields a mean height of 175 cm and a standard deviation of 6 cm. Calculate the 95% confidence interval for the population mean height.

Solution. Since \(n = 100 \ge 30\), we use the standard normal distribution with the sample standard deviation.

\[ \text{SE} = \frac{6}{\sqrt{100}} = 0.6, \qquad \text{ME} = 1.96 \times 0.6 = 1.176 \]

\[ \boxed{(173.82,\ 176.18) \text{ cm}} \]

import numpy as np
import scipy.stats as stats

n = 100
x_bar = 175
s = 6
confidence_level = 0.95
alpha = 1 - confidence_level

z_star = stats.norm().ppf(1 - alpha / 2)
standard_error = s / np.sqrt(n)
margin_of_error = z_star * standard_error

print(f"{confidence_level:.0%} confidence interval: {x_bar} ± {margin_of_error:.2f}")

Example 3: Sample Size Determination (Astronomer)¶

An astronomer measures the distance to a distant star. Measurements are iid with mean \(d\) (the actual distance) and variance 4 light-years. How many measurements should he take so that his estimate is accurate within \(\pm 0.5\) light-year with 95% confidence?

Solution. We need

\[ 1.96 \sqrt{\frac{4}{n}} \leq 0.5 \]

Solving for \(n\):

\[ n \geq \frac{4 \times 1.96^2}{0.5^2} = 61.4656 \]

Since \(n\) must be an integer, at least 62 measurements are required.

Example 4: 95% CI for Population Mean (Unknown Variance, Small Sample)¶

A random sample of size \(n = 25\) yields \(\bar{X} = 50\) and \(s = 8\). Construct a 95% confidence interval for \(\mu\).

Solution. With \(df = 24\) and 95% confidence, \(t_{\alpha/2, 24} \approx 2.064\).

\[ \text{SE} = \frac{8}{\sqrt{25}} = 1.6, \qquad \text{ME} = 2.064 \times 1.6 \approx 3.302 \]

\[ \boxed{(46.698,\ 53.302)} \]

Example 5: Computation of t*¶

What is the critical value \(t_*\) for a 98% confidence interval with \(n = 15\) observations?

Solution.

import scipy.stats as stats

confidence_level = 0.98
alpha = 1 - confidence_level
n = 15
df = n - 1

t_star = stats.t(df=df).ppf(1 - alpha / 2)
print(f"{t_star = :.4f}")

Example 6: Painting Thickness¶

Felix randomly selected 50 points on a car part and measured coating thickness. The sample yielded \(\bar{x} = 148\) microns and \(s = 3.3\) microns. He constructed a 95% confidence interval of \((147.1, 148.9)\) microns. Is it plausible for the average thickness to agree with the target value of 150 microns?

Solution. No, since the confidence interval \((147.1, 148.9)\) does not include the target thickness of 150 microns. The data provide evidence that the mean thickness significantly deviates from the target.

Exercises¶

Exercise: 95% CI for Mean Amount of Liquid¶

Quality control specialists sample 50 bottles from a batch. The sample yields a mean of 503 mL and a standard deviation of 5 mL. Construct a 95% confidence interval for the mean amount of liquid.

Solution.

\[ \text{SE} = \frac{5}{\sqrt{50}} \approx 0.707, \qquad \text{ME} = 1.96 \times 0.707 \approx 1.386 \]

\[ \boxed{(501.61,\ 504.39) \text{ mL}} \]

Since the target of 500 mL is not in the interval, there is evidence that the batch mean deviates from the target.

Exercise: Smallest Sample Size with Given Margin of Error¶

Nadia must determine the minimum sample size for a margin of error of 10 km at 90% confidence. The estimated standard deviation is 15 km.

Solution. For 90% confidence, \(z_* \approx 1.645\).

\[ n = \left\lceil\left(\frac{1.645 \times 15}{10}\right)^2\right\rceil = \left\lceil 6.09\right\rceil = 7 \]

from math import ceil
from scipy import stats

confidence_level = 0.90
alpha = 1 - confidence_level
z_star = stats.norm().ppf(1 - alpha / 2)
sigma = 15
max_margin_of_error = 10

min_sample_size = ceil((z_star * sigma / max_margin_of_error) ** 2)
print(f"{min_sample_size = }")

Exercise: Confidence Interval for Population Mean (t-interval)¶

A sample of 25 bottles of soda has a mean volume of 500 ml and a sample standard deviation of 10 ml. Construct a 95% confidence interval.

Solution. With \(df = 24\), \(t_{0.025, 24} \approx 2.064\).

\[ \text{ME} = 2.064 \times \frac{10}{\sqrt{25}} = 2.064 \times 2 = 4.128 \]

\[ \boxed{(495.872,\ 504.128)} \]

Exercise: One-Sample z CI for Exam Scores¶

A random sample of 36 students' scores yields a mean of 78 with known \(\sigma = 12\). Construct a 95% CI.

Solution. \(\text{ME} = 1.96 \times 12/\sqrt{36} = 1.96 \times 2 = 3.92\).

\[ \boxed{(74.08,\ 81.92)} \]

Exercise: Sample Size Determination¶

Estimate a population mean with margin of error 5 at 95% confidence, given \(\sigma = 20\).

Solution.

\[ n = \left(\frac{1.96 \times 20}{5}\right)^2 = (7.84)^2 = 61.47 \implies \boxed{n = 62} \]

Exercise: Interpretation¶

A 90% confidence interval for the mean weight is (72, 78). Does this mean the probability of the true mean being between 72 and 78 is 90%?

Solution. No. The 90% confidence interval means that if we were to take many samples and compute a 90% CI for each, approximately 90% of those intervals would contain the true population mean. However, the true population mean is a fixed (unknown) value — it either lies within (72, 78) or it does not. The 90% refers to the confidence in the procedure, not the probability for this specific interval.

Exercise: Wider Confidence Interval¶

Will a 99% confidence interval be wider or narrower than a 95% CI? Why?

Solution. A 99% CI will always be wider than a 95% CI. To be 99% confident that the true population mean is captured by the interval, we need to account for more variability by expanding the range. A higher confidence level requires a larger critical value, which increases the margin of error.
