Repeated Sampling Concept¶

Overview¶

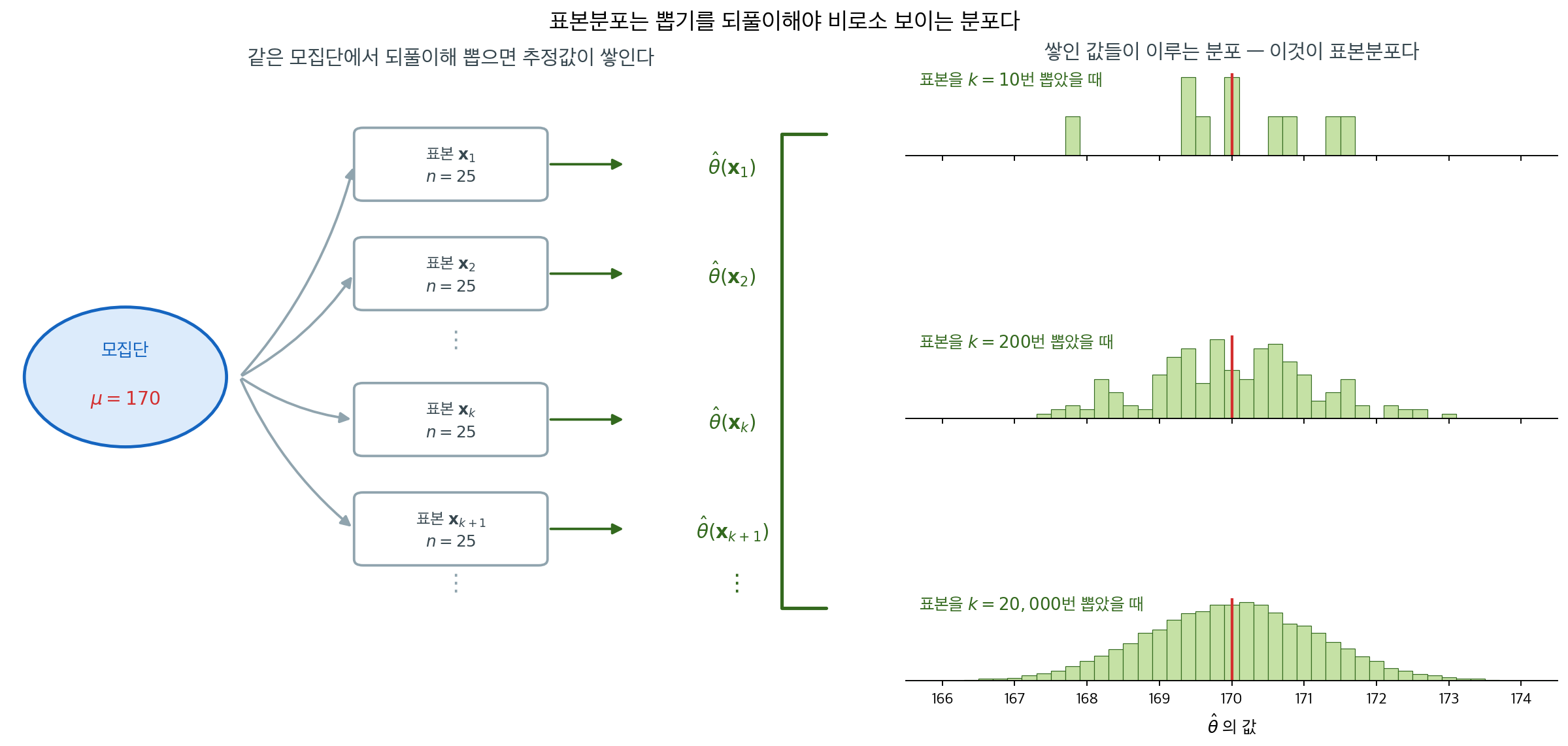

A sampling distribution is the probability distribution of a given statistic based on a random sample. When we draw multiple random samples from the same population and calculate a statistic (such as the sample mean or sample proportion) for each sample, the resulting values form a distribution. This distribution is known as the sampling distribution of that statistic.

\[ \left. \begin{array}{ccccc} \text{Population} &\rightarrow& \text{Sample } \mathbf{x}_1 &\rightarrow& \hat{\theta}(\mathbf{x}_1) \\ \\ \text{Population} &\rightarrow& \text{Sample } \mathbf{x}_2 &\rightarrow& \hat{\theta}(\mathbf{x}_2) \\ &\vdots& & & \\ \text{Population} &\rightarrow& \text{Sample } \mathbf{x}_n &\rightarrow& \hat{\theta}(\mathbf{x}_n) \\ &\vdots& & & \end{array} \right\} \;\; \begin{array}{c} \text{Sampling Distribution:} \\ \text{Distribution of } \hat{\theta}(\mathbf{x}_1), \hat{\theta}(\mathbf{x}_2), \cdots, \hat{\theta}(\mathbf{x}_n), \cdots \\ \text{or Distribution of } \hat{\theta}(\mathbf{x}) \end{array} \]

Why Are Sampling Distributions Important?¶

Sampling distributions are fundamental to inferential statistics, which involves making conclusions about a population based on a sample. By understanding the behavior of a statistic across multiple samples, we can:

Estimate population parameters (e.g., mean, variance) using statistics from the sample.
Calculate the standard error to understand the variability of an estimator.
Formulate confidence intervals to quantify the uncertainty of our estimates.
Perform hypothesis testing to make informed decisions about population parameters.

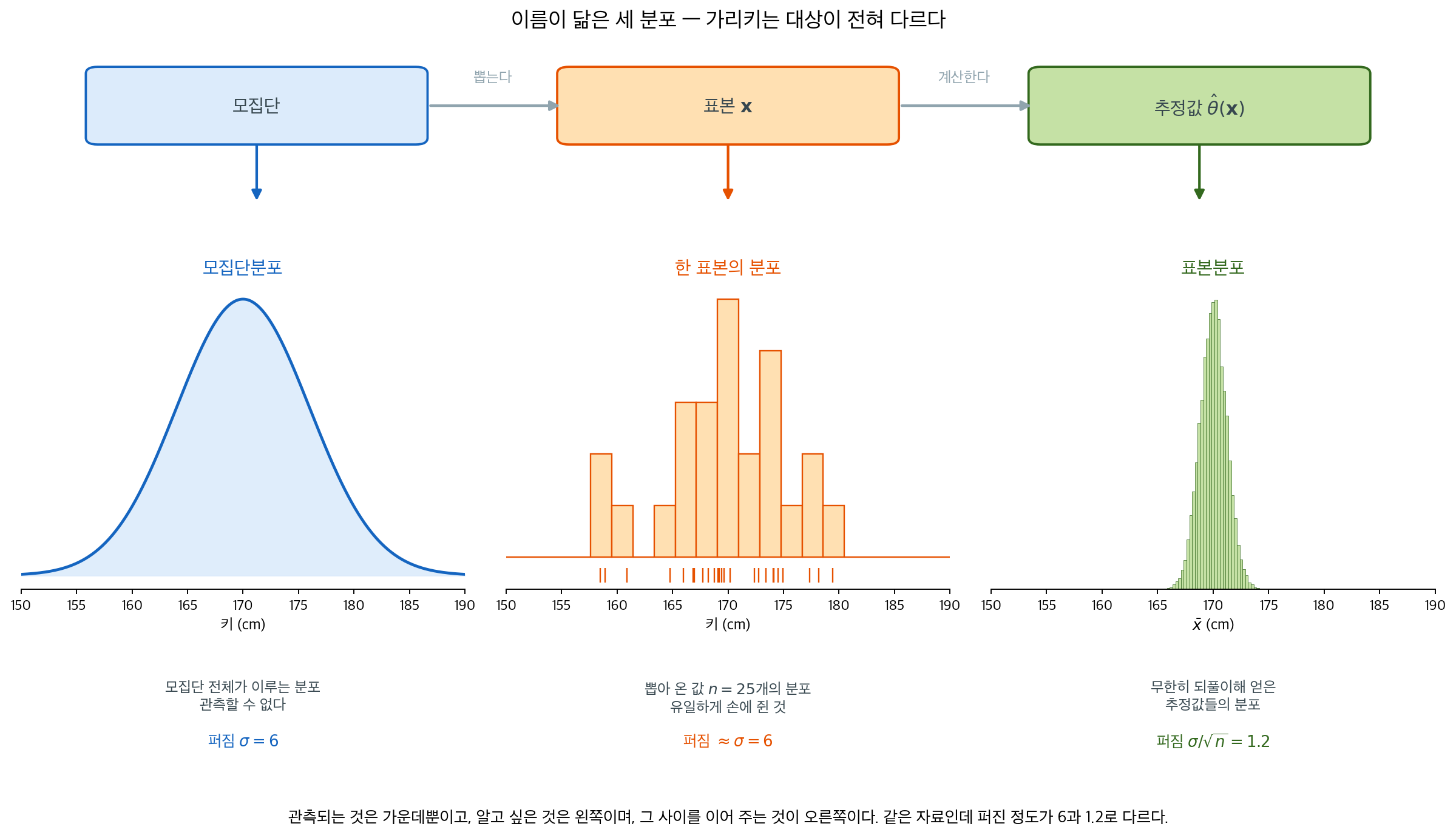

Three Distributions to Distinguish¶

Population Distribution, Sample Distribution, and Sampling Distribution¶

The Population Distribution represents the distribution of all possible values of a variable in the entire population. This is the underlying distribution that characterizes the population from which we draw samples.

The Sample Distribution refers to the distribution of values within a specific sample drawn from the population. A sample is a subset of the population, and we use it to make inferences about the entire population.

The Sampling Distribution describes the distribution of a statistic or estimator (such as the sample mean or sample proportion) computed from multiple samples of the same size drawn from the population. It helps us understand the variability of a statistic and is central to statistical inference.

\[ \begin{array}{ccccccc} \text{Population} &\rightarrow& \text{Sample } \mathbf{x} &\rightarrow& \text{Estimate } \hat{\theta}(\mathbf{x}) \\ \uparrow && \uparrow && \uparrow \\ \text{Population Distribution:} && \text{Sample Distribution:} && \text{Sampling Distribution:} \\ \text{Distribution of} && \text{Distribution of} && \text{Distribution of} \\ \text{Whole Population} && \text{Numbers in Particular Sample } \mathbf{x} && \text{Infinitely Many Estimates } \hat{\theta}(\mathbf{x}_i) \end{array} \]

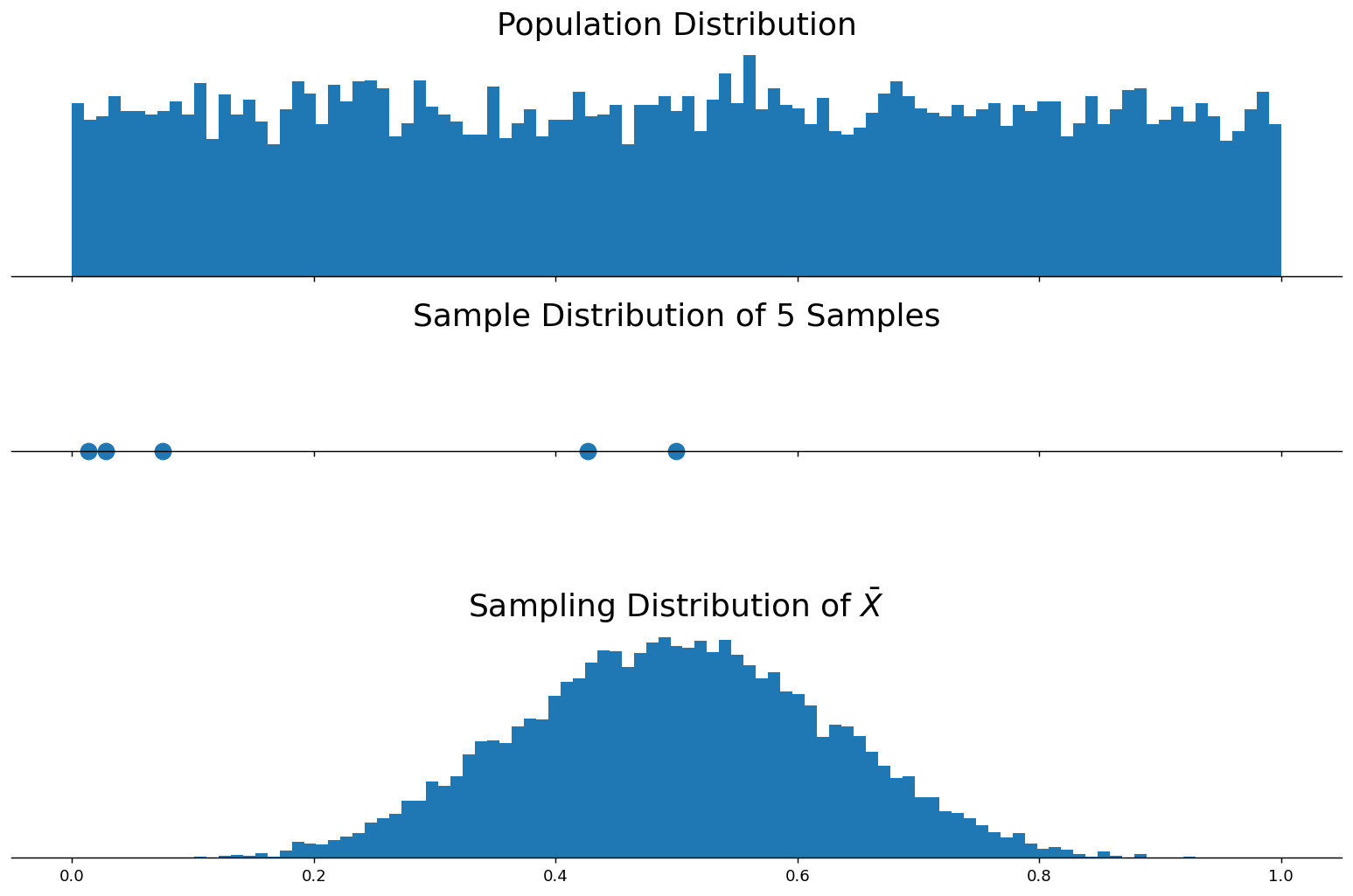

Simulation 1: Uniform Population¶

import matplotlib.pyplot as plt
import numpy as np

# Set a random seed for reproducibility
np.random.seed(1)

# Define parameters for the population, sample size, and number of samples for the simulation
sample_size = 5        # Size of a single random sample
n_samples = 10_000     # Number of samples to draw for the sampling distribution
n_population = 10_000  # Size of the population to simulate

def plot_distributions():
    """
    Generates a plot showing the population distribution, sample distribution,
    and sampling distribution.
    """
    # Generate a large population from a uniform distribution
    population = np.random.uniform(size=(n_population,))

    # Generate a single random sample from the population
    single_sample = np.random.choice(population, size=sample_size, replace=False)

    # Generate multiple samples and compute their means
    sample_means = [
        np.mean(np.random.choice(population, size=sample_size, replace=False))
        for _ in range(n_samples)
    ]

    # Create a 3-row subplot
    fig, (ax0, ax1, ax2) = plt.subplots(3, 1, figsize=(12, 8), sharex=True)

    # Plot the population distribution
    ax0.hist(population, bins=np.linspace(0, 1, 100))
    ax0.set_title('Population Distribution', fontsize=20)

    # Plot the sample distribution (scatter plot)
    ax1.scatter(single_sample, np.zeros_like(single_sample), s=100)
    ax1.set_title(f'Sample Distribution of {sample_size} Samples', fontsize=20)

    # Plot the sampling distribution (histogram of sample means)
    ax2.hist(sample_means, bins=np.linspace(0, 1, 100))
    ax2.set_title('Sampling Distribution of $\\bar{X}$', fontsize=20)

    # Adjust the aesthetics
    for ax in (ax0, ax1, ax2):
        ax.spines['left'].set_visible(False)
        ax.spines['right'].set_visible(False)
        ax.spines['top'].set_visible(False)
        ax.spines['bottom'].set_position('zero')
        ax.set_yticks([])

    plt.tight_layout()
    plt.show()

if __name__ == "__main__":
    plot_distributions()

Observation. Even though the population is uniform (flat), the sampling distribution of \(\bar{X}\) is bell-shaped and much more concentrated — a preview of the Central Limit Theorem.

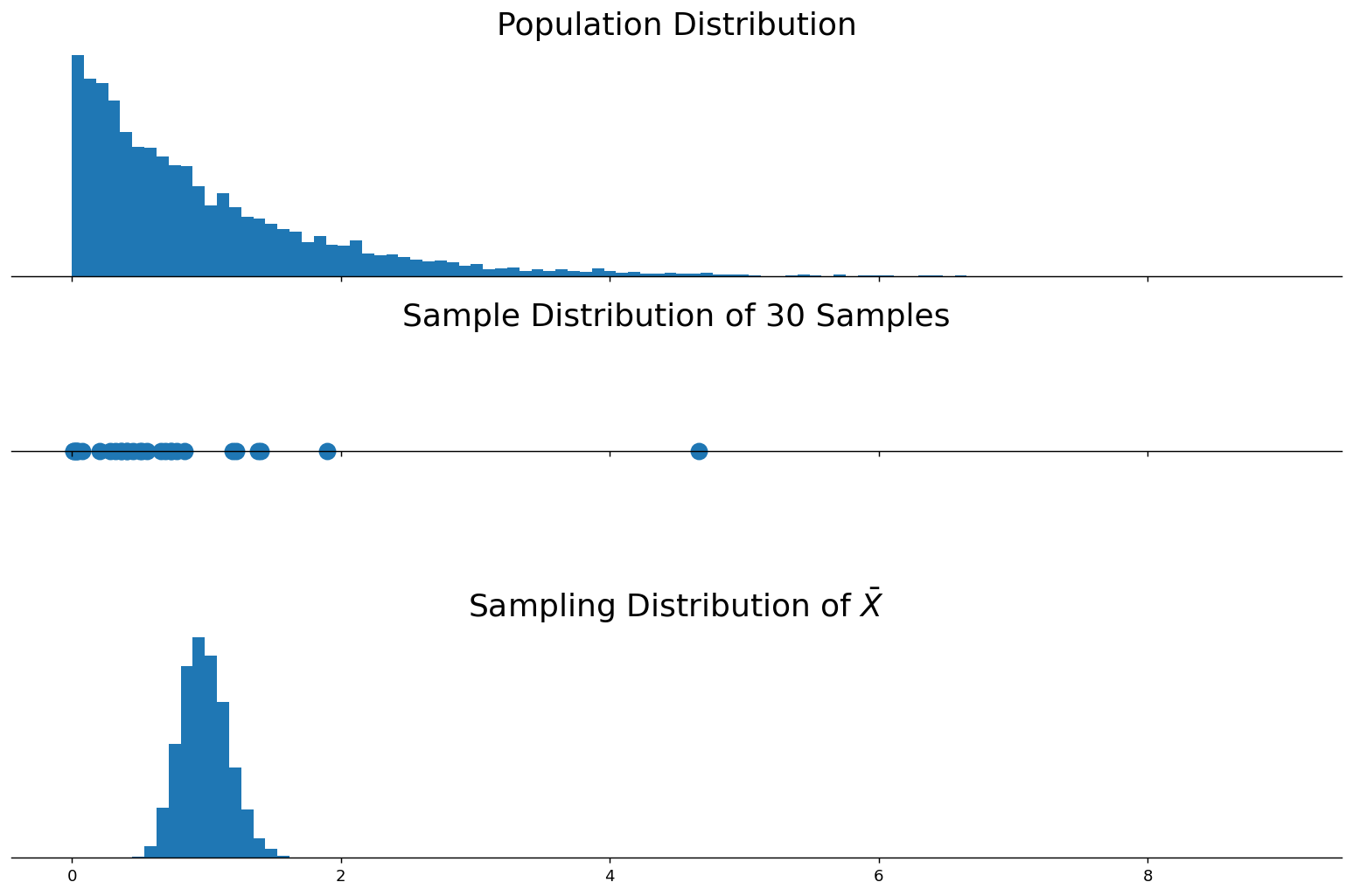

Simulation 2: Exponential Population¶

import matplotlib.pyplot as plt
import numpy as np
from scipy import stats

# Set a random seed for reproducibility
np.random.seed(1)

# Define parameters
sample_size = 30
n_samples = 10_000
n_population = 10_000

def plot_distributions():
    """
    Generates a plot showing the population distribution, sample distribution,
    and sampling distribution for an exponential population.
    """
    # Generate a large population from an exponential distribution
    population = stats.expon().rvs((n_population,))

    # Generate a single random sample from the population
    single_sample = np.random.choice(population, size=sample_size, replace=False)

    # Generate multiple samples and compute their means
    sample_means = [
        np.mean(np.random.choice(population, size=sample_size, replace=False))
        for _ in range(n_samples)
    ]

    # Create a 3-row subplot
    fig, (ax0, ax1, ax2) = plt.subplots(3, 1, figsize=(12, 8), sharex=True)

    # Plot the population distribution
    _, bins, _ = ax0.hist(population, bins=100)
    ax0.set_title('Population Distribution', fontsize=20)

    # Plot the sample distribution (scatter plot)
    ax1.scatter(single_sample, np.zeros_like(single_sample), s=100)
    ax1.set_title(f'Sample Distribution of {sample_size} Samples', fontsize=20)

    # Plot the sampling distribution (histogram of sample means)
    ax2.hist(sample_means, bins=bins)
    ax2.set_title('Sampling Distribution of $\\bar{X}$', fontsize=20)

    # Adjust the aesthetics
    for ax in (ax0, ax1, ax2):
        ax.spines['left'].set_visible(False)
        ax.spines['right'].set_visible(False)
        ax.spines['top'].set_visible(False)
        ax.spines['bottom'].set_position('zero')
        ax.set_yticks([])

    plt.tight_layout()
    plt.show()

if __name__ == "__main__":
    plot_distributions()

Observation. Although the exponential population is heavily right-skewed, the sampling distribution of \(\bar{X}\) with \(n = 30\) is approximately normal — the Central Limit Theorem at work.

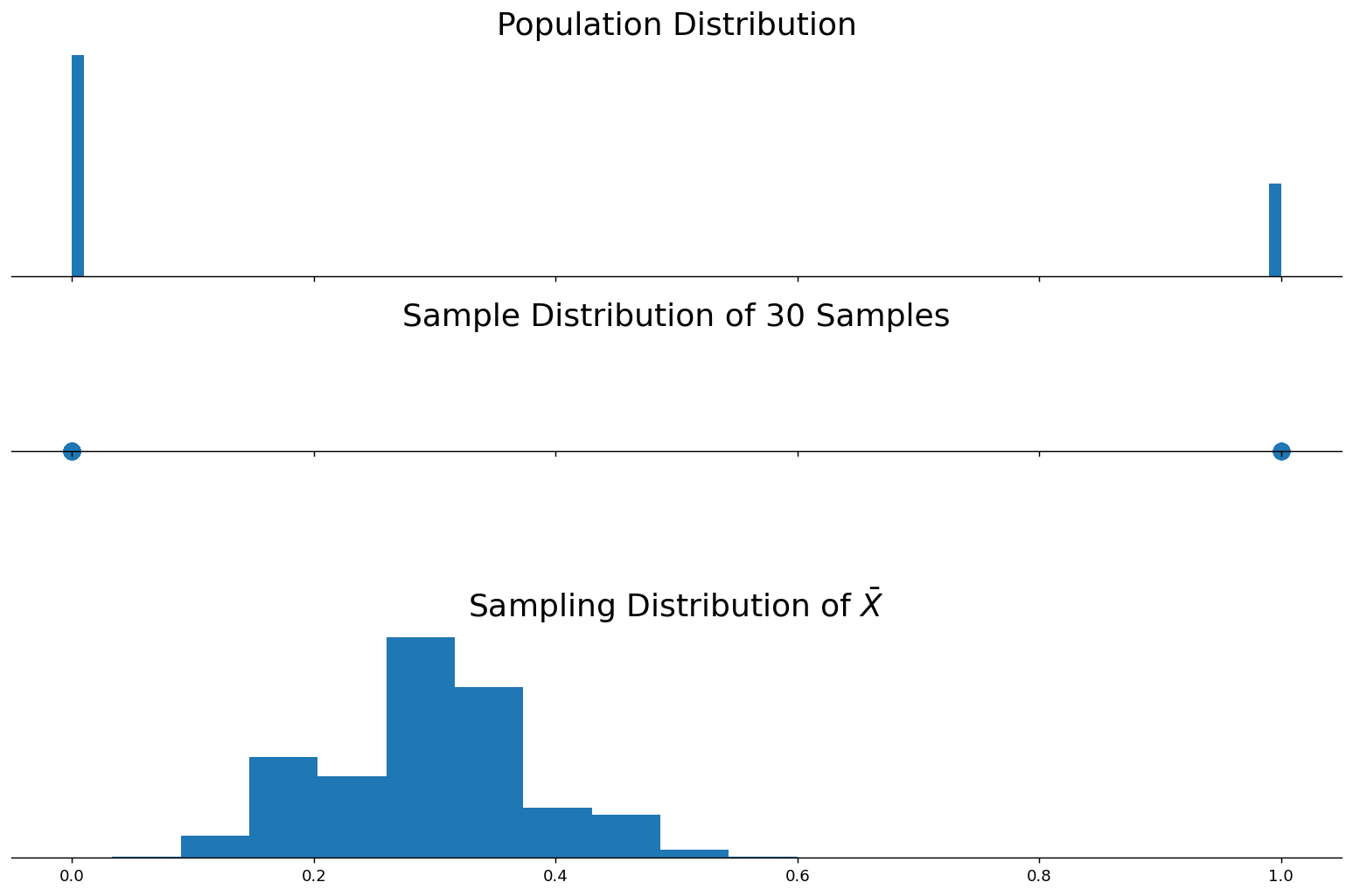

Simulation 3: Bernoulli Population¶

import matplotlib.pyplot as plt
import numpy as np
from scipy import stats

# Set a random seed for reproducibility
np.random.seed(1)

# Define parameters
sample_size = 30
n_samples = 10_000
n_population = 10_000

def plot_distributions():
    """
    Generates a plot showing the population distribution, sample distribution,
    and sampling distribution for a Bernoulli population.
    """
    # Generate a large population from a Bernoulli distribution
    population = stats.binom(n=1, p=0.3).rvs((n_population,))

    # Generate a single random sample from the population
    single_sample = np.random.choice(population, size=sample_size, replace=False)

    # Generate multiple samples and compute their means
    sample_means = [
        np.mean(np.random.choice(population, size=sample_size, replace=False))
        for _ in range(n_samples)
    ]

    # Create a 3-row subplot
    fig, (ax0, ax1, ax2) = plt.subplots(3, 1, figsize=(12, 8), sharex=True)

    # Plot the population distribution
    _, bins, _ = ax0.hist(population, bins=100)
    ax0.set_title('Population Distribution', fontsize=20)

    # Plot the sample distribution (scatter plot)
    ax1.scatter(single_sample, np.zeros_like(single_sample), s=100)
    ax1.set_title(f'Sample Distribution of {sample_size} Samples', fontsize=20)

    # Plot the sampling distribution (histogram of sample means)
    ax2.hist(sample_means, bins=10)
    ax2.set_title('Sampling Distribution of $\\bar{X}$', fontsize=20)

    # Adjust the aesthetics
    for ax in (ax0, ax1, ax2):
        ax.spines['left'].set_visible(False)
        ax.spines['right'].set_visible(False)
        ax.spines['top'].set_visible(False)
        ax.spines['bottom'].set_position('zero')
        ax.set_yticks([])

    plt.tight_layout()
    plt.show()

if __name__ == "__main__":
    plot_distributions()

Example: Sampling Distribution of Two Balls Drawn from Three Balls¶

Reference: Khan Academy — Introduction to Sampling Distributions

Problem. There are three balls in an urn, numbered one, two, and three. The population mean is \(\mu = 2\). We choose two balls with replacement and compute their mean. Compute the distribution of this sample mean — that is, the sampling distribution of \(\bar{X}\).

Solution. There are \(3^2 = 9\) equally likely outcomes:

import itertools as it
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

def main():
    sample_space = np.array([1, 2, 3])

    columns = ["first", "second", "average"]
    df = pd.DataFrame(columns=columns)
    for first, second in it.product(sample_space, repeat=2):
        dg = pd.DataFrame([[first, second, (first + second) / 2]], columns=columns)
        df = pd.concat([df, dg], ignore_index=True)
    print(df, end="\n\n")

    fig, ax = plt.subplots(figsize=(12, 3))
    bins = np.array([1.0, 1.5, 2.0, 2.5, 3.0, 3.5]) - 0.25
    ax.hist(df.average, bins=bins, density=True, alpha=0.7)
    ax.set_title(r"Sampling Distribution of $\bar{X}$")
    ax.spines["top"].set_visible(False)
    ax.spines["right"].set_visible(False)
    plt.show()

if __name__ == "__main__":
    main()

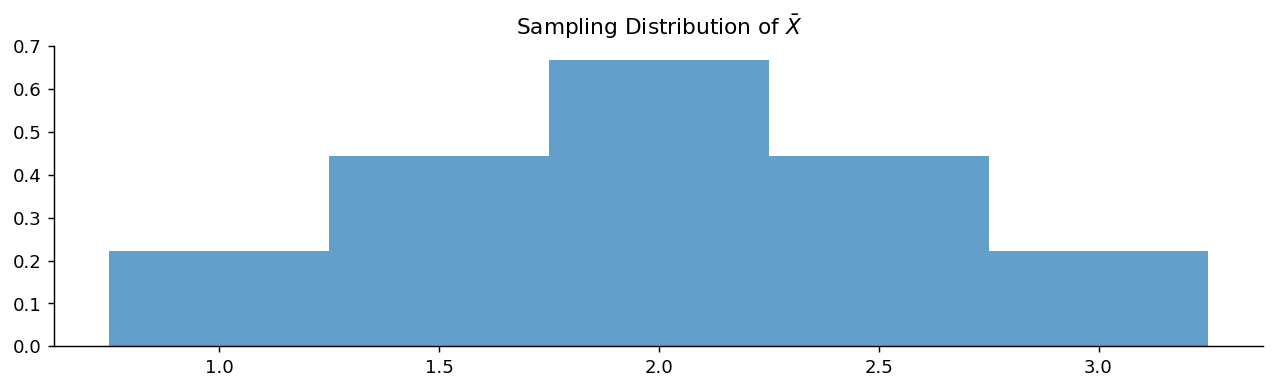

The sampling distribution has possible values \(\{1.0, 1.5, 2.0, 2.5, 3.0\}\) with probabilities \(\{1/9, 2/9, 3/9, 2/9, 1/9\}\). Its mean is \(E[\bar{X}] = 2 = \mu\), confirming that \(\bar{X}\) is unbiased.
