Chi-Square Distribution (chi-squared)¶

Overview¶

The chi-square distribution arises naturally as the distribution of a sum of squared standard normal random variables. It plays a central role in inference about population variance, goodness-of-fit tests, and tests of independence.

Definition¶

If \(Z_1, Z_2, \ldots, Z_d\) are independent standard normal random variables, then:

\[ \sum_{i=1}^d Z_i^2 \sim \chi^2_d \]

The parameter \(d\) is called the degrees of freedom.

Degrees of Freedom and Shape¶

The shape of the \(\chi^2\) distribution depends critically on \(d\):

Low \(d\) (e.g., 1–2): Highly right-skewed with a mode near zero.
High \(d\): Becomes more symmetric and approaches a normal distribution (by the CLT, since it is a sum of i.i.d. variables).

Properties¶

Basic Properties¶

\[ \begin{aligned} \text{Mean} &= d \\ \text{Variance} &= 2d \\ \end{aligned} \]

For \(d = 1\), the distribution is highly skewed. For larger \(d\), it becomes more symmetric.

Additivity¶

If \(X_1 \sim \chi^2_{d_1}\) and \(X_2 \sim \chi^2_{d_2}\) are independent, then:

\[ X_1 + X_2 \sim \chi^2_{d_1 + d_2} \]

This is useful when analyzing total variability across independent components.

PDF¶

\[ f(x; d) = \frac{1}{2^{d/2}\,\Gamma(d/2)} \, x^{(d/2)-1} \, e^{-x/2}, \quad x > 0 \]

import numpy as np
import matplotlib.pyplot as plt
from scipy.stats import chi2

x = np.linspace(0, 20, 500)
fig, ax = plt.subplots(figsize=(12, 5))

for df in range(1, 11):
    ax.plot(x, chi2.pdf(x, df), label=f'df = {df}', alpha=0.7)

ax.set_xlabel('x')
ax.set_ylabel('Density')
ax.set_title('Chi-Square PDF for Various Degrees of Freedom')
ax.legend(title='df')
ax.grid(True, alpha=0.3)
plt.show()

CDF¶

import numpy as np
import matplotlib.pyplot as plt
from scipy.stats import chi2

x = np.linspace(0, 20, 500)
fig, ax = plt.subplots(figsize=(12, 5))

for df in range(1, 11):
    ax.plot(x, chi2.cdf(x, df), label=f'df = {df}', alpha=0.7)

ax.set_xlabel('x')
ax.set_ylabel('Cumulative Probability')
ax.set_title('Chi-Square CDF')
ax.legend(title='df')
ax.grid(True, alpha=0.3)
plt.show()

PPF (Inverse CDF)¶

from scipy import stats

df = 10
chi2_975 = stats.chi2(df).ppf(0.975)
print(f"97.5th percentile of χ²(10): {chi2_975:.4f}")

chi2_99 = stats.chi2(df).ppf(0.99)
print(f"99th percentile of χ²(10): {chi2_99:.4f}")

Random Samples¶

Direct Sampling¶

import numpy as np
import matplotlib.pyplot as plt
from scipy import stats

np.random.seed(0)
df = 5
data = stats.chi2(df).rvs(10_000)

fig, ax = plt.subplots(figsize=(12, 3))
_, bins, _ = ax.hist(data, bins=100, density=True, alpha=0.7, label='χ² Samples')
ax.plot(bins, stats.chi2(df).pdf(bins), '--r', lw=3, label='χ² PDF')
ax.legend()
plt.show()

Sampling from Definition (Sum of Squared Normals)¶

import numpy as np
import matplotlib.pyplot as plt
from scipy import stats

np.random.seed(0)
df = 5
data = np.sum(stats.norm().rvs((df, 10_000))**2, axis=0)

fig, ax = plt.subplots(figsize=(12, 3))
_, bins, _ = ax.hist(data, bins=100, density=True, alpha=0.7, label='Sum of Z² Samples')
ax.plot(bins, stats.chi2(df).pdf(bins), '--r', lw=3, label='χ² PDF')
ax.legend()
plt.show()

Why Chi-Square?¶

The chi-square distribution arises in the study of sample variance. For i.i.d. \(X_i \sim N(\mu, \sigma^2)\):

\[ \frac{(n-1)S^2}{\sigma^2} = \sum_{i=1}^n \left(\frac{X_i - \bar{X}}{\sigma}\right)^2 \sim \chi^2_{n-1} \]

This result allows us to construct confidence intervals and hypothesis tests for \(\sigma^2\).

Dependence on Normality¶

This exact chi-square result depends critically on the normality assumption:

For normal populations: \(\bar{X}\) and \(S^2\) are independent, and \((n-1)S^2/\sigma^2\) is exactly chi-square.
For non-normal populations: the chi-square approximation is unreliable, especially for small \(n\). The distribution of \(S^2\) may differ dramatically.

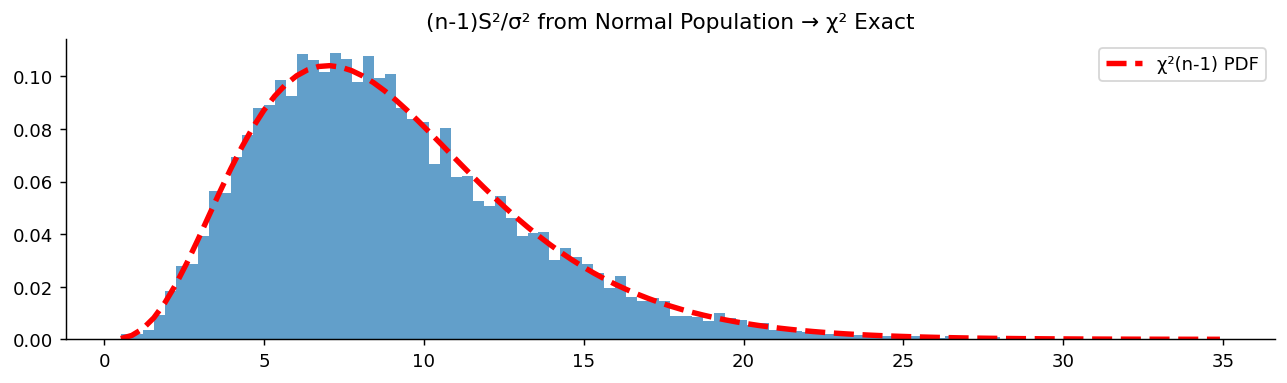

Simulation: Normal Population¶

import matplotlib.pyplot as plt
import numpy as np
import scipy.stats as stats

n, n_sim, mu, sigma = 10, 10_000, 1, 2
samples = stats.norm(loc=mu, scale=sigma).rvs(size=(n_sim, n))
s = samples.std(axis=1, ddof=1)
data = (n - 1) * s**2 / sigma**2

fig, ax = plt.subplots(figsize=(12, 3))
_, bins, _ = ax.hist(data, bins=100, density=True, alpha=0.7)
ax.plot(bins, stats.chi2(n-1).pdf(bins), '--r', lw=3, label='χ²(n-1) PDF')
ax.set_title('(n-1)S²/σ² from Normal Population → χ² Exact')
ax.legend()
ax.spines[['top', 'right']].set_visible(False)
plt.show()

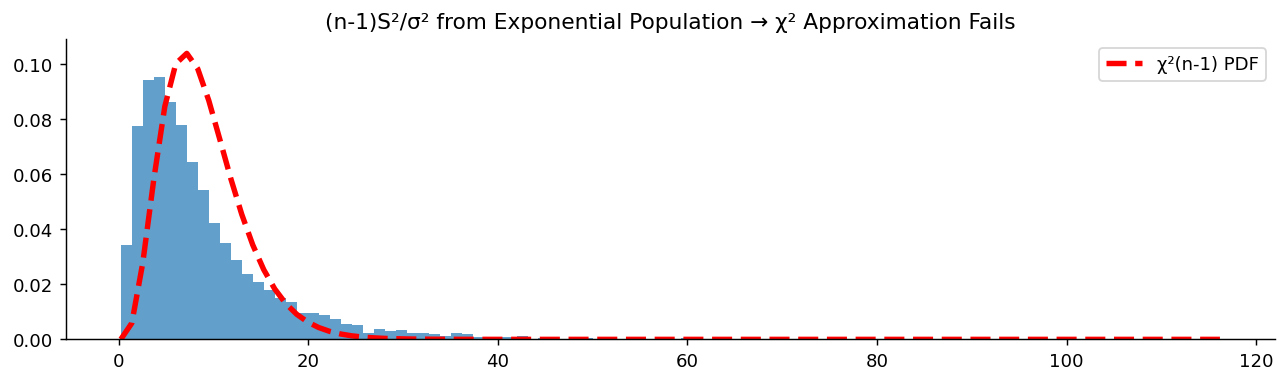

Simulation: Non-Normal Population¶

import matplotlib.pyplot as plt
import numpy as np
import scipy.stats as stats

n, n_sim = 10, 10_000
samples = stats.expon().rvs(size=(n_sim, n))  # Exponential, not normal
s = samples.std(axis=1, ddof=1)
data = (n - 1) * s**2  # σ² = 1 for Exp(1)

fig, ax = plt.subplots(figsize=(12, 3))
_, bins, _ = ax.hist(data, bins=100, density=True, alpha=0.7)
ax.plot(bins, stats.chi2(n-1).pdf(bins), '--r', lw=3, label='χ²(n-1) PDF')
ax.set_title('(n-1)S²/σ² from Exponential Population → χ² Approximation Fails')
ax.legend()
ax.spines[['top', 'right']].set_visible(False)
plt.show()

Practical Implications¶

Scenario	Chi-Square Validity
Normal population	Exact
Large \(n\), non-normal	May be approximately valid via CLT
Small \(n\), skewed/binary population	Unreliable; use exact or resampling methods
Binary data	Use \(np \geq 5\) and \(n(1-p) \geq 5\) rule

Key Takeaways¶

The chi-square distribution is the sum of squared standard normal variables.
It governs inference about population variance when the population is normal.
The additivity property makes it useful for combining independent variance components.
The exactness of the chi-square result for \(S^2\) depends critically on normality.
