Normal Distribution¶

Overview¶

The normal distribution (also called the Gaussian distribution) is one of the most fundamental probability distributions in statistics. It describes continuous data that cluster around a central value, tapering off symmetrically on both sides in a characteristic "bell curve."

Definition¶

A normal distribution is characterized by its mean \(\mu\) (center) and variance \(\sigma^2\) (spread). The PDF is:

\[ f(x; \mu, \sigma^2) = \frac{1}{\sqrt{2\pi\sigma^2}} \exp\left(-\frac{(x - \mu)^2}{2\sigma^2}\right) \]

We write \(X \sim N(\mu, \sigma^2)\).

Standard Normal Distribution¶

The special case with \(\mu = 0\) and \(\sigma = 1\) is the standard normal distribution:

\[ Z \sim N(0, 1), \qquad f(z) = \frac{1}{\sqrt{2\pi}} \exp\left(-\frac{z^2}{2}\right) \]

Standardization¶

Any normal variable can be converted to a standard normal via the Z-score transformation:

\[ \begin{aligned} \textbf{Standardization:} \quad & X \sim N(\mu, \sigma^2) \implies Z = \frac{X - \mu}{\sigma} \sim N(0, 1) \\[6pt] \textbf{Reverse:} \quad & Z \sim N(0, 1) \implies X = Z\sigma + \mu \sim N(\mu, \sigma^2) \end{aligned} \]

Properties of the Normal Distribution¶

Closure Properties¶

\[ \begin{aligned} (1) &\quad X \sim \text{Normal} \implies aX + b \sim \text{Normal} \\[4pt] (2) &\quad X \sim \text{Normal}, \; Y \sim \text{Normal}, \; X \perp Y \implies X + Y \sim \text{Normal} \\[4pt] (3) &\quad (X, Y) \sim \text{Multivariate Normal} \implies X + Y \sim \text{Normal} \end{aligned} \]

Warning: \(X \sim \text{Normal}\) and \(Y \sim \text{Normal}\) does not imply \(X + Y \sim \text{Normal}\) unless independence or joint normality holds.

Proof of Property (1)¶

For \(a > 0\) and \(X \sim N(\mu, \sigma^2)\):

\[ P(aX + b \leq x) = P\left(X \leq \frac{x - b}{a}\right) = \int_{-\infty}^{(x-b)/a} \frac{1}{\sqrt{2\pi\sigma^2}} e^{-\frac{(s-\mu)^2}{2\sigma^2}} ds \]

Differentiating with respect to \(x\):

\[ f_{aX+b}(x) = \frac{1}{\sqrt{2\pi(a\sigma)^2}} \exp\left(-\frac{(x - (a\mu + b))^2}{2a^2\sigma^2}\right) \]

Therefore \(aX + b \sim N(a\mu + b, \, a^2\sigma^2)\).

Key Geometric Properties¶

Symmetry: Perfectly symmetric about \(\mu\); mean = median = mode = \(\mu\).
Bell-shaped: Most data is concentrated near the mean.
Infinite tails: The tails extend to \(\pm\infty\) but with rapidly decreasing probability.

68–95–99.7 Rule¶

\[ \begin{aligned} P(\mu - \sigma < X < \mu + \sigma) &\approx 68\% \\ P(\mu - 2\sigma < X < \mu + 2\sigma) &\approx 95\% \\ P(\mu - 3\sigma < X < \mu + 3\sigma) &\approx 99.7\% \end{aligned} \]

PDF of the Standard Normal: Verifying Key Properties¶

The PDF of \(N(0, 1)\) is \(f(x) = \frac{1}{\sqrt{2\pi}} e^{-x^2/2}\). We verify:

(1) Total mass is 1¶

Let \(I = \int_{-\infty}^{\infty} e^{-x^2/2}\,dx\). Then:

\[ I^2 = \int\!\!\int e^{-(x^2+y^2)/2}\,dx\,dy = \int_0^{2\pi}\!\int_0^{\infty} e^{-r^2/2}\,r\,dr\,d\theta = 2\pi \]

So \(I = \sqrt{2\pi}\), confirming \(\int f(x)\,dx = 1\).

(2) Mean is 0¶

The integrand \(x \cdot e^{-x^2/2}\) is an odd function, so the integral over \((-\infty, \infty)\) is 0.

(3) Variance is 1¶

By integration by parts:

\[ \frac{1}{\sqrt{2\pi}} \int_{-\infty}^{\infty} x^2 e^{-x^2/2}\,dx = \frac{1}{\sqrt{2\pi}} \int_{-\infty}^{\infty} e^{-x^2/2}\,dx = 1 \]

CDF of the Standard Normal¶

The CDF has no closed form and is computed numerically:

\[ \Phi(x) = N(x) = \int_{-\infty}^x \frac{1}{\sqrt{2\pi}} e^{-s^2/2}\,ds \]

Properties of Phi¶

\[ \begin{aligned} (1) &\quad P(a \leq Z \leq b) = \Phi(b) - \Phi(a) \\ (2) &\quad P(Z \geq x) = P(Z \leq -x) = \Phi(-x) \\ (3) &\quad P(Z \geq x) = 1 - \Phi(x) \\ (4) &\quad P(Z \leq 0) = P(Z \geq 0) = 0.5 \end{aligned} \]

Problem: Compute \(\int_{-\infty}^{\infty} e^{-x^2 - 2x}\,dx\).

Solution: Complete the square: \(-x^2 - 2x = -(x+1)^2 + 1\). Then:

\[ \int_{-\infty}^{\infty} e^{-x^2-2x}\,dx = e \int_{-\infty}^{\infty} e^{-(x+1)^2}\,dx = e\sqrt{2\pi \cdot \tfrac{1}{2}} \cdot \underbrace{\int \frac{1}{\sqrt{\pi}} e^{-(x+1)^2}\,dx}_{=1 \text{ (PDF of } N(-1, 1/2))} = e\sqrt{\pi} \]

Python: Plotting PDF, CDF, and Sampling¶

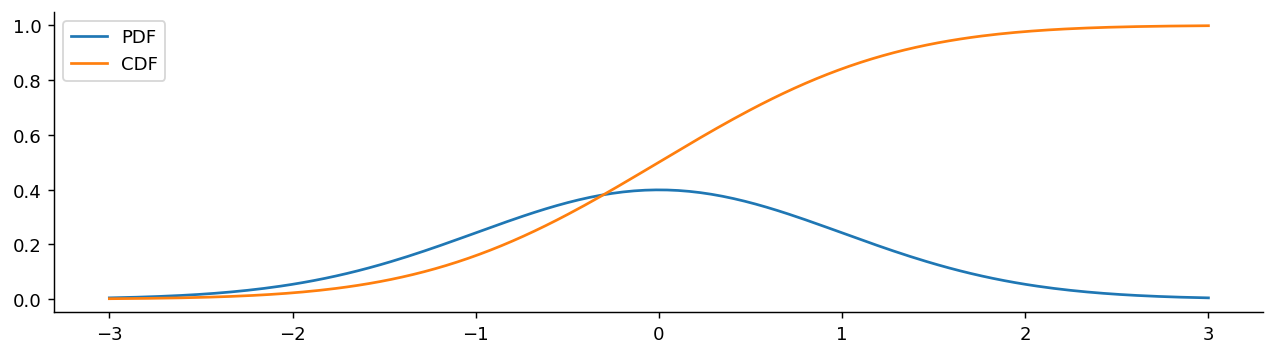

PDF and CDF¶

import matplotlib.pyplot as plt
import numpy as np
from scipy import stats

mu, sigma = 0, 1
x = np.linspace(mu - 3*sigma, mu + 3*sigma, 200)

fig, ax = plt.subplots(figsize=(12, 3))
ax.plot(x, stats.norm(mu, sigma).pdf(x), label='PDF')
ax.plot(x, stats.norm(mu, sigma).cdf(x), label='CDF')
ax.spines[['top', 'right']].set_visible(False)
ax.legend()
plt.show()

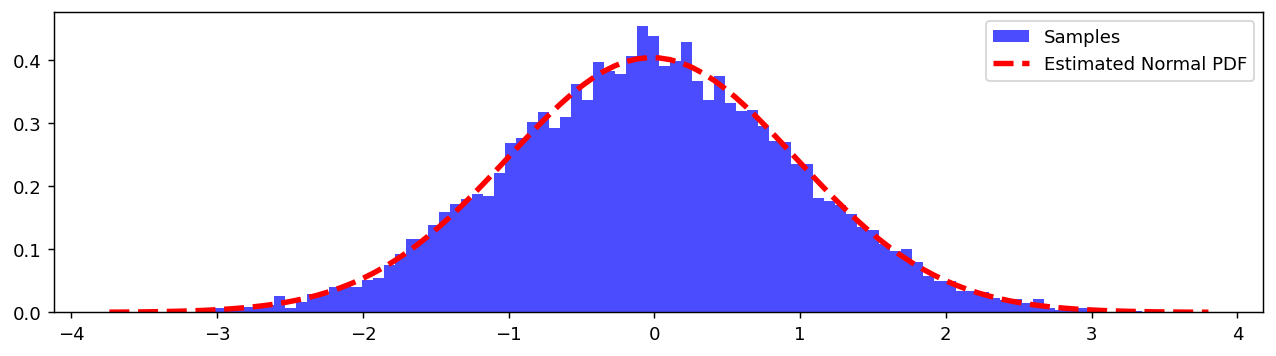

Sampling with Estimated PDF¶

import numpy as np
import matplotlib.pyplot as plt
from scipy import stats

np.random.seed(0)
data = stats.norm(loc=0, scale=1).rvs(10_000)

fig, ax = plt.subplots(figsize=(12, 3))
_, bins, _ = ax.hist(data, bins=100, density=True, color='blue', alpha=0.7, label="Samples")
ax.plot(bins, stats.norm(data.mean(), data.std()).pdf(bins),
        '--r', lw=3, label="Estimated Normal PDF")
ax.legend()
plt.show()

68–95–99.7 Rule Verification¶

import pandas as pd

url = 'https://raw.githubusercontent.com/gedeck/practical-statistics-for-data-scientists/master/data/loans_income.csv'
df = pd.read_csv(url)
mean, std, n = df.x.mean(), df.x.std(), len(df.x)

n1 = len(df.x[(mean - std < df.x) & (df.x < mean + std)])
n2 = len(df.x[(mean - 2*std < df.x) & (df.x < mean + 2*std)])
n3 = len(df.x[(mean - 3*std < df.x) & (df.x < mean + 3*std)])

print(f"Within 1σ: {n1/n*100:.2f}%")   # ≈ 68%
print(f"Within 2σ: {n2/n*100:.2f}%")   # ≈ 95%
print(f"Within 3σ: {n3/n*100:.2f}%")   # ≈ 99.7%

Area Under the Standard Normal Curve¶

scipy.stats Methods¶

Method	Description
`rvs`	Generate random samples
`pdf`	Compute the PDF

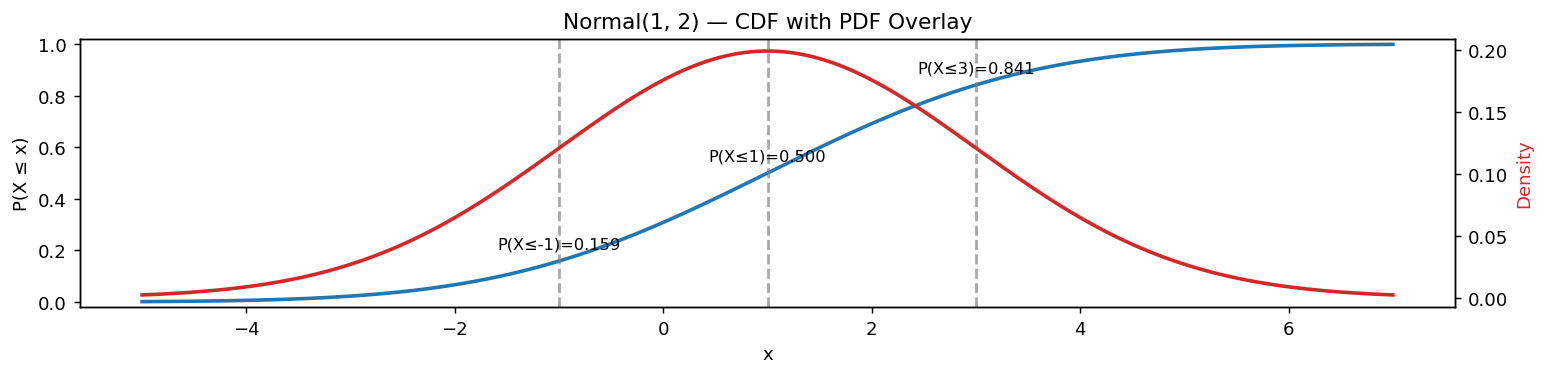

`cdf`	Compute \(P(X \leq x)\)

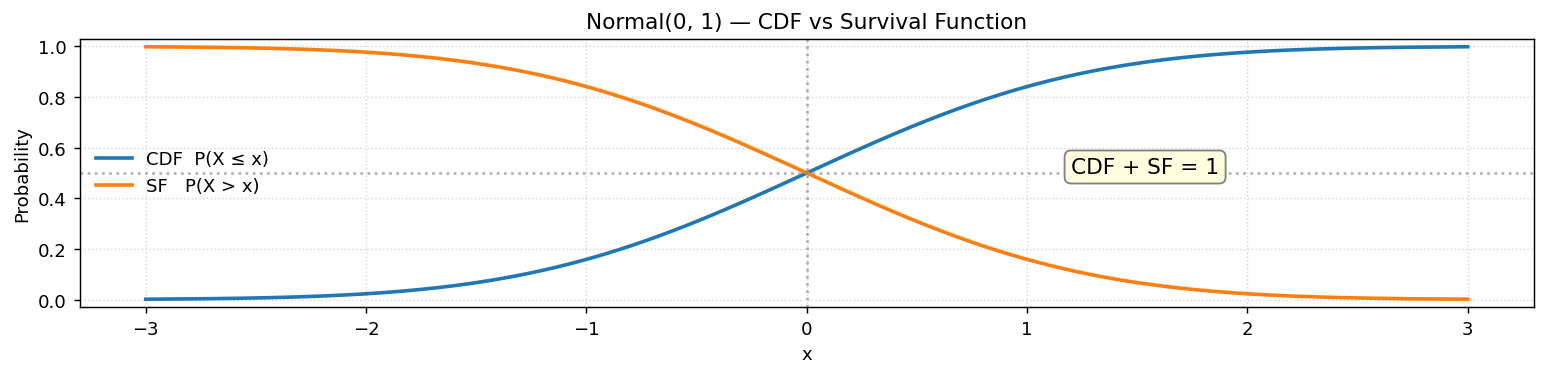

`sf`	Survival function: \(1 - \text{cdf}(x)\)

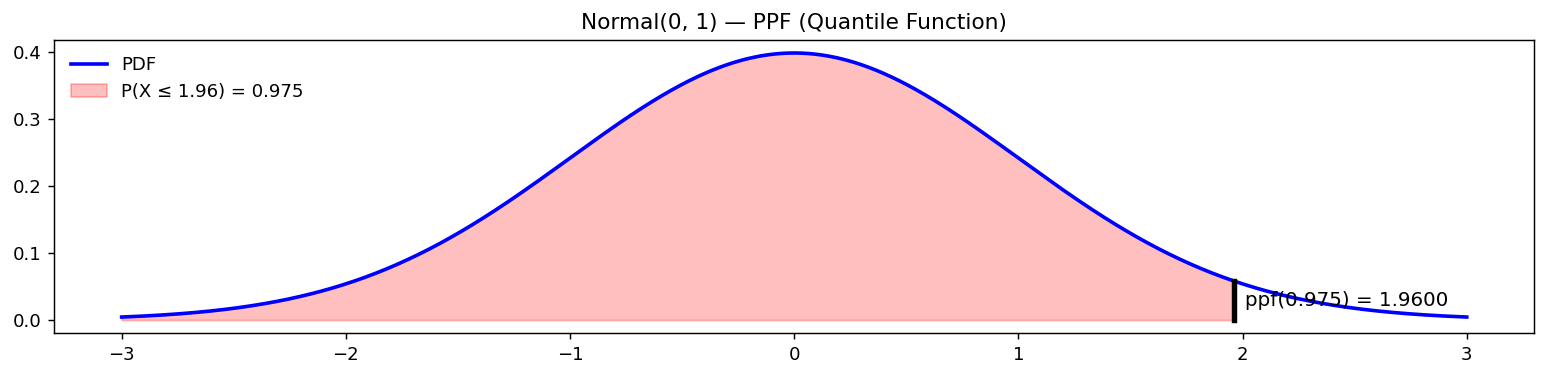

`ppf`	Percent point function (inverse of CDF)

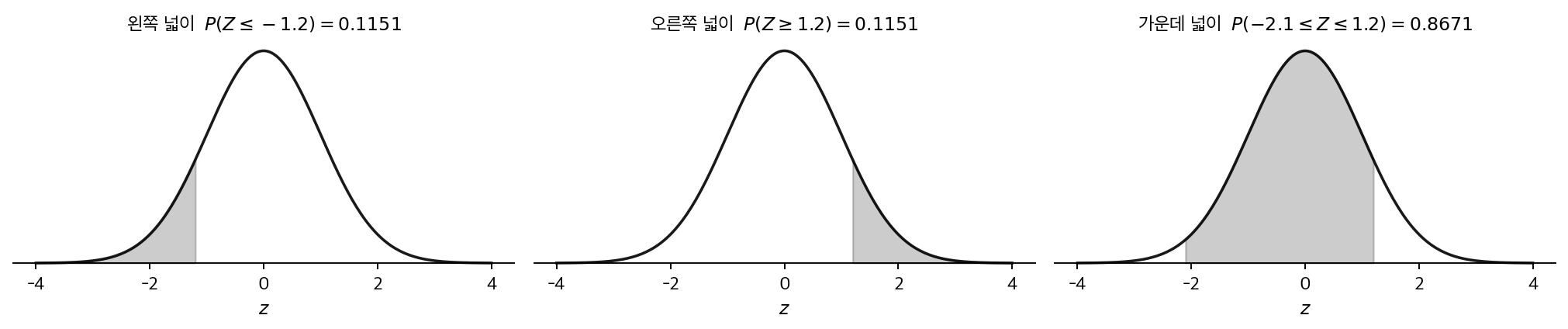

Left-Tail, Right-Tail, and Center Areas¶

import matplotlib.pyplot as plt
import numpy as np
import scipy.stats as stats

def shade_area(z_bounds, side='left', ax=None):
    """Shade a region under the standard normal curve."""
    x = np.linspace(-4, 4, 200)
    ax.plot(x, stats.norm().pdf(x), color='k', alpha=0.9)

    if side == 'left':
        x_shade = np.linspace(-4, z_bounds, 200)
    elif side == 'right':
        x_shade = np.linspace(z_bounds, 4, 200)
    else:  # center
        x_shade = np.linspace(z_bounds[0], z_bounds[1], 200)

    ax.fill_between(x_shade, stats.norm().pdf(x_shade), alpha=0.2, color='k')
    ax.spines[['left', 'right', 'top']].set_visible(False)
    ax.spines['bottom'].set_position('zero')
    ax.set_yticks([])

# Left area
z = -1.2
print(f"P(Z ≤ {z}) = {stats.norm().cdf(z):.4f}")

# Right area
z = 1.2
print(f"P(Z ≥ {z}) = {stats.norm().sf(z):.4f}")

# Center area
z1, z2 = -2.1, 1.2
print(f"P({z1} ≤ Z ≤ {z2}) = {stats.norm().cdf(z2) - stats.norm().cdf(z1):.4f}")

Why Normal?¶

The Central Limit Theorem explains the ubiquity of the normal distribution: the distribution of sample means is approximately normal for large \(n\), regardless of the original population distribution:

\[ \bar{X} \sim N\left(\mu, \frac{\sigma^2}{n}\right) \quad \text{as } n \to \infty \]

This makes the normal distribution the foundation for confidence intervals, hypothesis testing, and quality control.

Fixing the Random Seed¶

scipy.stats uses NumPy's random number generator, so setting np.random.seed() ensures reproducibility:

import numpy as np
import scipy.stats as stats

np.random.seed(42)
samples = stats.norm.rvs(size=10)
print(samples)  # Same output every time with seed 42

Key Takeaways¶

The normal distribution \(N(\mu, \sigma^2)\) is characterized by its bell shape, symmetry, and the 68–95–99.7 rule.
The standard normal \(N(0,1)\) serves as a universal reference via Z-score standardization.
Linear transformations and sums of independent normals remain normal.
The CDF has no closed form but is efficiently computed numerically.
The CLT explains why the normal distribution appears so frequently in nature and statistics.
