Variance and Covariance¶
Overview¶
While the expected value summarizes the center of a distribution, variance measures how spread out the distribution is around the mean. Covariance and correlation capture the degree to which two random variables move together. These concepts are essential for risk measurement, portfolio theory, and statistical inference.
Variance¶
Definition¶
The variance of a random variable \(X\) is the expected squared deviation from the mean:
where \(\mu = E[X]\). The second form, \(E[X^2] - (E[X])^2\), is often more convenient for computation.
Standard Deviation¶
The standard deviation is the square root of variance, returning the spread to the original units:
Properties of Variance¶
- Non-negativity: \(\text{Var}(X) \geq 0\), with equality if and only if \(X\) is constant.
- Constant: \(\text{Var}(c) = 0\)
- Scaling: \(\text{Var}(aX) = a^2 \text{Var}(X)\)
- Shift invariance: \(\text{Var}(X + c) = \text{Var}(X)\)
- Sum (independent): If \(X \perp\!\!\!\perp Y\), then \(\text{Var}(X + Y) = \text{Var}(X) + \text{Var}(Y)\)
For general (possibly dependent) random variables:
Covariance¶
Definition¶
The covariance of \(X\) and \(Y\) measures how they co-vary:
- \(\text{Cov}(X, Y) > 0\): \(X\) and \(Y\) tend to move in the same direction.
- \(\text{Cov}(X, Y) < 0\): \(X\) and \(Y\) tend to move in opposite directions.
- \(\text{Cov}(X, Y) = 0\): no linear relationship (but they may still be dependent).
Properties of Covariance¶
- Self-covariance: \(\text{Cov}(X, X) = \text{Var}(X)\)
- Symmetry: \(\text{Cov}(X, Y) = \text{Cov}(Y, X)\)
- Bilinearity: \(\text{Cov}(aX + b, cY + d) = ac \cdot \text{Cov}(X, Y)\)
- Independence implies zero: If \(X \perp\!\!\!\perp Y\), then \(\text{Cov}(X, Y) = 0\) (but the converse is false)
Correlation¶
The Pearson correlation coefficient normalizes covariance to lie in \([-1, 1]\):
- \(\rho = 1\): perfect positive linear relationship
- \(\rho = -1\): perfect negative linear relationship
- \(\rho = 0\): no linear relationship (uncorrelated)
Important: Uncorrelated (\(\rho = 0\)) does not imply independent. For example, if \(X \sim N(0,1)\) and \(Y = X^2\), then \(\text{Cov}(X, Y) = E[X^3] = 0\) but \(X\) and \(Y\) are clearly dependent.
Variance of a Sum (General Case)¶
For any random variables \(X_1, \ldots, X_n\):
If all \(X_i\) are pairwise uncorrelated, the cross terms vanish and:
Examples¶
Example: Variance of a Fair Die¶
Example: Bernoulli Random Variable¶
For \(X \sim \text{Bernoulli}(p)\):
The variance is maximized at \(p = 0.5\) (maximum uncertainty) and equals zero at \(p = 0\) or \(p = 1\) (certainty).
Example: Portfolio Variance¶
Two assets with returns \(R_1\) and \(R_2\), weights \(w_1\) and \(w_2\) (\(w_1 + w_2 = 1\)). The portfolio return is \(R_p = w_1 R_1 + w_2 R_2\):
When \(\rho < 1\), diversification reduces portfolio variance below the weighted average of individual variances.
Python Exploration¶
import numpy as np
# Variance of a fair die
values = np.arange(1, 7)
probs = np.ones(6) / 6
E_X = np.sum(values * probs)
E_X2 = np.sum(values**2 * probs)
var_X = E_X2 - E_X**2
print(f"E[X] = {E_X:.4f}")
print(f"E[X²] = {E_X2:.4f}")
print(f"Var(X) = {var_X:.4f}")
print(f"SD(X) = {np.sqrt(var_X):.4f}")
import numpy as np
import matplotlib.pyplot as plt

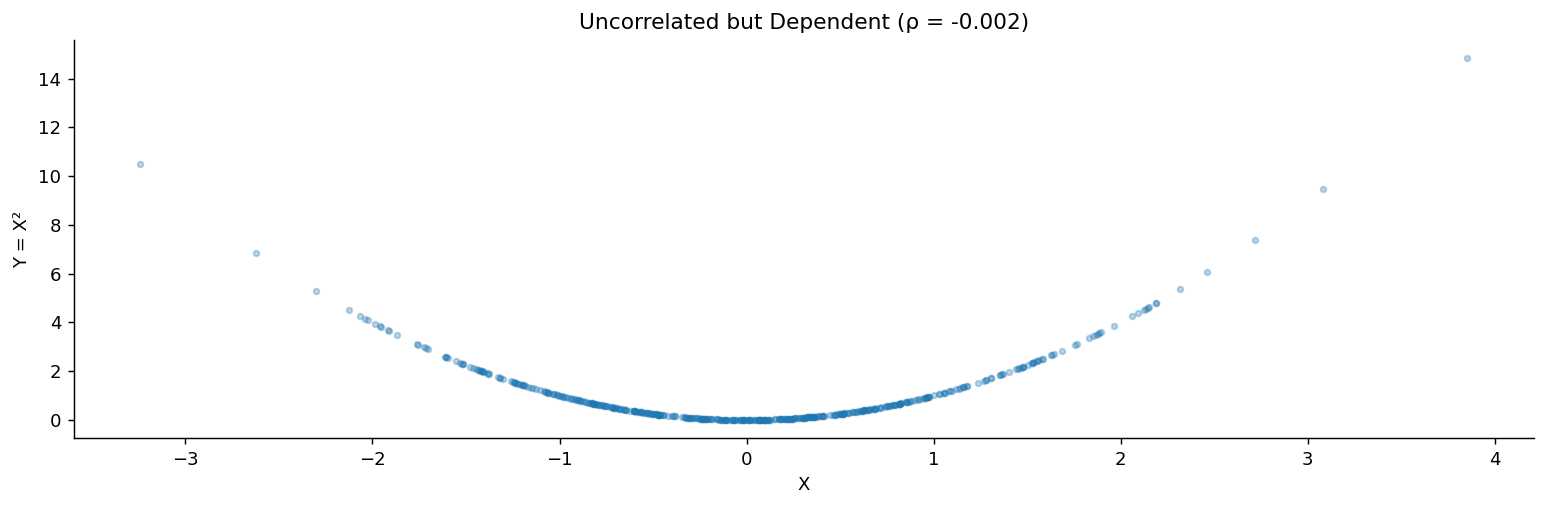

def demonstrate_correlation():
"""Show uncorrelated does not imply independent."""
np.random.seed(42)
n = 10_000
X = np.random.randn(n)
Y = X ** 2 # deterministically dependent on X
cov_XY = np.cov(X, Y)[0, 1]
corr_XY = np.corrcoef(X, Y)[0, 1]
print(f"Cov(X, X²) = {cov_XY:.4f} (theoretically 0)")
print(f"Corr(X, X²) = {corr_XY:.4f}")
print(f"Yet X and X² are clearly dependent!")
fig, ax = plt.subplots(figsize=(12, 4))
ax.scatter(X[:500], Y[:500], alpha=0.3, s=10)
ax.set_xlabel('X')
ax.set_ylabel('Y = X²')
ax.set_title(f'Uncorrelated but Dependent (ρ = {corr_XY:.3f})')
ax.spines[['top', 'right']].set_visible(False)
plt.tight_layout()
plt.show()
demonstrate_correlation()
import numpy as np
import matplotlib.pyplot as plt

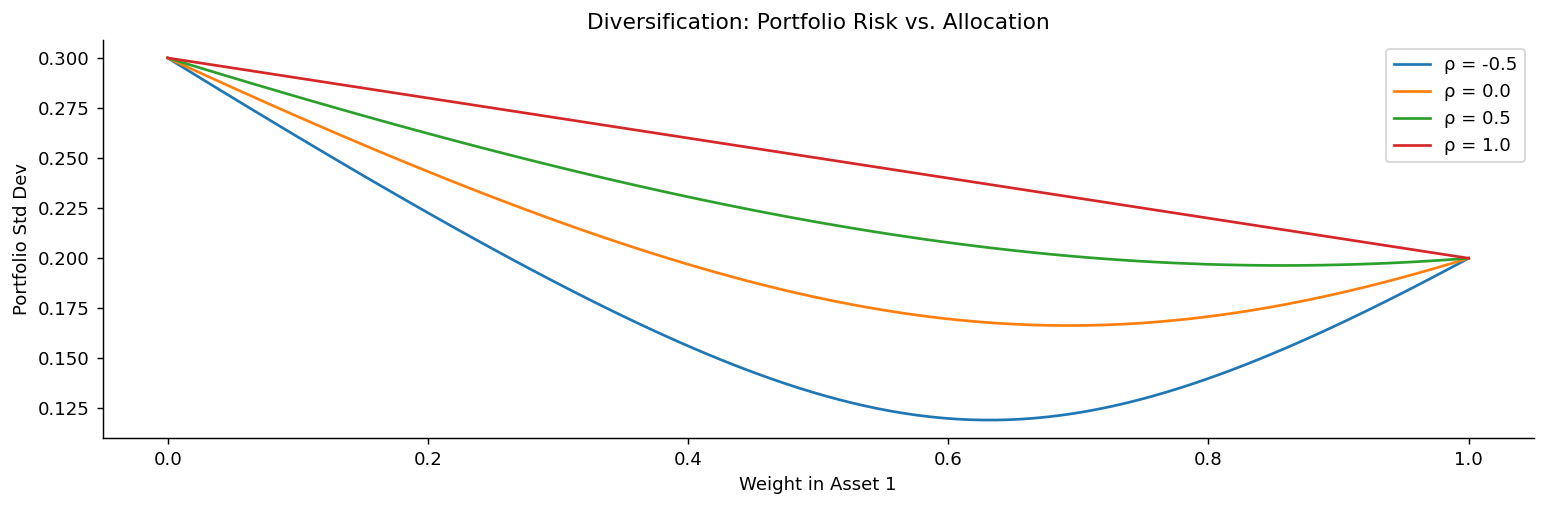

def portfolio_variance_demo():
"""Demonstrate diversification benefit."""
sigma1, sigma2 = 0.20, 0.30
correlations = [-0.5, 0.0, 0.5, 1.0]
fig, ax = plt.subplots(figsize=(12, 4))
weights = np.linspace(0, 1, 100)
for rho in correlations:
cov_12 = rho * sigma1 * sigma2
port_var = (weights**2 * sigma1**2
+ (1 - weights)**2 * sigma2**2
+ 2 * weights * (1 - weights) * cov_12)
port_sd = np.sqrt(port_var)
ax.plot(weights, port_sd, label=f'ρ = {rho}')
ax.set_xlabel('Weight in Asset 1')
ax.set_ylabel('Portfolio Std Dev')
ax.set_title('Diversification: Portfolio Risk vs. Allocation')
ax.legend()
ax.spines[['top', 'right']].set_visible(False)
plt.tight_layout()
plt.show()
portfolio_variance_demo()
Key Takeaways¶
- Variance measures dispersion: \(\text{Var}(X) = E[X^2] - (E[X])^2\).
- Covariance measures linear co-movement; correlation normalizes it to \([-1, 1]\).
- Uncorrelated (\(\rho = 0\)) does not imply independence.
- For independent variables, the variance of a sum equals the sum of variances; for dependent variables, covariance terms must be included.
- In finance, the covariance structure of asset returns determines the diversification benefit of portfolios.
