Moment Generating Functions

Overview

The moment generating function (MGF) is a powerful tool that encodes all the moments of a random variable into a single function. It provides an elegant way to compute expectations, prove limit theorems, and characterize distributions. If two random variables have the same MGF, they have the same distribution.

---

Definition

The moment generating function of a random variable \(X\) is defined as:

\[ M_X(t) = E\left[e^{tX}\right] = \begin{cases} \displaystyle\sum_x e^{tx} \cdot P(X = x), & \text{discrete} \\[10pt] \displaystyle\int_{-\infty}^{\infty} e^{tx} f(x) \, dx, & \text{continuous} \end{cases} \]

The MGF exists if \(M_X(t)\) is finite for all \(t\) in some open interval containing 0.

---

Why "Moment Generating"?

The Taylor expansion of \(e^{tX}\) reveals the connection to moments:

\[ M_X(t) = E\left[e^{tX}\right] = E\left[\sum_{k=0}^{\infty} \frac{(tX)^k}{k!}\right] = \sum_{k=0}^{\infty} \frac{t^k}{k!} E[X^k] \]

Taking derivatives and evaluating at \(t = 0\) extracts individual moments:

\[ M_X^{(n)}(0) = \frac{d^n}{dt^n} M_X(t) \bigg|_{t=0} = E[X^n] \]

Specifically:

\[ \begin{aligned} M_X'(0) &= E[X] \\ M_X''(0) &= E[X^2] \\ \text{Var}(X) &= M_X''(0) - \left[M_X'(0)\right]^2 \end{aligned} \]

---

Key Properties

Uniqueness

If two random variables \(X\) and \(Y\) have MGFs that exist and are equal in an open interval around 0:

\[ M_X(t) = M_Y(t) \quad \Longrightarrow \quad X \stackrel{d}{=} Y \]

This makes the MGF a tool for identifying distributions.

Linear Transformation

For \(Y = aX + b\):

\[ M_Y(t) = e^{bt} M_X(at) \]

Sum of Independent Variables

If \(X \perp\!\!\!\perp Y\):

\[ M_{X+Y}(t) = M_X(t) \cdot M_Y(t) \]

This extends to \(n\) independent variables: \(M_{S_n}(t) = \prod_{i=1}^n M_{X_i}(t)\).

---

Common MGFs

Distribution	\(M_X(t)\)	Parameters
Bernoulli\((p)\)	\(1 - p + pe^t\)	\(p \in (0,1)\)
Binomial\((n, p)\)	\((1 - p + pe^t)^n\)	\(n \in \mathbb{N},\ p \in (0,1)\)
Poisson\((\lambda)\)	\(\exp\left(\lambda(e^t - 1)\right)\)	\(\lambda > 0\)
Geometric\((p)\)	\(\dfrac{pe^t}{1 - (1-p)e^t}\), \(t < -\ln(1-p)\)	\(p \in (0,1)\)
Exponential\((\lambda)\)	\(\dfrac{\lambda}{\lambda - t}\), \(t < \lambda\)	\(\lambda > 0\)
Normal\((\mu, \sigma^2)\)	\(\exp\left(\mu t + \frac{\sigma^2 t^2}{2}\right)\)	\(\mu \in \mathbb{R},\ \sigma^2 > 0\)

---

Examples

Example: MGF of the Normal Distribution

For \(X \sim N(\mu, \sigma^2)\), the MGF is:

\[ M_X(t) = \exp\left(\mu t + \frac{\sigma^2 t^2}{2}\right) \]

Extracting moments:

\[ \begin{aligned} M_X'(t) &= \left(\mu + \sigma^2 t\right) M_X(t) \\ M_X'(0) &= \mu = E[X] \\[6pt] M_X''(t) &= \left(\sigma^2 + (\mu + \sigma^2 t)^2\right) M_X(t) \\ M_X''(0) &= \sigma^2 + \mu^2 = E[X^2] \\[6pt] \text{Var}(X) &= (\sigma^2 + \mu^2) - \mu^2 = \sigma^2 \end{aligned} \]

Example: Sum of Independent Normals

If \(X_1 \sim N(\mu_1, \sigma_1^2)\) and \(X_2 \sim N(\mu_2, \sigma_2^2)\) are independent:

\[ M_{X_1 + X_2}(t) = \exp\left((\mu_1 + \mu_2)t + \frac{(\sigma_1^2 + \sigma_2^2)t^2}{2}\right) \]

By uniqueness, \(X_1 + X_2 \sim N(\mu_1 + \mu_2, \sigma_1^2 + \sigma_2^2)\).

Example: Proving the CLT (Sketch)

For i.i.d. \(X_i\) with mean \(\mu\), variance \(\sigma^2\), let \(Z_n = \frac{\bar{X} - \mu}{\sigma/\sqrt{n}}\). The MGF of \(Z_n\) satisfies:

\[ M_{Z_n}(t) = \left[M_{\frac{X_i - \mu}{\sigma}}\left(\frac{t}{\sqrt{n}}\right)\right]^n \to e^{t^2/2} \quad \text{as } n \to \infty \]

The limit \(e^{t^2/2}\) is the MGF of \(N(0,1)\), proving convergence in distribution.

---

Python Exploration

import numpy as np
from scipy.misc import derivative

def mgf_normal(t, mu, sigma2):
    """MGF of Normal(mu, sigma2)."""
    return np.exp(mu * t + sigma2 * t**2 / 2)

# Extract moments via numerical differentiation
mu, sigma2 = 3.0, 4.0

E_X = derivative(lambda t: mgf_normal(t, mu, sigma2), 0, n=1, dx=1e-6)
E_X2 = derivative(lambda t: mgf_normal(t, mu, sigma2), 0, n=2, dx=1e-6)
Var_X = E_X2 - E_X**2

print(f"E[X] = {E_X:.4f} (theoretical: {mu})")
print(f"E[X²] = {E_X2:.4f} (theoretical: {sigma2 + mu**2})")
print(f"Var(X) = {Var_X:.4f} (theoretical: {sigma2})")

import numpy as np
import matplotlib.pyplot as plt

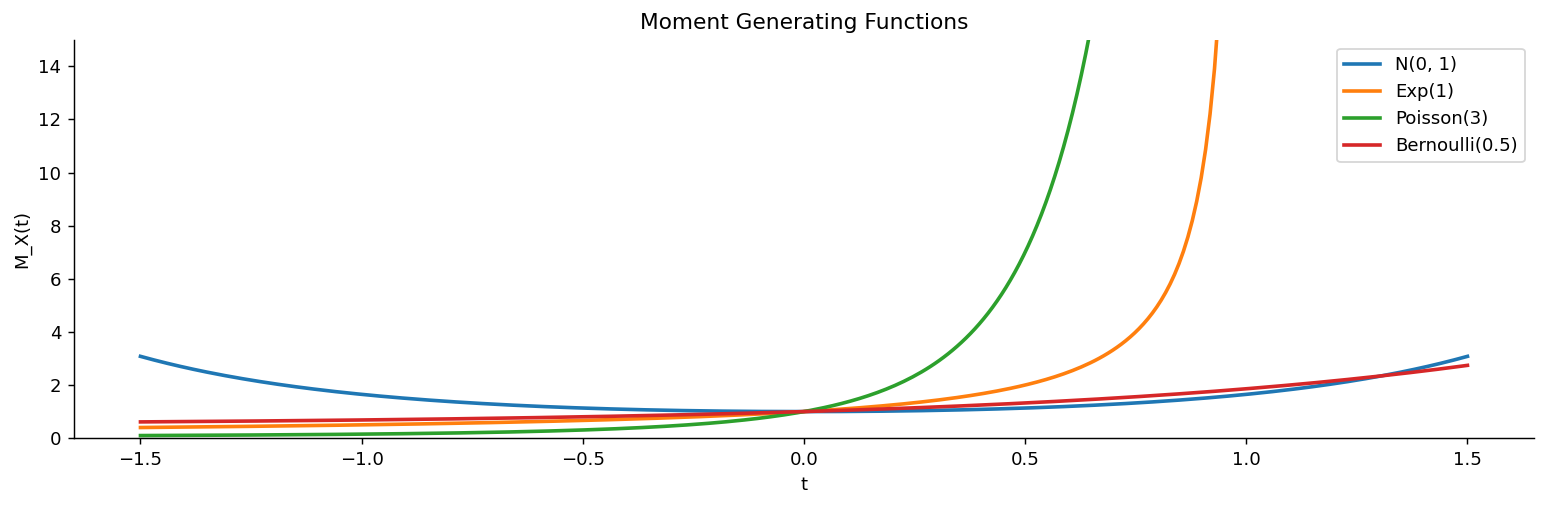

def plot_mgf_comparison():
    """Plot MGFs of several distributions."""
    t = np.linspace(-1.5, 1.5, 300)

    fig, ax = plt.subplots(figsize=(12, 4))

    # Normal(0, 1)
    ax.plot(t, np.exp(t**2 / 2), label='N(0, 1)', lw=2)

    # Exponential(1)
    t_exp = t[t < 1]
    ax.plot(t_exp, 1 / (1 - t_exp), label='Exp(1)', lw=2)

    # Poisson(3)
    lam = 3
    ax.plot(t, np.exp(lam * (np.exp(t) - 1)), label='Poisson(3)', lw=2)

    # Bernoulli(0.5)
    p = 0.5
    ax.plot(t, 1 - p + p * np.exp(t), label='Bernoulli(0.5)', lw=2)

    ax.set_xlabel('t')
    ax.set_ylabel('M_X(t)')
    ax.set_title('Moment Generating Functions')
    ax.set_ylim(0, 15)
    ax.legend()
    ax.spines[['top', 'right']].set_visible(False)
    plt.tight_layout()
    plt.show()

plot_mgf_comparison()

import numpy as np

def verify_sum_of_normals(n_simulations=100_000):
    """Verify that sum of independent normals is normal via simulation."""
    np.random.seed(42)
    mu1, sigma1 = 2, 3
    mu2, sigma2 = 5, 4

    X1 = np.random.normal(mu1, sigma1, n_simulations)
    X2 = np.random.normal(mu2, sigma2, n_simulations)
    S = X1 + X2

    print(f"E[X1+X2] = {S.mean():.4f} (theoretical: {mu1 + mu2})")
    print(f"Var(X1+X2) = {S.var():.4f} (theoretical: {sigma1**2 + sigma2**2})")

verify_sum_of_normals()

---

Key Takeaways

• The MGF \(M_X(t) = E[e^{tX}]\) encodes all moments: the \(n\)-th derivative at 0 gives \(E[X^n]\).
• If two distributions have the same MGF (in a neighborhood of 0), they are identical.
• For independent variables, the MGF of the sum is the product of individual MGFs.
• MGFs provide elegant proofs for results like the distribution of sums of normals and the Central Limit Theorem.
