IQR and Robust Measures¶

Overview¶

The range, interquartile range (IQR), and percentiles are measures of spread that complement variance and standard deviation. The IQR is particularly valued as a robust measure—one that is resistant to the influence of outliers.

1. Range¶

Definition¶

The range is the simplest measure of dispersion: the difference between the maximum and minimum values.

\[ \text{Range} = \text{Max} - \text{Min} \]

Example¶

For the dataset 70, 85, 90, 95, 100: Range = \(100 - 70 = 30\).

Computing Range¶

import pandas as pd

url = 'https://raw.githubusercontent.com/gedeck/practical-statistics-for-data-scientists/master/data/loans_income.csv'
loans_data = pd.read_csv(url)

data_range = loans_data['x'].max() - loans_data['x'].min()
print(f"{data_range = }")

Limitations¶

The range is highly sensitive to outliers because it depends entirely on the two most extreme values. It provides no information about how data is distributed between these extremes.

2. Interquartile Range (IQR)¶

Definition¶

The IQR measures the spread of the middle 50% of the data, effectively reducing the impact of outliers. It is the difference between the third quartile (\(Q_3\), the 75th percentile) and the first quartile (\(Q_1\), the 25th percentile).

\[ \text{IQR} = Q_3 - Q_1 \]

Example¶

For the dataset 1, 3, 4, 6, 7, 9, 11: \(Q_1 = 3\), \(Q_3 = 9\), so \(\text{IQR} = 9 - 3 = 6\).

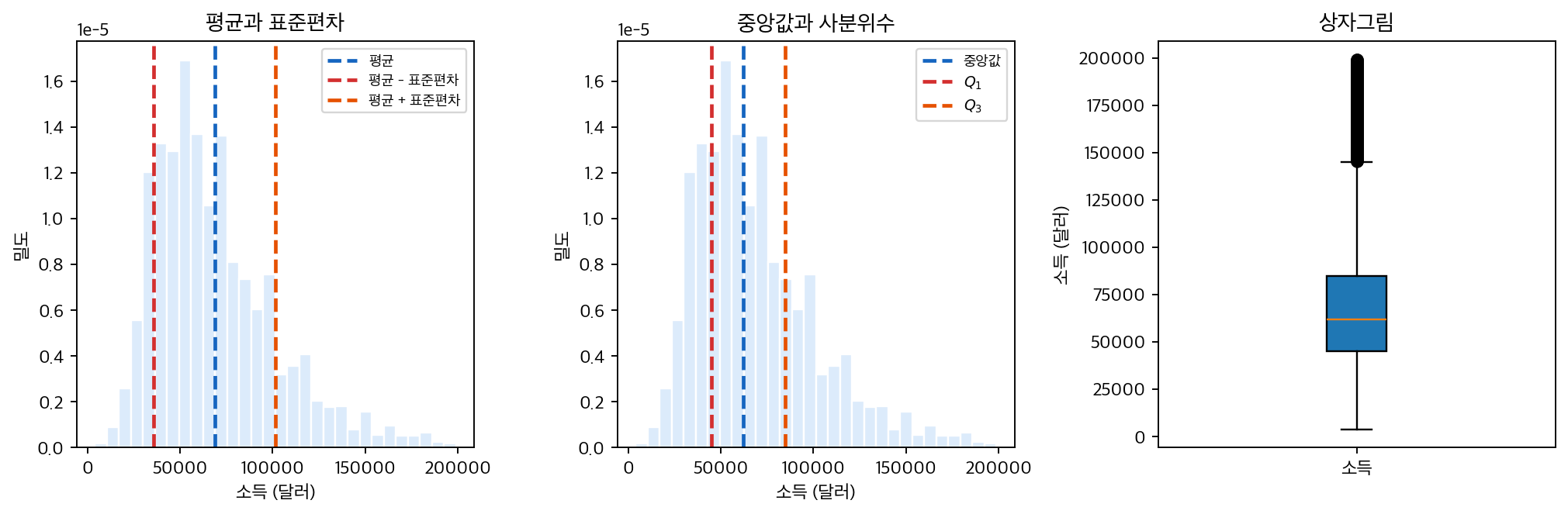

IQR and Standard Deviation: Income Data¶

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from scipy import stats

url = 'https://raw.githubusercontent.com/gedeck/practical-statistics-for-data-scientists/master/data/loans_income.csv'
df = pd.read_csv(url)

mean_income = df['x'].mean()
median_income = df['x'].median()
std_dev = df['x'].std()
q1 = df['x'].quantile(0.25)
q3 = df['x'].quantile(0.75)
iqr = stats.iqr(df['x'])

fig, (ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(12, 4))

# Mean ± Std Dev
ax1.hist(df['x'], bins=30, density=True, alpha=0.3, color='skyblue')
ax1.axvline(mean_income, color='blue', linestyle='--', label='mean')
ax1.axvline(mean_income - std_dev, color='red', linestyle='--', label='mean - std')
ax1.axvline(mean_income + std_dev, color='red', linestyle='--', label='mean + std')
ax1.legend()
ax1.set_title("Mean and Std Dev")

# Median and Quartiles
ax2.hist(df['x'], bins=30, density=True, alpha=0.3, color='skyblue')
ax2.axvline(median_income, color='blue', linestyle='--', label='median')
ax2.axvline(q1, color='red', linestyle='--', label='Q1')
ax2.axvline(q3, color='red', linestyle='--', label='Q3')
ax2.legend()
ax2.set_title("Median and Quartiles")

# Boxplot
ax3.boxplot(df['x'], vert=True, patch_artist=True)
ax3.set_title("Boxplot")

plt.tight_layout()
plt.show()

Computing Quartiles¶

import pandas as pd

url = 'https://raw.githubusercontent.com/gedeck/practical-statistics-for-data-scientists/master/data/loans_income.csv'
df = pd.read_csv(url)

q1 = df['x'].quantile(0.25)
q2 = df['x'].median()
q3 = df['x'].quantile(0.75)

print(f"{q1 = }")
print(f"{q2 = }")  # Median
print(f"{q3 = }")

3. Percentiles¶

The \(p\)-th percentile is the value below which \(p\%\) of the data falls.

Percentiles and Deciles¶

\[ \begin{array}{llll} D_1 = P_{10}, & D_2 = P_{20}, & \ldots, & D_9 = P_{90} \end{array} \]

Percentiles and Quartiles¶

\[ Q_1 = P_{25}, \quad Q_2 = P_{50}, \quad Q_3 = P_{75} \]

Percentiles and Median¶

\[ \text{Median} = Q_2 = D_5 = P_{50} \]

4. Comparing Measures of Spread¶

Measure	Robustness	Information	Best For
Range	Not robust (extreme sensitivity)	Only two values	Quick overview
IQR	Robust (ignores outer 50%)	Middle 50% spread	Skewed data, outlier-prone data
Std Dev	Not robust (sensitive to outliers)	All data points	Symmetric, normal-like data

Real-Life Examples¶

Income Variability: The range shows the gap between richest and poorest. The IQR reveals how middle-income earners differ. The standard deviation quantifies overall income inequality.

Student Test Scores: Low standard deviation means most students scored similarly. A large IQR might indicate a wide spread in the middle tier of performers.

Stock Market Volatility: Variance and standard deviation are standard risk measures in finance. High standard deviation indicates greater price fluctuation and higher investment risk.

5. Practical Considerations¶

Sample vs. Population: When computing variance and standard deviation, use \(n-1\) (Bessel's correction) for samples to obtain unbiased estimates.

Data Distribution: For normal distributions, standard deviation has a clean interpretation (empirical rule). For skewed distributions, the IQR paired with the median provides a more meaningful summary.

Complementary Use: In practice, reporting both mean ± standard deviation and median with IQR gives readers a complete picture, especially when the distribution shape is unknown or potentially skewed.

Summary¶

The IQR and related percentile-based measures provide robust alternatives to variance and standard deviation for describing data spread. By focusing on the middle 50% of the data, the IQR is insensitive to outliers, making it the preferred measure of spread for skewed distributions and datasets with extreme values.
