ECDF and Quantiles¶
Overview¶
The empirical cumulative distribution function (ECDF) and quantiles provide complementary views of a distribution that avoid the bin-width sensitivity of histograms. The ECDF maps every data value to the proportion of observations at or below that value, producing a step function that converges to the true CDF as the sample size grows. Quantiles invert this relationship, answering: "At what value does a given fraction of the data fall below?"
The Empirical CDF¶
For a sample \(x_1, x_2, \ldots, x_n\), the ECDF is defined as
where \(\mathbf{1}(\cdot)\) is the indicator function. Key properties:
- \(\hat{F}\) is a non-decreasing step function ranging from 0 to 1.
- Each jump has height \(1/n\) (or multiples for tied values).
- By the Glivenko–Cantelli theorem, \(\hat{F}\) converges uniformly to the true CDF \(F\) almost surely.

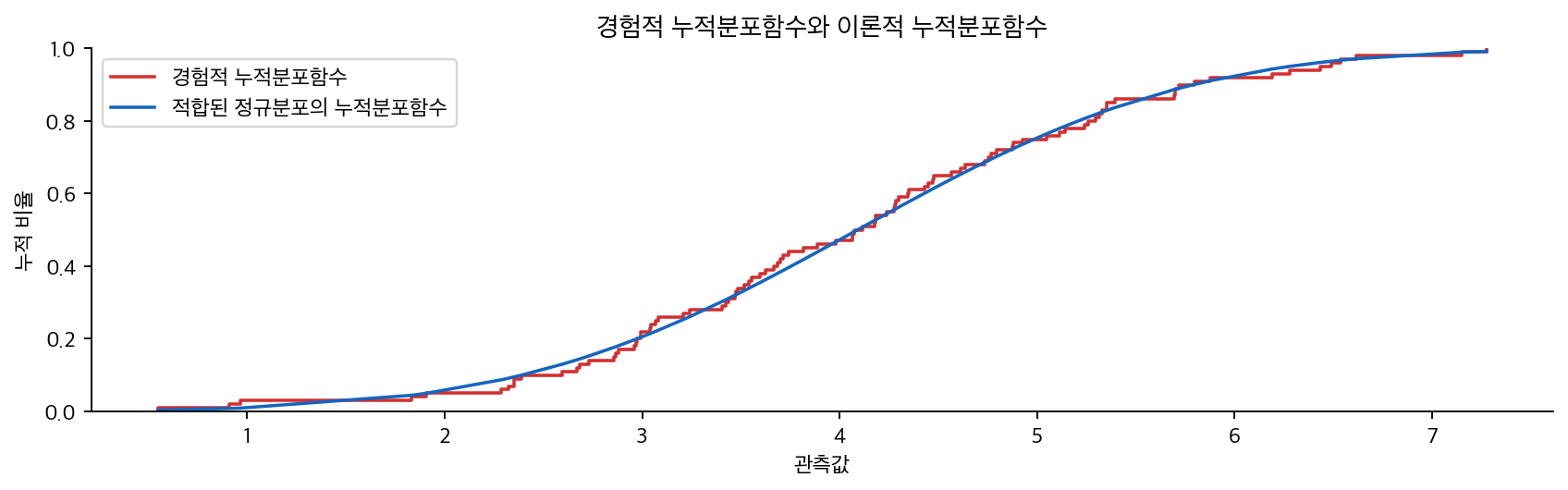

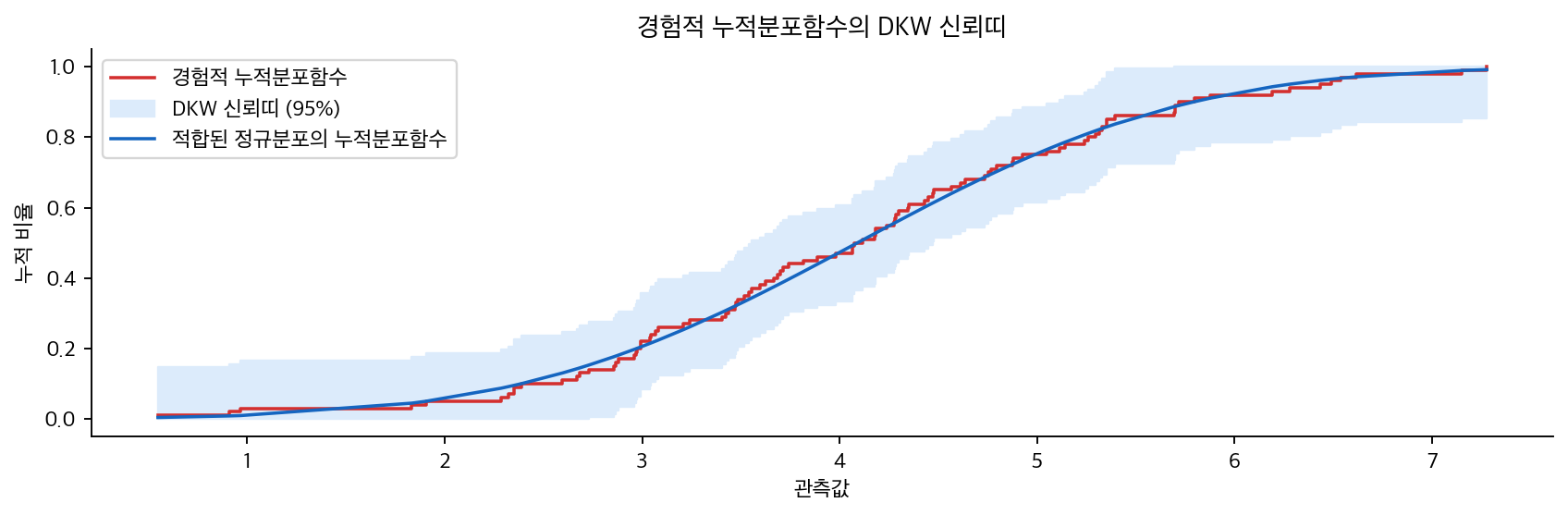

ECDF vs. Theoretical CDF¶
Comparing the ECDF to a parametric CDF is a powerful diagnostic for assessing distributional assumptions.
import matplotlib.pyplot as plt
import numpy as np
import scipy.stats as stats
np.random.seed(1)
x = 4 + np.random.normal(0, 1.5, 100)
loc = x.mean()
scale = x.std()
x.sort()
cdf = stats.norm(loc=loc, scale=scale).cdf(x)
fig, ax = plt.subplots(figsize=(12, 3))
ax.ecdf(x, ls="-", c="r", label="Empirical CDF")
ax.plot(x, cdf, "-b", label="Theoretical CDF")
ax.legend()
plt.show()
When the empirical and theoretical curves closely overlap, the parametric model is a good fit. Systematic departures indicate skewness, heavy tails, or multimodality.

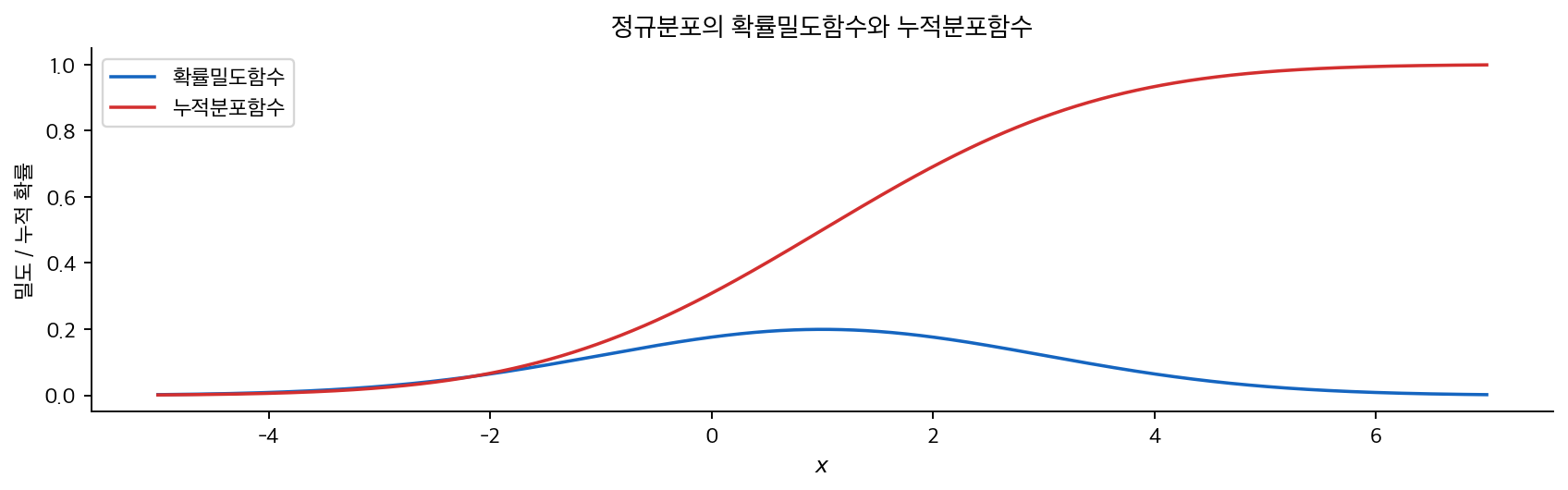

CDF and PDF Side by Side¶
import matplotlib.pyplot as plt
import numpy as np
import scipy.stats as stats
loc = 1
scale = 2
normal = stats.norm(loc=loc, scale=scale)
x = np.linspace(loc - 3 * scale, loc + 3 * scale, 1_000)
pdf = normal.pdf(x)
cdf = normal.cdf(x)
fig, ax = plt.subplots(figsize=(12, 3))
ax.plot(x, pdf, "-b", label="PDF")
ax.plot(x, cdf, "-r", label="CDF")
ax.legend()
plt.show()
The PDF shows where density is concentrated; the CDF shows cumulative probability. Together they give a complete picture of the distribution.
Quantiles, Percentiles, and Quartiles¶
Percentiles¶
The \(p\)-th percentile \(P_p\) is the value below which \(p\%\) of the data falls. Reading a cumulative relative frequency graph at height \(p/100\) on the y-axis and projecting horizontally to the curve gives the percentile on the x-axis.
Quartiles¶
The three quartiles divide the data into four equal parts:
Deciles¶
Relationship to Median¶
Computing Quantiles in Python¶
Three common approaches yield identical results:
import pandas as pd
import numpy as np
from scipy import stats
data = {'x': [4, 4, 6, 7, 10, 11, 12, 14, 15]}
df = pd.DataFrame(data)
# pandas: q in [0, 1]
print(f"{df.x.quantile(0.75) = }")
# numpy: q in [0, 100]
print(f"{np.percentile(df.x.values, 75) = }")
# scipy: q in [0, 100]
print(f"{stats.scoreatpercentile(df.x.values, 75) = }")

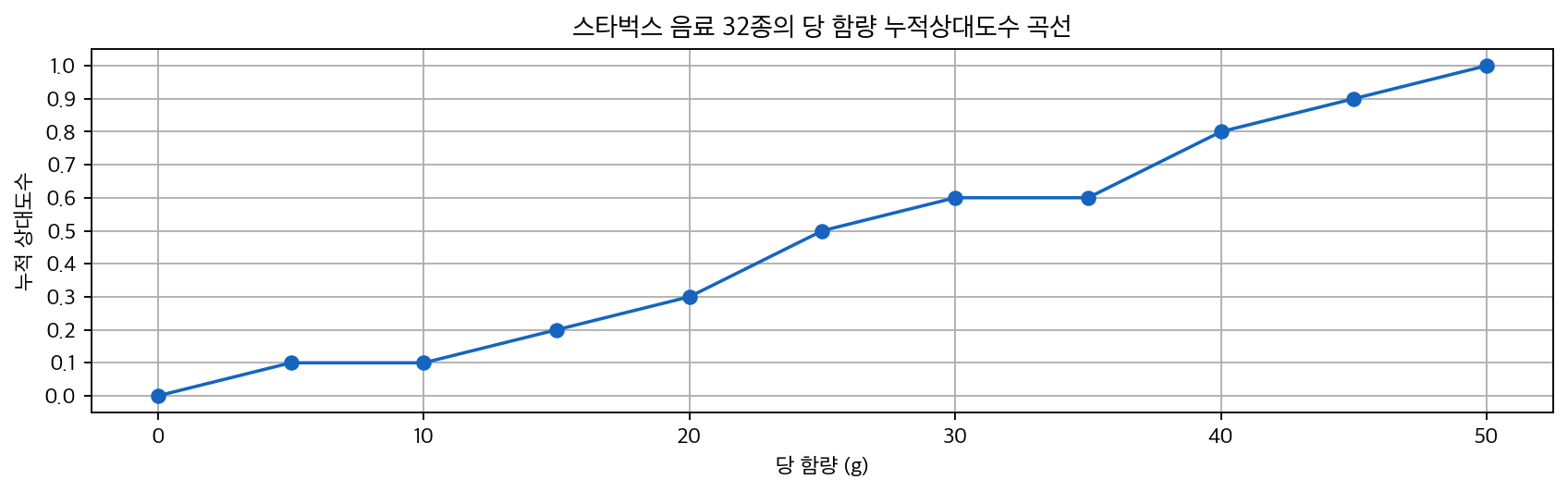

Example: Sugar Content in Starbucks Drinks¶
Nutritionists measured sugar content (in grams) for 32 Starbucks drinks. Using the cumulative relative frequency graph:
import numpy as np
import matplotlib.pyplot as plt
x = np.arange(0, 55, 5)
y = [0, 0.1, 0.1, 0.2, 0.3, 0.5, 0.6, 0.6, 0.8, 0.9, 1.0]
fig, ax = plt.subplots(figsize=(12, 3))
ax.plot(x, y, '-o')
ax.set_xlabel("Sugar Content (g)")
ax.set_ylabel("Cumulative Relative Frequency")
ax.set_yticks(np.arange(0, 1.1, 0.1))
ax.grid()
plt.show()
Questions and answers:
- A coffee with 15 grams of sugar is at approximately the 20th percentile.
- The median (50th percentile) is approximately 25 grams.
- \(Q_1 \approx 17.5\) g, \(Q_3 \approx 38.5\) g, so \(\text{IQR} = Q_3 - Q_1 \approx 21\) g.

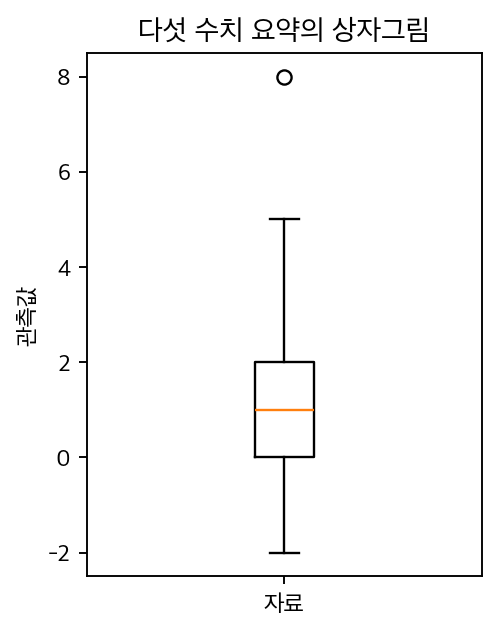

The Five-Number Summary¶
The five-number summary captures the key quantiles of a distribution:
import numpy as np
import matplotlib.pyplot as plt
data = np.array([1, 2, 0, 0, 0, 1, 3, 1, 2, 1, 2, 4, 5, -1, -2, 0, 8])
quantiles = {"Min": 0, "Q1": 0.25, "Median": 0.5, "Q3": 0.75, "Max": 1}
for label, q in quantiles.items():
print(f"{label:6} : {np.quantile(data, q)}")
fig, ax = plt.subplots(figsize=(2, 3))
ax.boxplot(data)
ax.set_title("Boxplot of Data")
plt.show()
Q-Q Plots: Quantile-Quantile Comparison¶
A Q-Q plot compares the quantiles of observed data against the quantiles of a theoretical distribution. If the data follows the reference distribution, the points lie along the diagonal reference line.

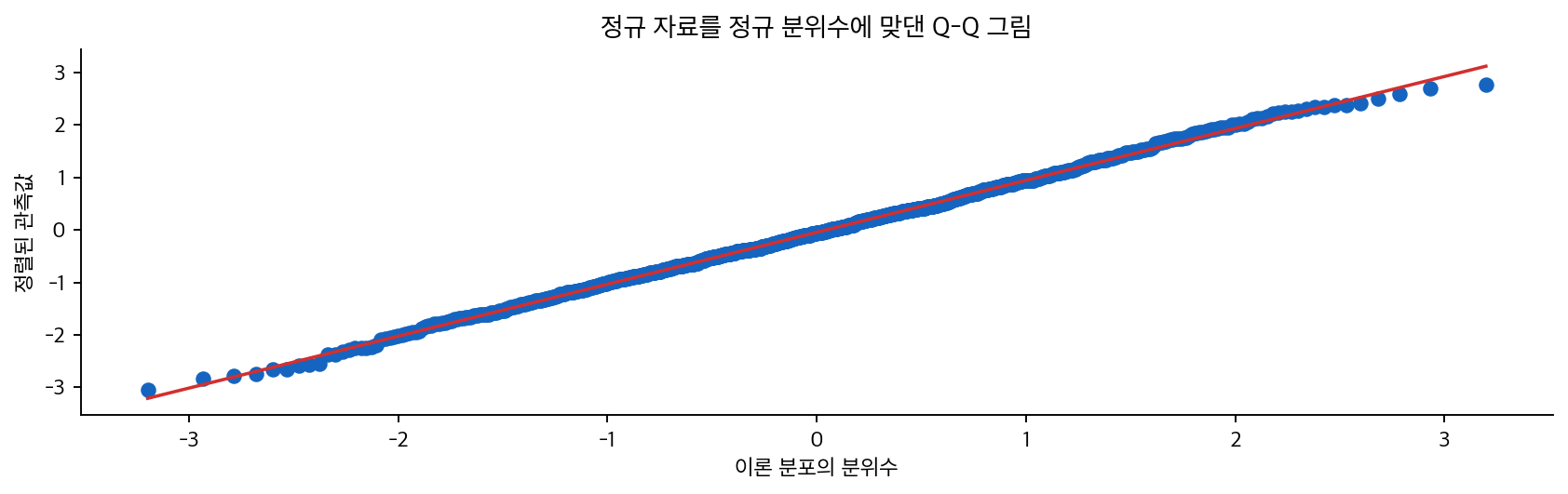

Q-Q Plot Against Normal Distribution¶
import numpy as np
import matplotlib.pyplot as plt
import scipy.stats as stats
def plot_qq(data, dist="norm", sparams=(), figsize=(12, 3)):
fig, ax = plt.subplots(figsize=figsize)
stats.probplot(data, dist=dist, sparams=sparams, plot=ax)
ax.spines[["top", "right"]].set_visible(False)
ax.set_title('Q-Q Plot')
ax.set_xlabel('Theoretical Quantiles')
ax.set_ylabel('Ordered Values')
plt.show()
np.random.seed(0)
sample_data = np.random.normal(loc=0, scale=1, size=1000)
plot_qq(sample_data, dist="norm")

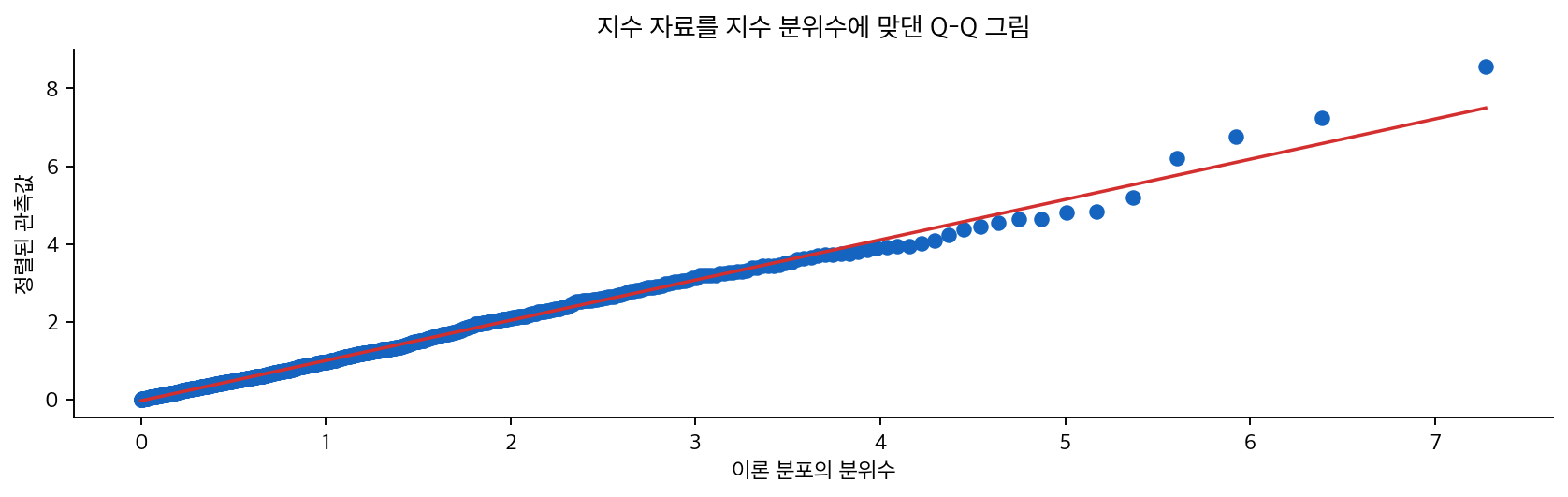

Q-Q Plot Against Exponential Distribution¶
np.random.seed(0)
sample_data = np.random.exponential(scale=1, size=1000)
plot_qq(sample_data, dist="expon")

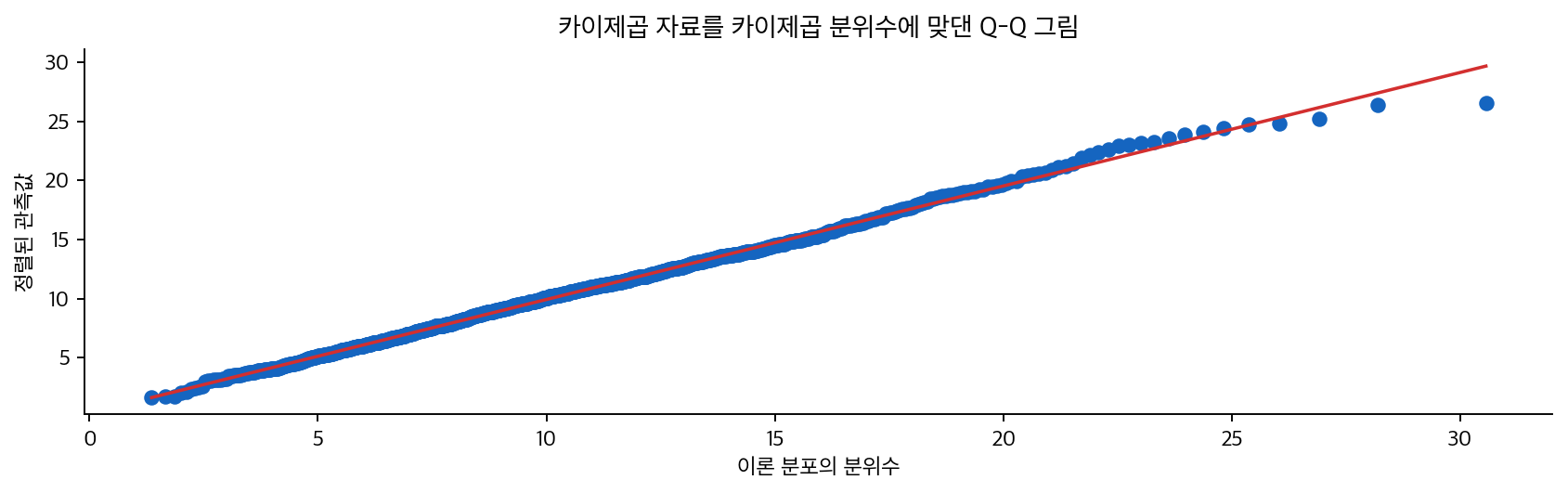

Q-Q Plot Against Chi-Square Distribution¶
np.random.seed(0)
sample_data = np.random.chisquare(df=10, size=1000)
plot_qq(sample_data, dist="chi2", sparams=(10,))

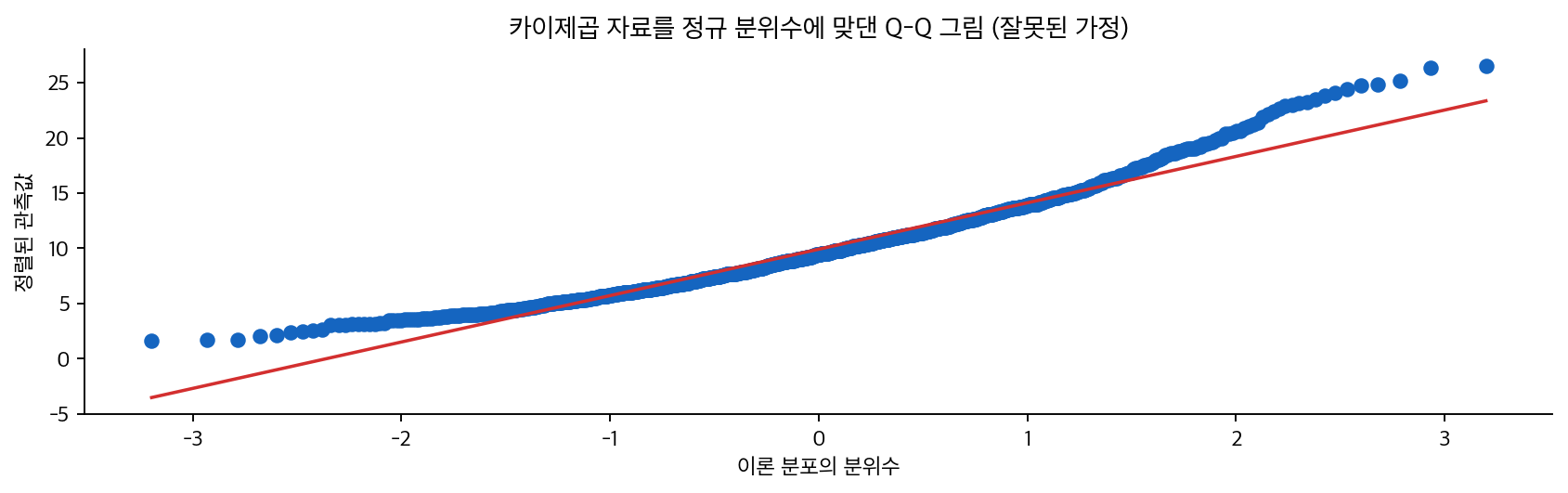

Diagnostic Use: Chi-Square Data Against Normal Q-Q Plot¶
When chi-square data is plotted against a normal reference, the systematic curvature reveals right skewness—confirming that the normal model is inappropriate.
np.random.seed(0)
sample_data = np.random.chisquare(df=10, size=1000)
plot_qq(sample_data, dist="norm") # Systematic departure from the line
Summary¶
The ECDF and quantiles provide bin-free, exact representations of empirical distributions. The ECDF is ideal for comparing distributions or assessing goodness of fit, while quantiles and the five-number summary offer concise numerical summaries. Q-Q plots extend these ideas into a powerful visual diagnostic for checking distributional assumptions.
