From Characteristic Function to Density¶
Many financial models---including the Heston stochastic volatility model, variance gamma, and CGMY processes---provide the characteristic function of the log-price in closed form, but the density itself has no elementary expression. To price options, validate model behavior, or visualize the risk-neutral distribution, we need to invert the characteristic function back to the density. This section develops three approaches to this inversion: the classical Fourier inversion integral, the Gil--Pelaez formula for distribution functions, and the COS-method-based cosine series reconstruction. Each approach has distinct advantages depending on whether the goal is density recovery, distribution function computation, or option pricing.
Prerequisites
- Fourier Series of Probability Densities (CF as Fourier transform of density)
- Cosine Expansion on \([0, \pi]\) (cosine series)
- Complex analysis: contour integration (for Gil--Pelaez)
Learning Objectives
By the end of this section, you will be able to:
- State and apply the Fourier inversion theorem to recover a density from its CF
- Derive the Gil--Pelaez formula for the cumulative distribution function
- Implement numerical Fourier inversion using truncation and quadrature
- Reconstruct densities using the COS method's cosine series
- Identify the sources of numerical error in each approach
Fourier Inversion Integral¶
The most direct route from characteristic function to density is the inverse Fourier transform.
Theorem: Fourier Inversion
Let \(X\) be a random variable with characteristic function \(\phi(u) = \mathbb{E}[e^{iuX}]\). If \(\phi \in L^1(\mathbb{R})\), then \(X\) has a bounded continuous density
Since \(\phi(-u) = \overline{\phi(u)}\) for real-valued \(X\), the integral simplifies to a real form:
This halving of the integration range exploits the conjugate symmetry of \(\phi\) and is the form used in numerical implementations.
Numerical implementation. Truncate the integral to \([0, U]\) and apply quadrature:
where \(\{u_j, w_j\}\) are quadrature nodes and weights on \([0, U]\). The trapezoidal rule performs well because the integrand is smooth and decays for models with well-behaved characteristic functions.
Truncation Upper Limit \(U\)
The choice of \(U\) matters: too small and the density is under-resolved (low frequency content only); too large and numerical cancellation degrades accuracy (the integrand oscillates rapidly for large \(u\) when \(x\) is far from the mean). A practical rule is to increase \(U\) until the density reconstruction stabilizes, or to use the decay rate of \(|\phi(u)|\) as a guide.
Gil--Pelaez Inversion Formula¶
For option pricing, the cumulative distribution function (CDF) \(F(x) = P(X \leq x)\) is often more useful than the density. The Gil--Pelaez (1951) formula provides the CDF directly from the characteristic function, avoiding the intermediate step of density computation.
Theorem: Gil--Pelaez Formula
Let \(X\) have characteristic function \(\phi\). At every continuity point \(x\) of \(F\):
Proof. Start from the inversion formula for the CDF. For \(\varepsilon > 0\):
This representation comes from writing \(F(x) = \int_{-\infty}^x f(y)\,dy\) and substituting the Fourier inversion of \(f\), then exchanging the order of integration (justified when \(\phi \in L^1\) or via regularization). The inner integral evaluates to
in the distributional sense. Substituting and simplifying:
Since \(\phi(0) = 1\) and the integrand satisfies \(\frac{e^{-iux}\phi(u)}{iu}\) is odd in its real part and even in its imaginary part (using \(\phi(-u) = \overline{\phi(u)}\)), the integral reduces to the imaginary part over \([0, \infty)\):
\(\square\)
Numerical Advantage of Gil--Pelaez
The integrand decays as \(O(|\phi(u)|/u)\), which is faster than the density inversion integrand \(O(|\phi(u)|)\). This improved decay makes the Gil--Pelaez integral easier to evaluate numerically, often requiring fewer quadrature points.
Density Recovery via the COS Method¶
The COS method provides an alternative approach to density reconstruction that avoids numerical integration entirely. Instead of evaluating a Fourier integral, the density is expanded as a truncated cosine series with coefficients computed from the characteristic function.
Definition: COS Density Reconstruction
The COS approximation to the density \(f\) on \([a, b]\) using \(N\) terms is
where the cosine coefficients are approximated by
The computational procedure is:
- Choose truncation interval \([a, b]\) using cumulants of \(X\)
- Evaluate \(\phi(k\pi/(b-a))\) for \(k = 0, 1, \ldots, N-1\)
- Compute \(A_k\) via the formula above
- Sum the cosine series at desired points \(x\)
This requires only \(N\) evaluations of the characteristic function, with no quadrature or integration. For smooth densities, \(N = 64\) to \(128\) suffices for high accuracy.
Comparison of Inversion Approaches¶
Each method has distinct strengths:
| Method | Output | Complexity | Accuracy | Best use case |
|---|---|---|---|---|
| Fourier inversion integral | Density \(f(x)\) | \(O(M)\) per point | Depends on \(U\), quadrature | Single-point density evaluation |
| Gil--Pelaez | CDF \(F(x)\) | \(O(M)\) per point | Better decay, easier numerics | Distribution function, tail probabilities |
| COS reconstruction | Density \(f(x)\) on grid | \(O(N)\) setup + \(O(N)\) per point | Exponential for smooth \(f\) | Density on grid, visualization |
The COS method dominates for grid-based density recovery because the coefficient computation is done once and then reused for all evaluation points.
Example: Normal Density Recovery¶
To validate the inversion approaches, consider the standard normal distribution.
Recovering \(N(0,1)\) Density
For \(X \sim N(0, 1)\), the characteristic function is \(\phi(u) = e^{-u^2/2}\).
Fourier inversion:
The integral evaluates in closed form (completing the square in the exponent), recovering the Gaussian density exactly.
COS reconstruction on \([-10, 10]\) with \(N = 64\):
The cosine coefficients are \(A_k = \frac{1}{10}\,\text{Re}[e^{-k^2\pi^2/800}\cdot e^{ik\pi/2}]\). The reconstructed density matches the true density to better than \(10^{-10}\) at all points in \([-8, 8]\), with larger errors only near the boundaries where the density is already negligible (\(f(\pm 10) \approx 10^{-23}\)).
Gil--Pelaez:
This recovers the standard normal CDF. The integrand \(e^{-u^2/2}\sin(ux)/u\) is bounded and rapidly decaying, so the trapezoidal rule with \(M = 100\) points on \([0, 20]\) achieves \(10^{-12}\) accuracy.

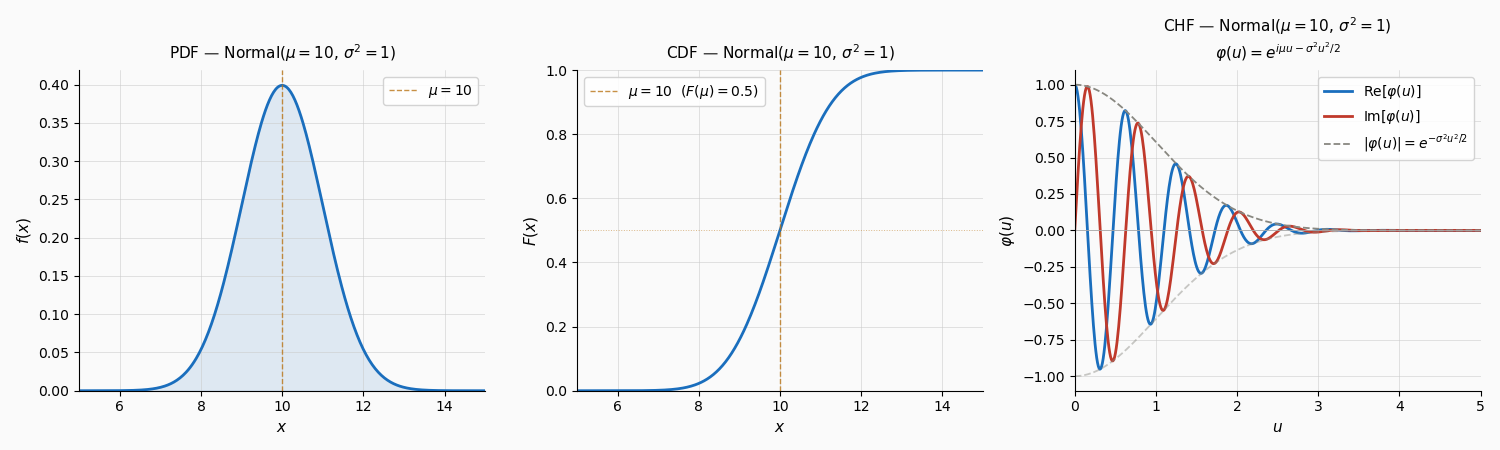

Python: PDF, CDF, and Characteristic Function of Normal(\(\mu\), \(\sigma^2\))¶
The following code plots all three objects simultaneously for Normal(\(\mu = 10\), \(\sigma^2 = 1\)), illustrating the three panels: PDF \(f(x)\), CDF \(F(x)\), and the characteristic function \(\varphi(u)\) showing its real part, imaginary part, and Gaussian modulus envelope \(|\varphi(u)| = e^{-\sigma^2 u^2/2}\).
```python """ Normal Distribution: PDF, CDF, and Characteristic Function =========================================================== Plots the probability density function, cumulative distribution function, and characteristic function of a Normal(mu, sigma^2) distribution.
The characteristic function of X ~ Normal(mu, sigma^2) is:
phi(u) = E[e^{iuX}] = exp(i * mu * u - sigma^2 * u^2 / 2)
which is a complex-valued function of the real argument u. We plot its real part Re[phi(u)] and imaginary part Im[phi(u)] as a 2-D panel, alongside the Gaussian modulus envelope exp(-sigma^2 u^2 / 2). The envelope decays regardless of mu, reflecting the Riemann-Lebesgue lemma. """
import numpy as np import matplotlib.pyplot as plt import scipy.stats as st
── Parameters ────────────────────────────────────────────────────────────────¶
mu = 10.0 # mean sigma = 1.0 # standard deviation
── Functions ─────────────────────────────────────────────────────────────────¶
i = complex(0, 1)
def chf(u: np.ndarray) -> np.ndarray: """Characteristic function of Normal(mu, sigma^2).""" return np.exp(i * mu * u - sigma2 * u2 / 2.0)
def pdf(x: np.ndarray) -> np.ndarray: """Probability density function of Normal(mu, sigma^2).""" return st.norm.pdf(x, mu, sigma)
def cdf(x: np.ndarray) -> np.ndarray: """Cumulative distribution function of Normal(mu, sigma^2).""" return st.norm.cdf(x, mu, sigma)
── Grids ─────────────────────────────────────────────────────────────────────¶
x = np.linspace(mu - 5 * sigma, mu + 5 * sigma, 400) # support for PDF / CDF u = np.linspace(0, 5, 500) # frequency axis for CHF
── Evaluate ──────────────────────────────────────────────────────────────────¶
chf_vals = chf(u) re_vals = np.real(chf_vals) im_vals = np.imag(chf_vals) mod_vals = np.abs(chf_vals) # Gaussian envelope exp(-sigma^2 u^2 / 2)
── Colors ────────────────────────────────────────────────────────────────────¶
FACECOLOR = '#FAFAFA' COLOR_MAIN = '#1A6EBD' COLOR_RE = '#1A6EBD' COLOR_IM = '#C0392B' COLOR_MOD = '#888780' COLOR_MU = '#BA7517'
def _style(ax, xlabel: str, ylabel: str, title: str) -> None: """Apply shared axis style.""" ax.set_facecolor(FACECOLOR) ax.set_xlabel(xlabel, fontsize=11) ax.set_ylabel(ylabel, fontsize=11) ax.set_title(title, fontsize=11, pad=8) ax.spines[['top', 'right']].set_visible(False) ax.grid(True, linewidth=0.4, color='#CCCCCC')
── Single figure, three axes ─────────────────────────────────────────────────¶
fig, (ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(15, 4.5)) fig.patch.set_facecolor(FACECOLOR)
── Axis 1: PDF ───────────────────────────────────────────────────────────────¶
ax1.plot(x, pdf(x), color=COLOR_MAIN, linewidth=2.0) ax1.fill_between(x, pdf(x), alpha=0.12, color=COLOR_MAIN) ax1.axvline(mu, color=COLOR_MU, linewidth=1.0, linestyle='--', alpha=0.8, label=rf'\(\mu = {mu:.0f}\)') _style(ax1, xlabel=r'\(x\)', ylabel=r'\(f(x)\)', title=rf'PDF — Normal\((\mu={mu:.0f},\,\sigma^2={sigma**2:.0f})\)') ax1.legend(fontsize=10, framealpha=0.85) ax1.set_xlim(x[0], x[-1]) ax1.set_ylim(bottom=0)
── Axis 2: CDF ───────────────────────────────────────────────────────────────¶
ax2.plot(x, cdf(x), color=COLOR_MAIN, linewidth=2.0) ax2.axvline(mu, color=COLOR_MU, linewidth=1.0, linestyle='--', alpha=0.8, label=rf'\(\mu = {mu:.0f}\) (\(F(\mu)=0.5\))') ax2.axhline(0.5, color=COLOR_MU, linewidth=0.7, linestyle=':', alpha=0.5) _style(ax2, xlabel=r'\(x\)', ylabel=r'\(F(x)\)', title=rf'CDF — Normal\((\mu={mu:.0f},\,\sigma^2={sigma**2:.0f})\)') ax2.legend(fontsize=10, framealpha=0.85) ax2.set_xlim(x[0], x[-1]) ax2.set_ylim(0, 1)
── Axis 3: CHF (Re, Im, modulus) ─────────────────────────────────────────────¶
ax3.plot(u, re_vals, color=COLOR_RE, linewidth=2.0, label=r'\(\mathrm{Re}[\varphi(u)]\)') ax3.plot(u, im_vals, color=COLOR_IM, linewidth=2.0, label=r'\(\mathrm{Im}[\varphi(u)]\)') ax3.plot(u, mod_vals, color=COLOR_MOD, linewidth=1.3, linestyle='--', label=r'\(|\varphi(u)| = e^{-\sigma^2 u^2/2}\)') ax3.plot(u, -mod_vals, color=COLOR_MOD, linewidth=1.3, linestyle='--', alpha=0.45) ax3.axhline(0, color='#AAAAAA', linewidth=0.6) _style(ax3, xlabel=r'\(u\)', ylabel=r'\(\varphi(u)\)', title=(rf'CHF — Normal\((\mu={mu:.0f},\,\sigma^2={sigma**2:.0f})\)' '\n' r'\(\varphi(u)=e^{i\mu u - \sigma^2 u^2/2}\)')) ax3.legend(fontsize=10, framealpha=0.85) ax3.set_xlim(u[0], u[-1])
── Save ──────────────────────────────────────────────────────────────────────¶
plt.tight_layout() plt.savefig('pdf_cdf_and_characteristic_function.svg', bbox_inches='tight') plt.show() ```
Example: Heston Model Density¶
The Heston model provides a characteristic function in closed form but no elementary density, making it the prototypical use case for Fourier inversion.
Heston Density Inversion
Under the Heston model, the log-price \(X_T = \ln(S_T/S_0)\) has characteristic function
where \(C\) and \(D\) satisfy Riccati ODEs depending on the parameters \((\kappa, \theta, \sigma_v, \rho, v_0)\) and \(x_0 = \ln S_0\). The explicit forms are:
with \(d = \sqrt{(\rho\sigma_v iu - \kappa)^2 + \sigma_v^2(iu + u^2)}\) and \(g = (\kappa - \rho\sigma_v iu - d)/(\kappa - \rho\sigma_v iu + d)\).
Using the COS method with \(N = 128\) and a cumulant-based truncation interval, the density is recovered accurately for typical parameter sets. The density exhibits negative skew and excess kurtosis compared to the log-normal, reflecting the stochastic volatility and leverage effect.
Numerical Considerations¶
Several practical issues arise in Fourier inversion:
Oscillatory integrands. For large \(|x|\), the integrands in both the Fourier inversion and Gil--Pelaez formulas oscillate rapidly, requiring more quadrature points or adaptive methods.
Branch cuts in the CF. The Heston model's characteristic function involves complex square roots that require careful branch selection. The "rotation count" algorithm of Kahl and Jackel (2005) ensures continuity of \(\phi(u)\) along the real \(u\)-axis.
Aliasing in the COS method. The cosine series assumes the density is supported on \([a, b]\). If significant probability mass lies outside this interval, the density reconstruction suffers from aliasing (the tail mass is "folded back" into \([a, b]\)). The cumulant-based truncation rule prevents this in practice.
Negative Density Values
The COS reconstruction is a truncated series of oscillating functions and is not guaranteed to produce non-negative values everywhere. For densities with sharp features or when \(N\) is too small, the reconstruction may exhibit negative values, particularly near boundaries. This is a truncation artifact, not a model error.
Summary¶
Recovering a density from its characteristic function is the gateway to Fourier-based option pricing:
| Method | Formula | Key advantage |
|---|---|---|
| Fourier inversion | \(f(x) = \frac{1}{\pi}\int_0^\infty \text{Re}[e^{-iux}\phi(u)]\,du\) | Direct, exact in principle |
| Gil--Pelaez | \(F(x) = \frac{1}{2} - \frac{1}{\pi}\int_0^\infty \text{Im}[\frac{e^{-iux}\phi(u)}{u}]\,du\) | CDF directly, better decay |
| COS reconstruction | \(\hat{f}_N(x) = \sum_{k=0}^{N-1}{}' A_k\cos(\cdots)\) | No integration, exponential convergence |
The COS method's cosine series reconstruction provides the most efficient density recovery for smooth distributions, requiring only \(N\) characteristic function evaluations and no numerical quadrature, which is why it has become the preferred approach for model validation and option pricing in practice.
Exercises¶
Exercise 1. Starting from the Fourier inversion formula \(f(x) = \frac{1}{2\pi}\int_{-\infty}^{\infty}e^{-iux}\phi(u)\,du\), use the conjugate symmetry \(\phi(-u) = \overline{\phi(u)}\) (for real-valued \(X\)) to derive the real-valued form \(f(x) = \frac{1}{\pi}\int_0^{\infty}\text{Re}[e^{-iux}\phi(u)]\,du\). Show each step of the simplification.
Solution to Exercise 1
Start from the full Fourier inversion formula:
Split the integral into negative and positive halves:
In the first integral, substitute \(u \to -u\) (so \(du \to -du\) and the limits flip):
Now apply the conjugate symmetry property. For a real-valued random variable \(X\), we have \(\phi(-u) = \overline{\phi(u)}\). Therefore:
where the last step uses the fact that complex conjugation passes through the integral and \(\overline{e^{iux}\overline{\phi(u)}} = e^{-iux}\phi(u)\).
Combining both halves:
Since \(z + \bar{z} = 2\,\text{Re}[z]\) for any complex number \(z\):
The last step moves Re inside the integral because the real part of an integral of a function equals the integral of the real part (by linearity).
Exercise 2. Derive the Gil-Pelaez formula \(F(x) = \frac{1}{2} - \frac{1}{\pi}\int_0^{\infty}\text{Im}[\frac{e^{-iux}\phi(u)}{u}]\,du\) starting from \(F(x) = \int_{-\infty}^{x}f(y)\,dy\). Explain why the integrand decays as \(O(|\phi(u)|/u)\) and why this improved decay (compared to the density inversion integrand) makes the Gil-Pelaez integral easier to evaluate numerically.
Solution to Exercise 2
Start from \(F(x) = \int_{-\infty}^{x} f(y)\,dy\) and substitute the Fourier inversion of \(f\):
Exchange the order of integration (justified for \(\phi \in L^1\) or via regularization):
The inner integral evaluates (in the distributional sense, using a convergence factor \(e^{-\varepsilon|y|}\)) to:
Substituting:
since \(\phi(0) = 1\). Now analyze the symmetry of the integrand \(g(u) = e^{-iux}\phi(u)/(iu)\). Using \(\phi(-u) = \overline{\phi(u)}\):
The real part of \(g(u)\) is odd: \(\text{Re}[g(-u)] = -\text{Re}[g(u)]\), so it integrates to zero over \(\mathbb{R}\). The imaginary part is even: \(\text{Im}[g(-u)] = \text{Im}[g(u)]\). Therefore:
Substituting back:
Why the integrand decays faster: The density inversion integrand is \(\text{Re}[e^{-iux}\phi(u)]\), which has magnitude \(O(|\phi(u)|)\). The Gil--Pelaez integrand is \(\text{Im}[e^{-iux}\phi(u)/u]\), which has magnitude \(O(|\phi(u)|/u)\). The additional factor of \(1/u\) accelerates the decay for large \(u\), meaning the integral converges with fewer quadrature points and a smaller truncation limit \(U\).
Exercise 3. For the standard normal distribution with \(\phi(u) = e^{-u^2/2}\), evaluate the Gil-Pelaez integrand \(\text{Im}[e^{-iux}\phi(u)/u]\) at \(x = 0\) and simplify. Explain why \(F(0) = 1/2\) follows from the formula, and estimate the number of trapezoidal rule quadrature points needed on \([0, 20]\) to achieve \(10^{-10}\) accuracy.
Solution to Exercise 3
At \(x = 0\) with \(\phi(u) = e^{-u^2/2}\), the Gil--Pelaez integrand becomes:
Since \(e^{-u^2/2}/u\) is purely real for real \(u > 0\), its imaginary part is zero:
The Gil--Pelaez formula then gives:
This is consistent with \(F(0) = \Phi(0) = 1/2\) by the symmetry of \(N(0,1)\) about zero.
Quadrature estimate: For general \(x\), the integrand is \(e^{-u^2/2}\sin(ux)/u\), which is bounded by \(|e^{-u^2/2}\sin(ux)/u| \leq e^{-u^2/2}|x|\) near \(u = 0\) (using \(|\sin(ux)/u| \leq |x|\)) and decays as \(e^{-u^2/2}/u\) for large \(u\). On \([0, 20]\), the integrand at \(u = 20\) has magnitude \(\leq e^{-200}/20 \approx 10^{-88}\), so the truncation error from \([20, \infty)\) is negligible. For the trapezoidal rule with step size \(h = 20/M\), the error for this smooth, rapidly decaying integrand is \(O(e^{-c/h^2})\) (super-algebraic convergence for Gaussian decay). With \(M \approx 50\)--\(80\) points, the trapezoidal rule achieves \(10^{-10}\) accuracy; with \(M = 100\) points there is a comfortable margin.
Exercise 4. The COS density reconstruction uses \(\hat{f}_N(x) = \sum_{k=0}^{N-1}{}' A_k\cos(k\pi(x-a)/(b-a))\) with \(A_k\) computed from the characteristic function. For \(N(0,1)\) on \([-10, 10]\), compute the reconstruction error \(|\hat{f}_{64}(0) - f(0)|\) and \(|\hat{f}_{64}(3) - f(3)|\). Explain why the error at \(x = 3\) is comparable to the error at \(x = 0\) despite the density being much smaller there.
Solution to Exercise 4
For \(N(0, 1)\) on \([a, b] = [-10, 10]\), the coefficients are:
Note \(e^{ik\pi/2} = i^k\), so \(\text{Re}[i^k] = \cos(k\pi/2)\), which equals \(1, 0, -1, 0\) for \(k = 0, 1, 2, 3, \ldots\)
At \(x = 0\), the cosine basis functions are \(\cos(k\pi(0 - (-10))/20) = \cos(k\pi/2)\), giving:
Only even \(k\) contribute (since \(\cos(k\pi/2) = 0\) for odd \(k\), and the coefficients \(F_k = 0\) for odd \(k\) by symmetry). The reconstruction error is the tail of the series:
Since \(|F_k| \leq \frac{1}{10}e^{-k^2\pi^2/800}\), for \(k = 64\): \(|F_{64}| \leq \frac{1}{10}e^{-64^2\pi^2/800} = \frac{1}{10}e^{-50.5} \approx 10^{-23}\). The error at \(x = 0\) is bounded by the geometric-like tail starting from this negligible value, so \(|\hat{f}_{64}(0) - f(0)| < 10^{-15}\).
At \(x = 3\), the cosine basis functions are \(\cos(k\pi(3+10)/20) = \cos(13k\pi/20)\), and the error is:
The same coefficient bound applies: \(|F_k| \leq \frac{1}{10}e^{-k^2\pi^2/800}\), and \(|\cos(13k\pi/20)| \leq 1\). Therefore the error is bounded by the same tail sum regardless of \(x\). The error is comparable at \(x = 3\) and \(x = 0\) because the error depends on the truncated coefficient magnitudes (which are \(x\)-independent), not on the density value itself. The COS method approximates the entire density function uniformly, and the cosine coefficients decay based on the global smoothness of \(f\), not on the local value of \(f(x)\).
Exercise 5. Compare the three density inversion approaches (Fourier inversion, Gil-Pelaez, COS reconstruction) for the Heston model. For each method, list the required inputs, the computational cost to evaluate the density at a single point, and the main source of numerical error. Which method would you choose for (a) evaluating \(f(x)\) at a single point, (b) plotting \(f(x)\) on a grid of 1000 points?
Solution to Exercise 5
Fourier inversion integral:
- Inputs: Characteristic function \(\phi(u)\), evaluation point \(x\), truncation limit \(U\), number of quadrature points \(M\).
- Cost per point: \(O(M)\) evaluations of \(\phi\) (one per quadrature node), each combined with \(e^{-iux}\).
- Main error source: Truncation of the integral at \(u = U\) (missing high-frequency content) and quadrature error. For oscillatory integrands at large \(|x|\), accuracy degrades.
Gil--Pelaez:
- Inputs: Characteristic function \(\phi(u)\), evaluation point \(x\), truncation limit \(U\), number of quadrature points \(M\).
- Cost per point: \(O(M)\) evaluations of \(\phi\), similar to Fourier inversion.
- Main error source: Same truncation and quadrature errors, but the integrand decays as \(O(|\phi(u)|/u)\), so fewer points suffice. Note: this gives the CDF, not the density directly.
COS reconstruction:
- Inputs: Characteristic function \(\phi\), truncation interval \([a, b]\), number of terms \(N\).
- Cost per point: \(O(N)\) for the setup (computing \(F_k\)), then \(O(N)\) per evaluation point (summing the cosine series).
- Main error source: Series truncation error (using \(N\) terms instead of infinitely many) and domain truncation error.
(a) Single-point evaluation: Fourier inversion or Gil--Pelaez is most natural, since the COS method requires choosing \([a, b]\) and the setup cost of \(N\) CF evaluations is comparable to the \(M\) evaluations needed for direct quadrature. Gil--Pelaez is preferred if the CDF is needed.
(b) Grid of 1000 points: The COS method dominates. The \(N\) CF evaluations are performed once, and then the cosine series is evaluated at all 1000 points for \(O(1000 \cdot N)\) arithmetic operations with no additional CF evaluations. By contrast, Fourier inversion requires \(O(1000 \cdot M)\) CF evaluations (one full quadrature per point). With \(N = 128\) and \(M = 500\), the COS method needs 128 CF evaluations vs. 500,000 for Fourier inversion---a factor of nearly 4000.
Exercise 6. The COS reconstruction can produce negative density values near the boundaries of \([a, b]\), which is a truncation artifact. Explain why this occurs in terms of the Gibbs phenomenon for truncated cosine series. Propose two strategies to mitigate negative density values and discuss the tradeoff each introduces.
Solution to Exercise 6
Why negative values occur: The COS reconstruction is a truncated cosine series \(\hat{f}_N(x) = \sum_{k=0}^{N-1}{}' F_k\cos(k\pi(x-a)/(b-a))\). Like all truncated Fourier series, it suffers from the Gibbs phenomenon when the function being approximated has a discontinuity or is effectively discontinuous at the boundary. Even though \(f\) is continuous, the truncation to \([a, b]\) creates a mismatch: \(f(a) > 0\) and \(f(b) > 0\) in general, but the cosine series implicitly assumes even periodic extension. The truncated series overshoots and undershoots near points where the function changes rapidly. With finitely many terms, these oscillations (Gibbs ripples) cannot fully cancel, and the undershoot can push the reconstruction below zero.
Strategy 1: Widen the truncation interval. Choose \([a, b]\) wide enough that \(f(a)\) and \(f(b)\) are essentially zero (e.g., \(< 10^{-15}\)). This eliminates the effective discontinuity at the boundary, removing the source of Gibbs oscillations. The tradeoff is that a wider interval increases \(b - a\), which slows the convergence rate of the cosine series (\(\varepsilon_2 \sim e^{-\beta N\pi/(b-a)}\)), requiring more terms \(N\) for the same accuracy.
Strategy 2: Apply a spectral filter (e.g., Fejér or Lanczos sigma factors). Multiply the \(k\)-th coefficient by a damping factor such as \(\sigma_k = \sin(k\pi/N)/(k\pi/N)\) (Lanczos) or use the Cesàro mean (Fejér kernel). This smooths out the Gibbs oscillations and ensures non-negativity or near-non-negativity. The tradeoff is that filtering reduces the effective resolution of the series: the convergence rate degrades from exponential to algebraic (typically \(O(1/N)\) for Fejér summation), so more terms may be needed to achieve the same accuracy in the interior of \([a, b]\) where the unfiltered series was already accurate.
